Checking the Fuel Delivery System

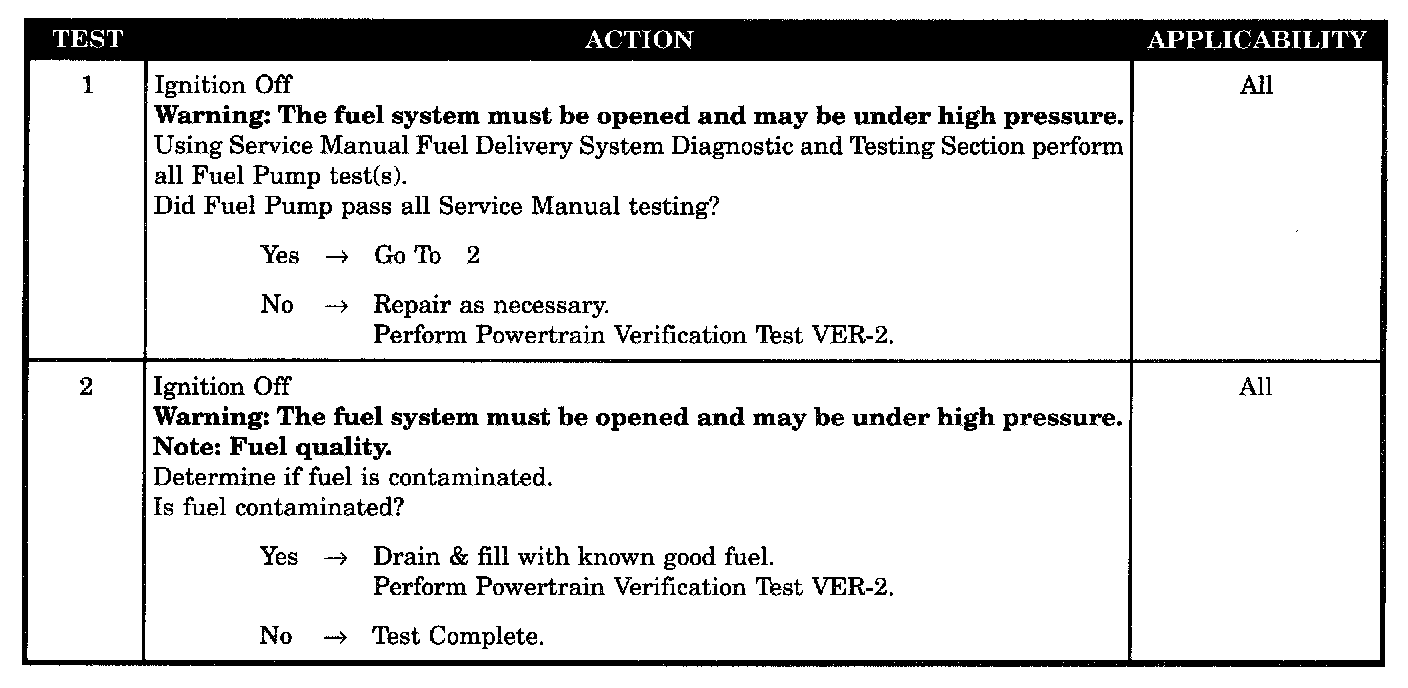

Tests 1 - 2:





SYMPTOM
CHECKING THE FUEL DELIVERY

POSSIBLE CAUSES
- Fuel contaminated
- Fuel delivery
