System Specifications

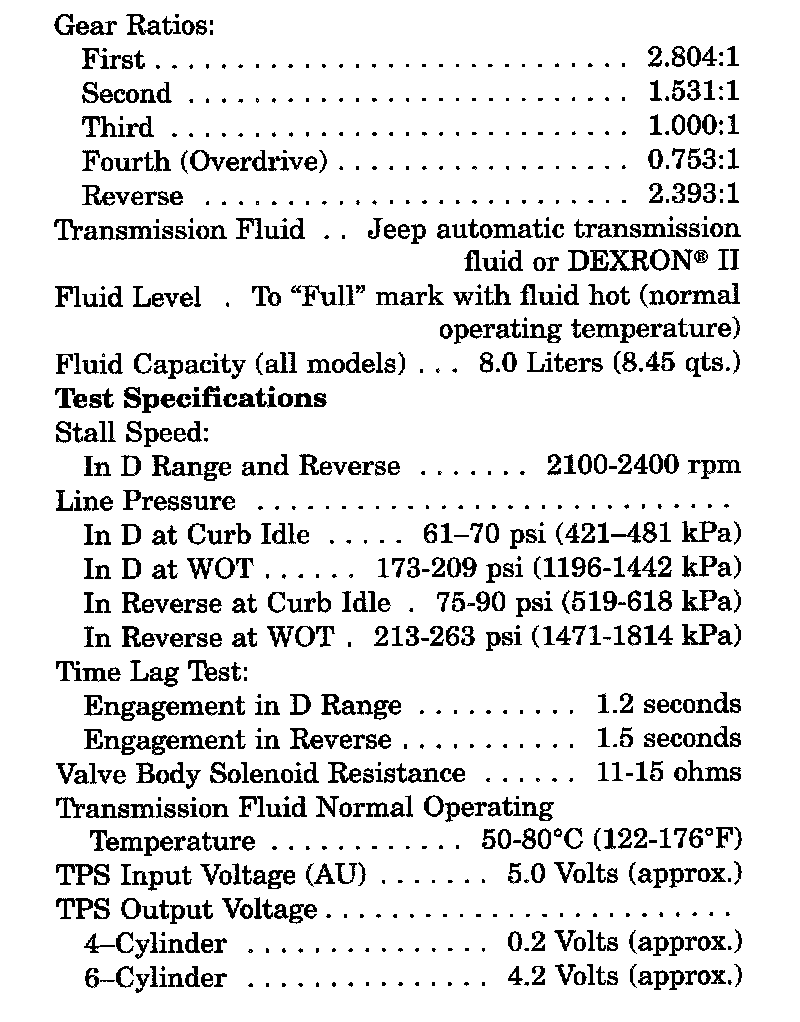

General:

AW-4 Clutch Disc And Plate Thickness:

General:

Bushing Inside Diameter (Maximum):

piston Stroke Length:

end Play And Clearance:

Overdrive Brake Retainer Selection:

Direct Clutch Retainer Selection:

Overdrive Clutch Retainer Selection:

Second Coast Brake Piston Rod Selection:

Forward Clutch Retainer Selection:

First-Reverse Brake Clearance Selection:

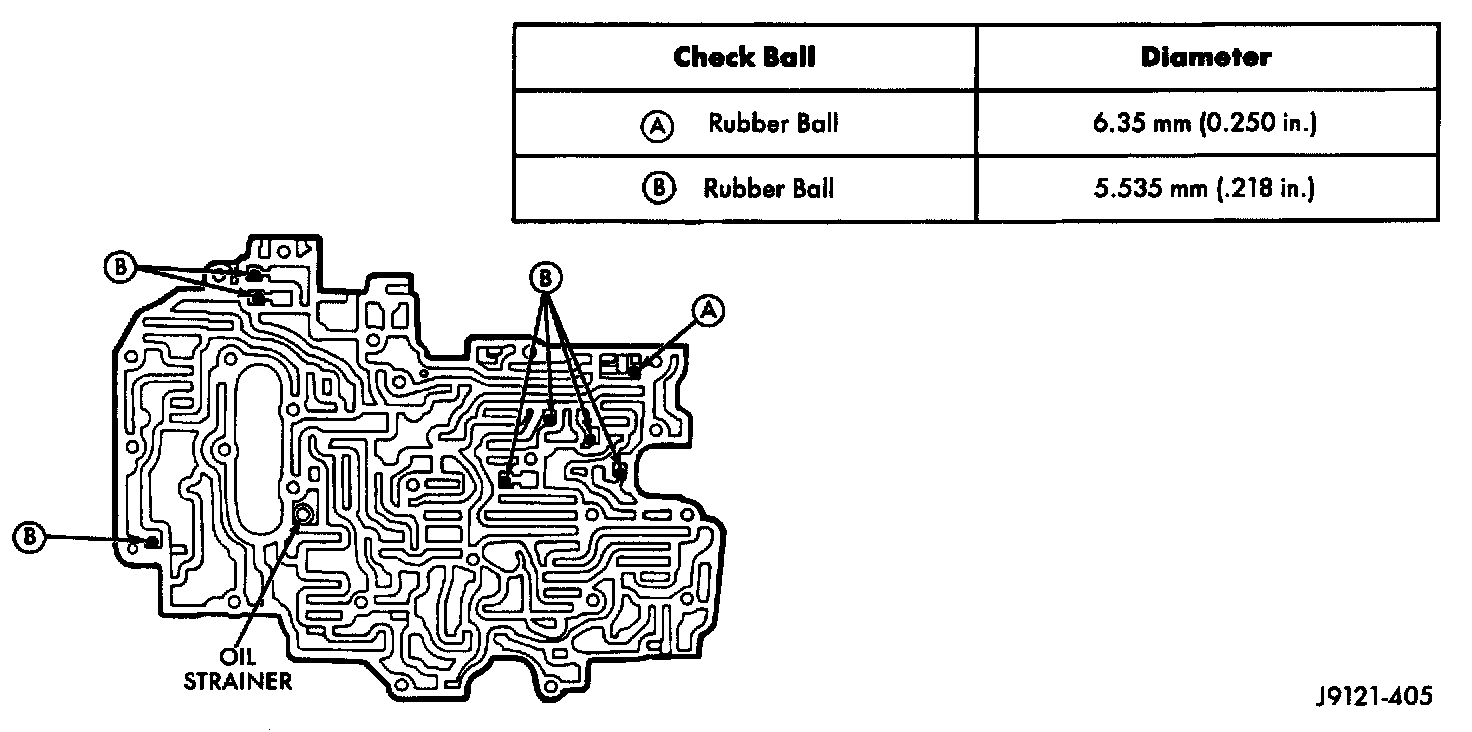

AW-4 Valve Body Ball Dimensions:

Clutch And Brake Pack Requirements:

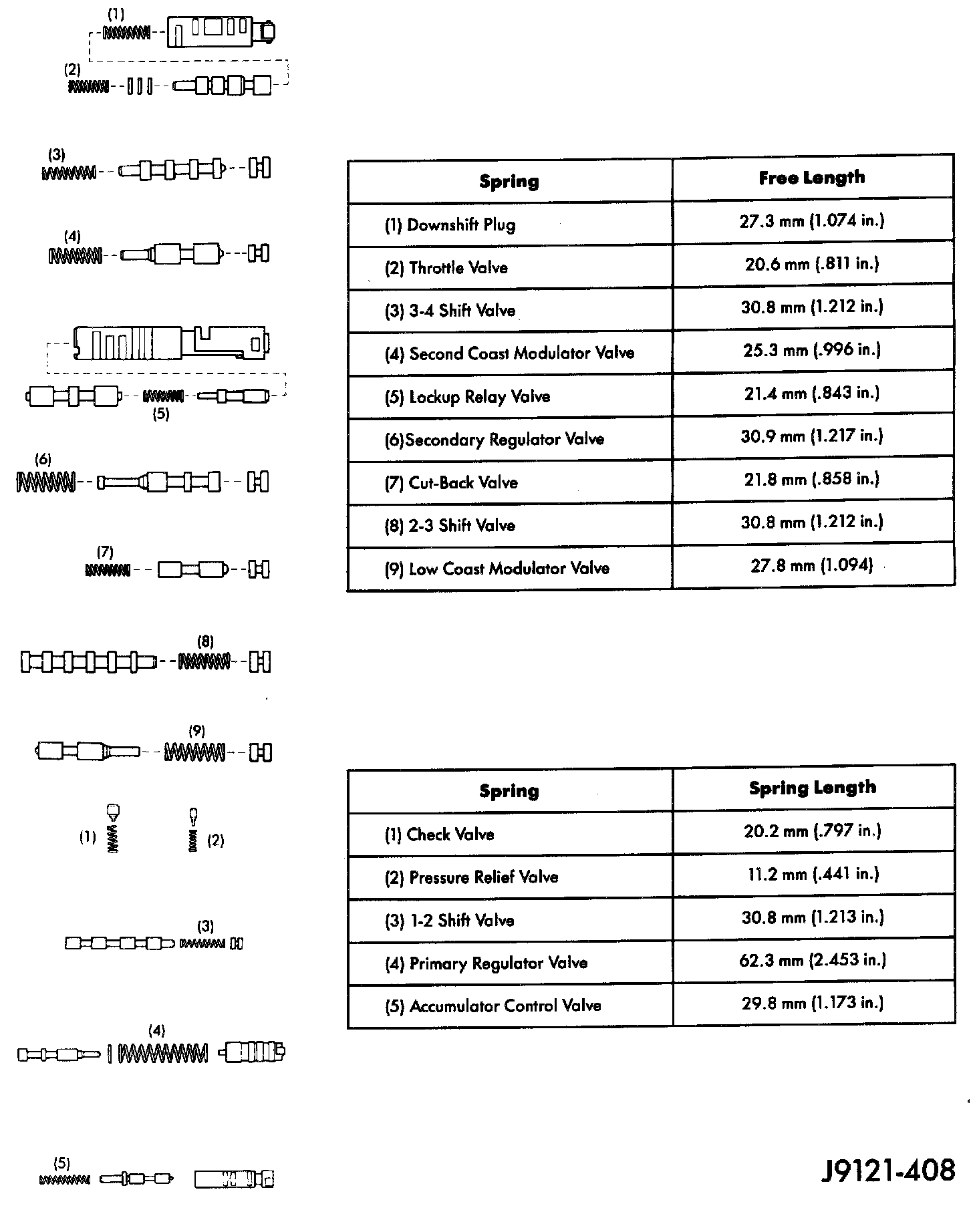

Valve And Spring Identification:

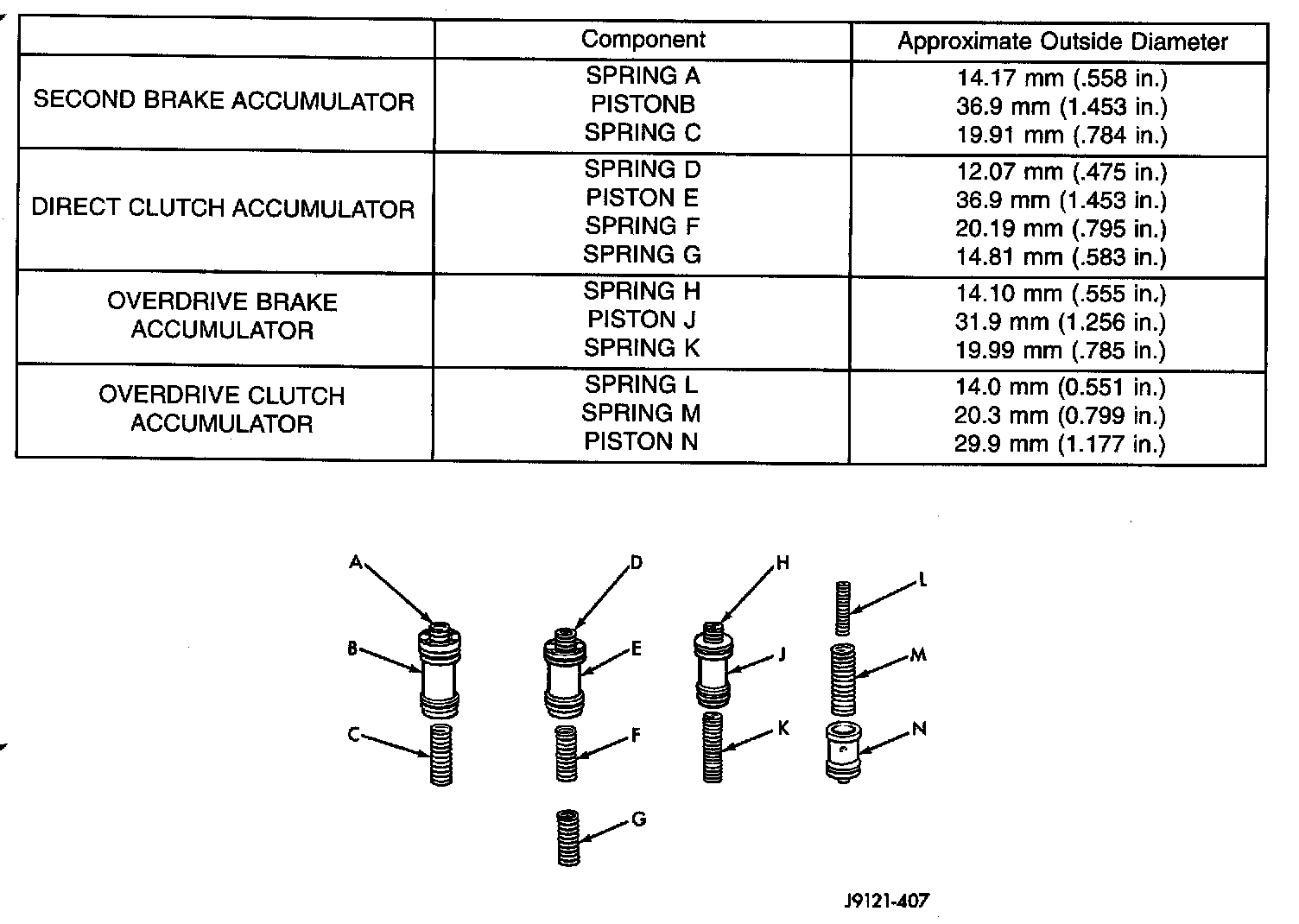

Accumulator Component Identification:

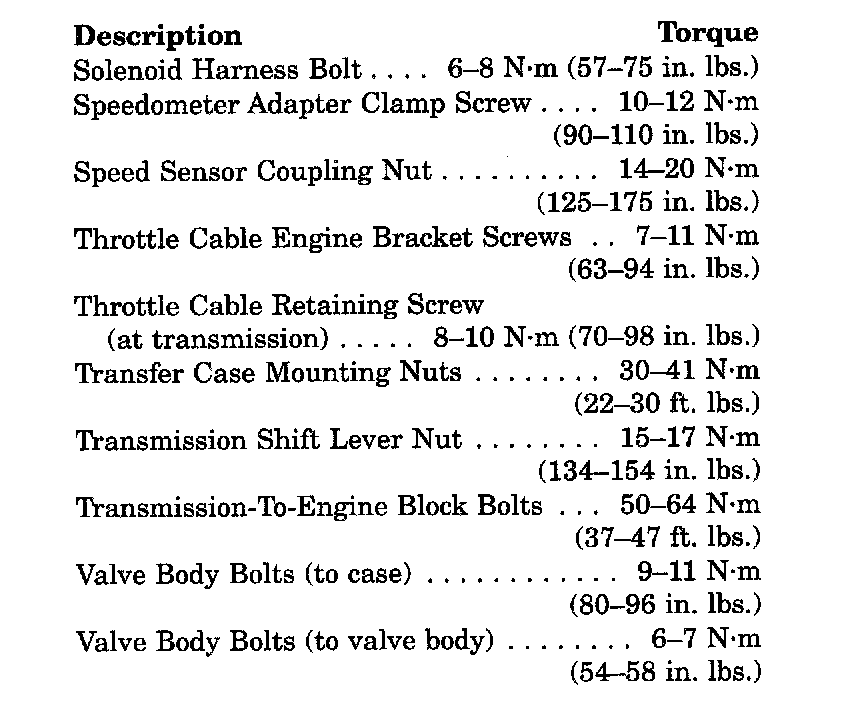

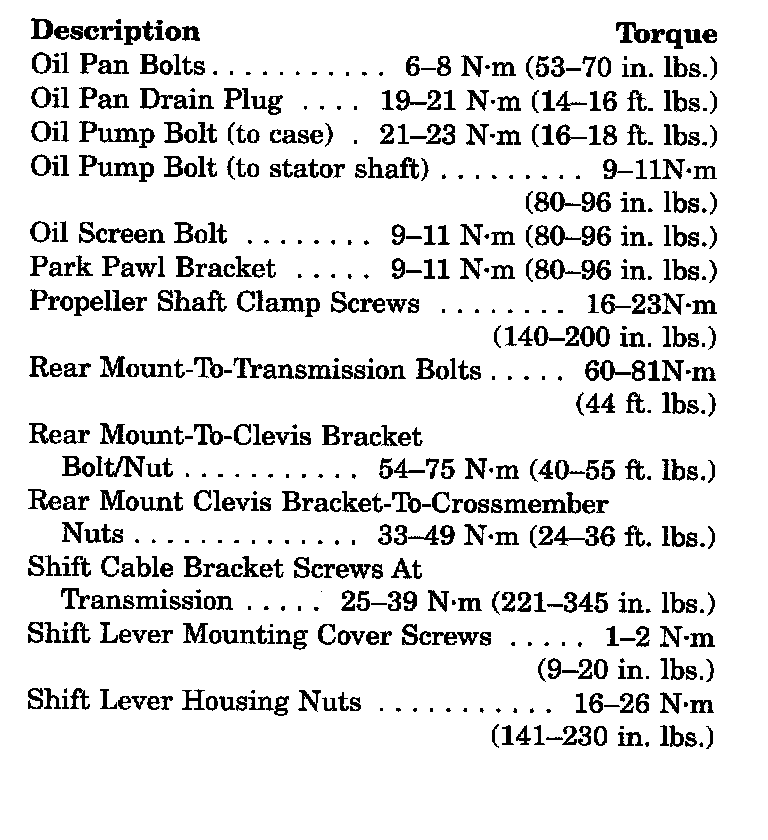

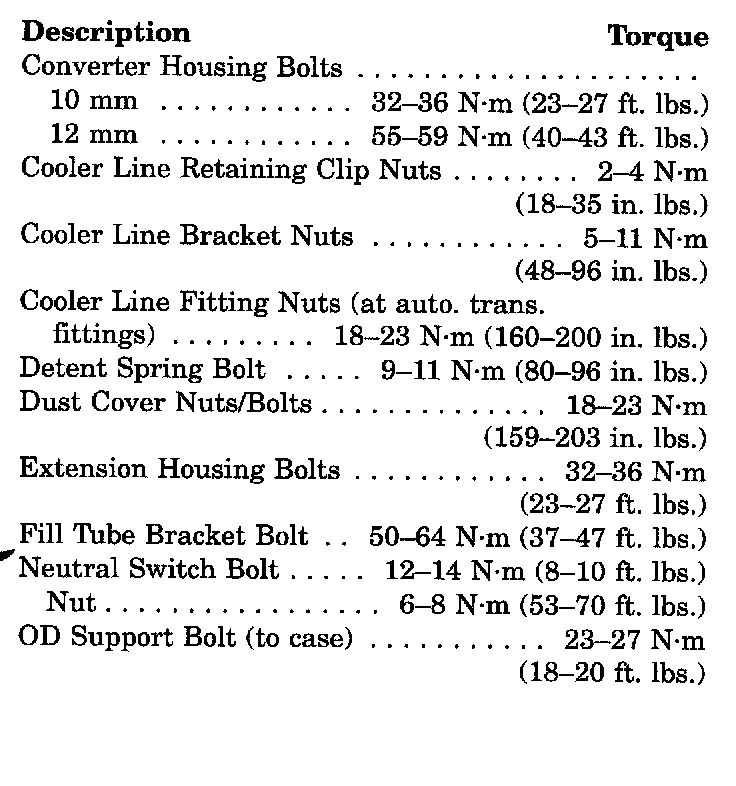

Torque:

Torque:

Torque:
