LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Jeep
>>
2000
>>
Cherokee 4WD L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Locations
>>
Connector Locations
>>
LHD
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
LHD

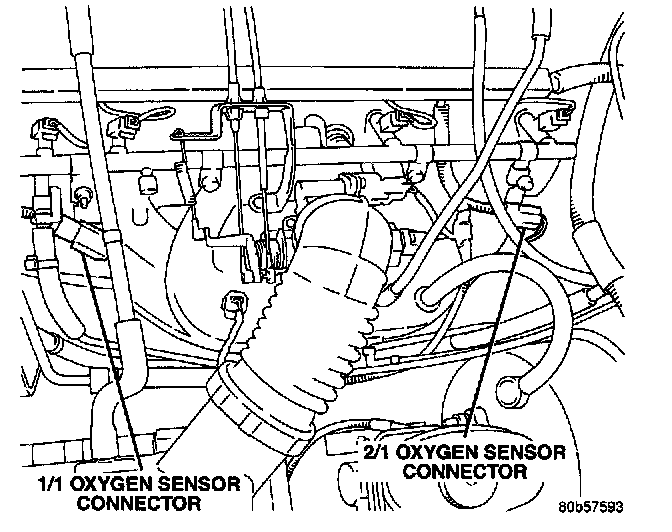

Upstream LHD:

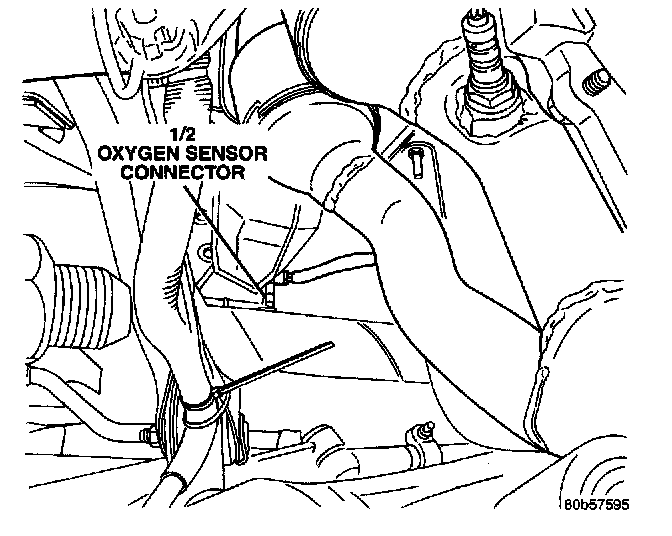

Downstream 1/2:
Downstream 2/2:
