Driver Door Module (DDM) Switch

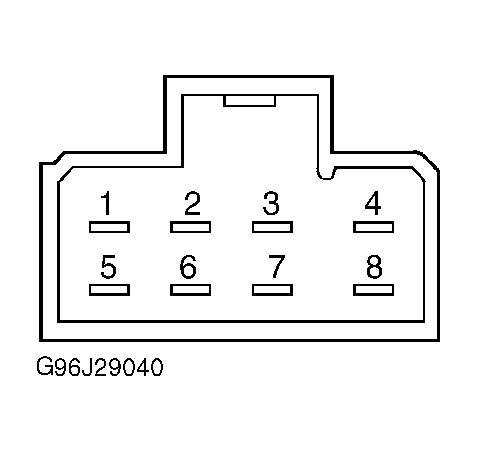

Remove DDM. See DRIVER DOOR MODULE under REMOVAL & INSTALLATION. Place mirror select switch in left or right mirror mode. Continuity should exist between specified DDM connector C2 terminals when each control button is depressed. See DDM POWER MIRROR SWITCH CONTINUITY TEST table. See Fig 1 . If continuity is not as specified, replace DDM.
DDM POWER MIRROR SWITCH CONTINUITY TEST
| Switch Position | (1) Terminals No. | |||
|---|---|---|---|---|
| Left Mirror | ||||
| Up | 1 & 3; 2 & 5 | |||
| Down | 2 & 3; 1 & 5 | |||
| Right | 3 & 6; 2 & 5 | |||
| Left | 2 & 3; 5 & 6 | |||
| Right Mirror | ||||
| Up | 3 & 7; 2 & 5 | |||
| Down | 2 & 3; 5 & 7 | |||
| Right | 3 & 4; 2 & 5 | |||
| Left | 2 & 3; 4 & 5 | |||
|
||||
