Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Control Module | Under center console. |

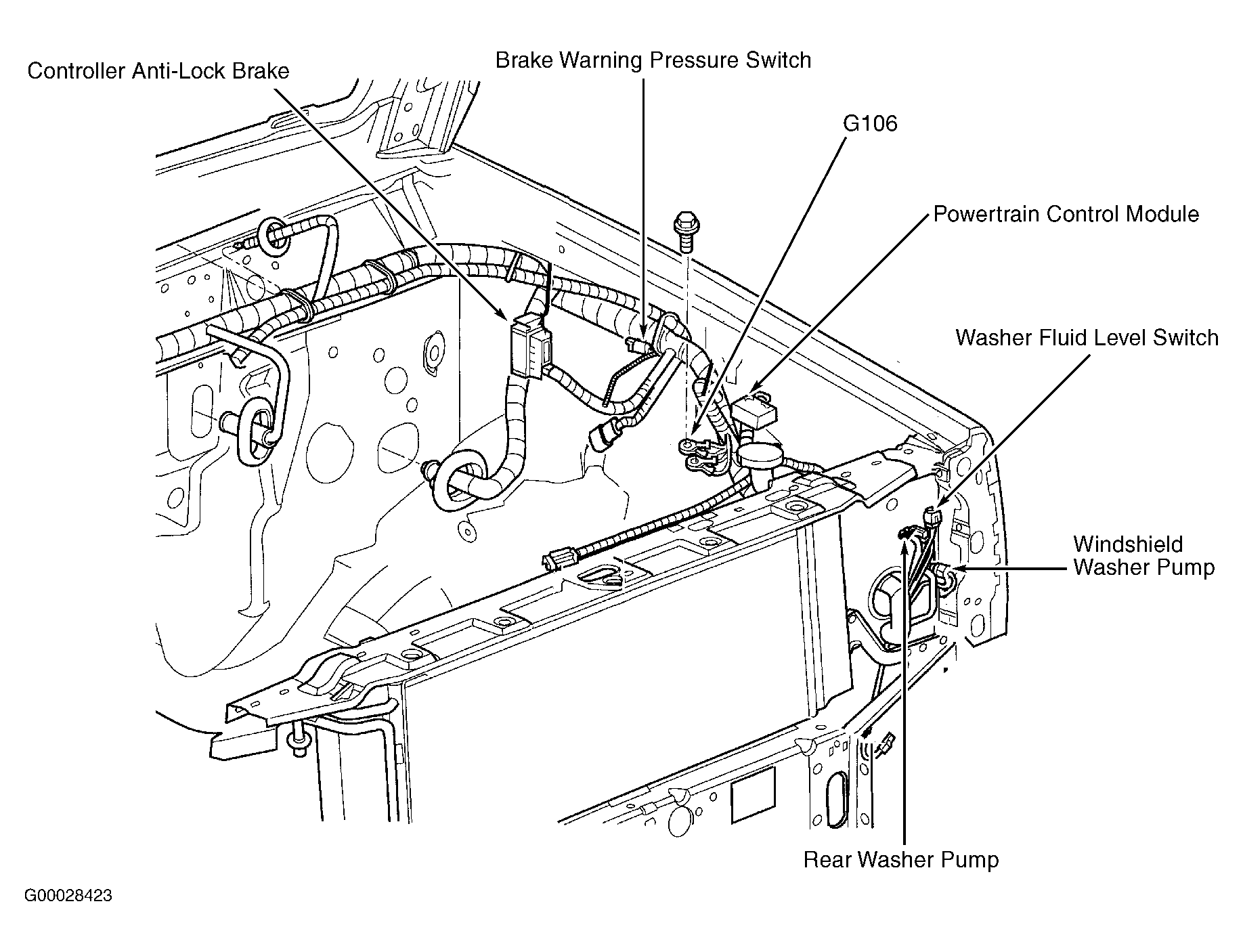

| Controller Anti-Lock Brake | On hydraulic control unit. See Figure. |
| Daytime Running Lamp Module | In right rear of engine compartment, near firewall. |
| Fuel Pump Module | On fuel tank. |
| Headlamp Delay Module | Behind left side of dash. |
| Hydraulic Control Unit | Near brake master cylinder. |
| Powertrain Control Module | On left fender side shield. See Figure. |
| Seat Heat Interface Module | Under driver's seat. |
| Sentry Key Immobilizer Module (SKIM) | On right side of steering column, next to key cylinder. |
| Transmission Control Module (4.0L) | Under left side of dash, on finish panel. |
