Complete Engine Specifications

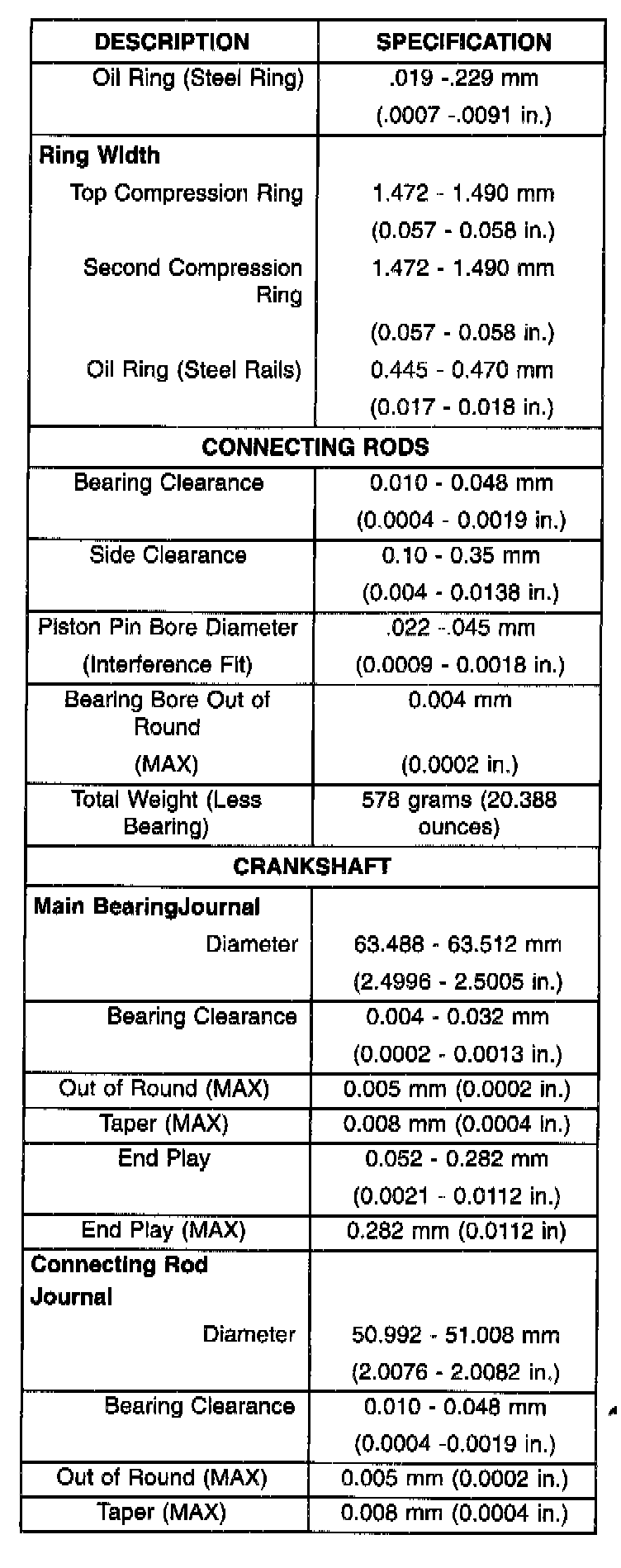

Part 1 of 6:

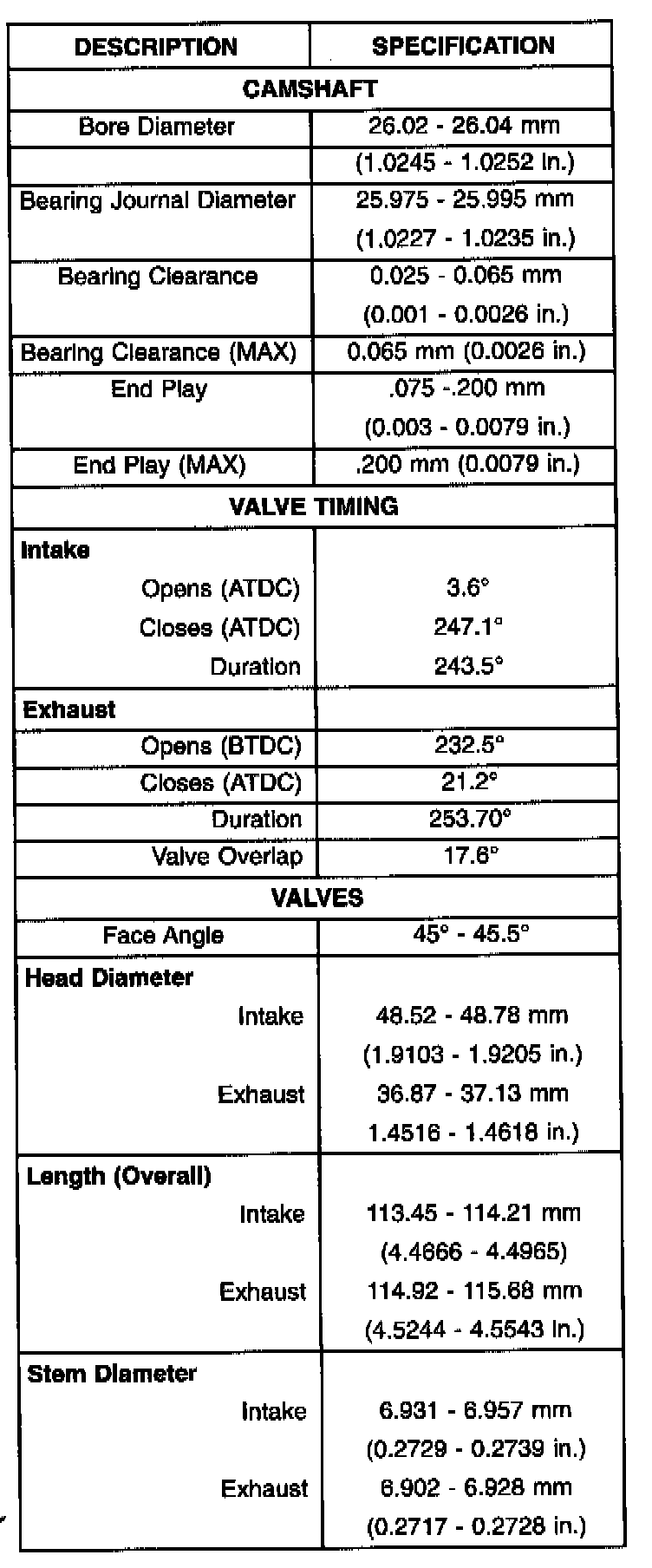

Part 2 of 6:

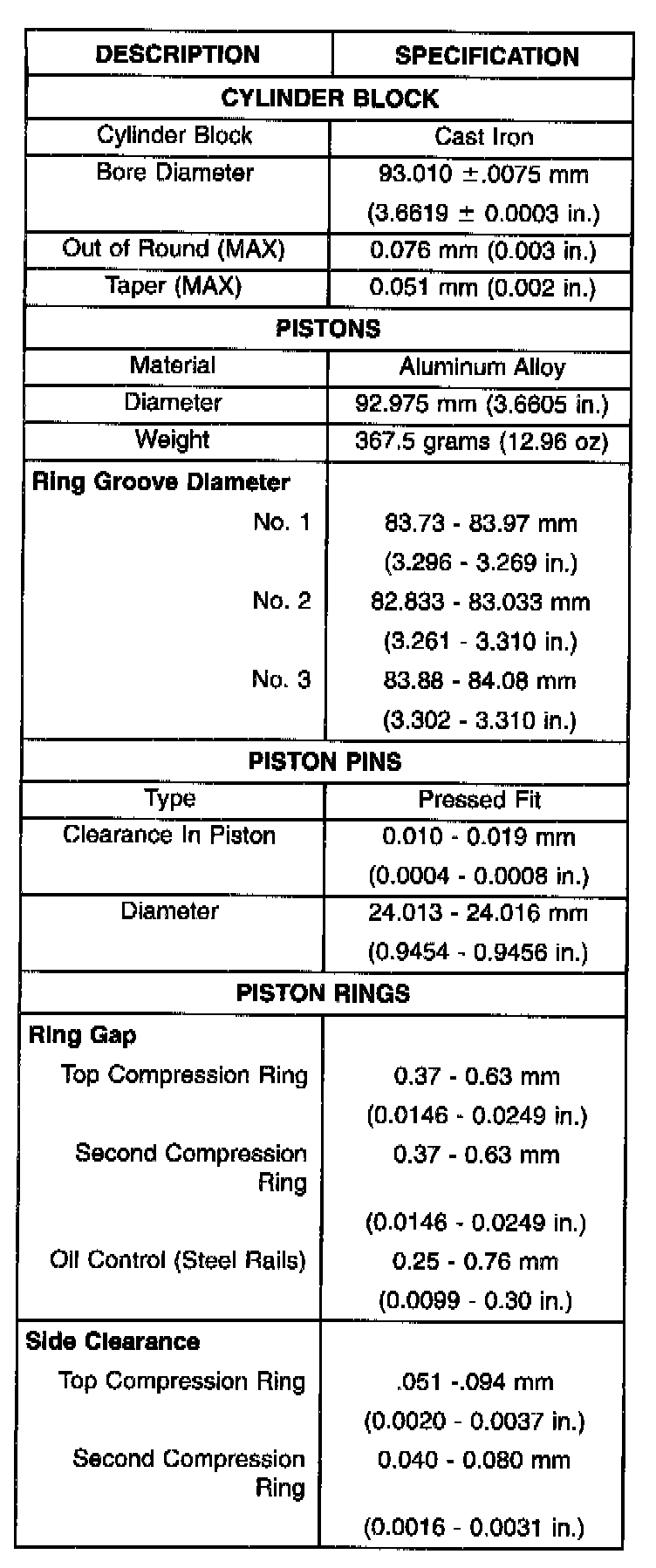

Part 3 of 6:

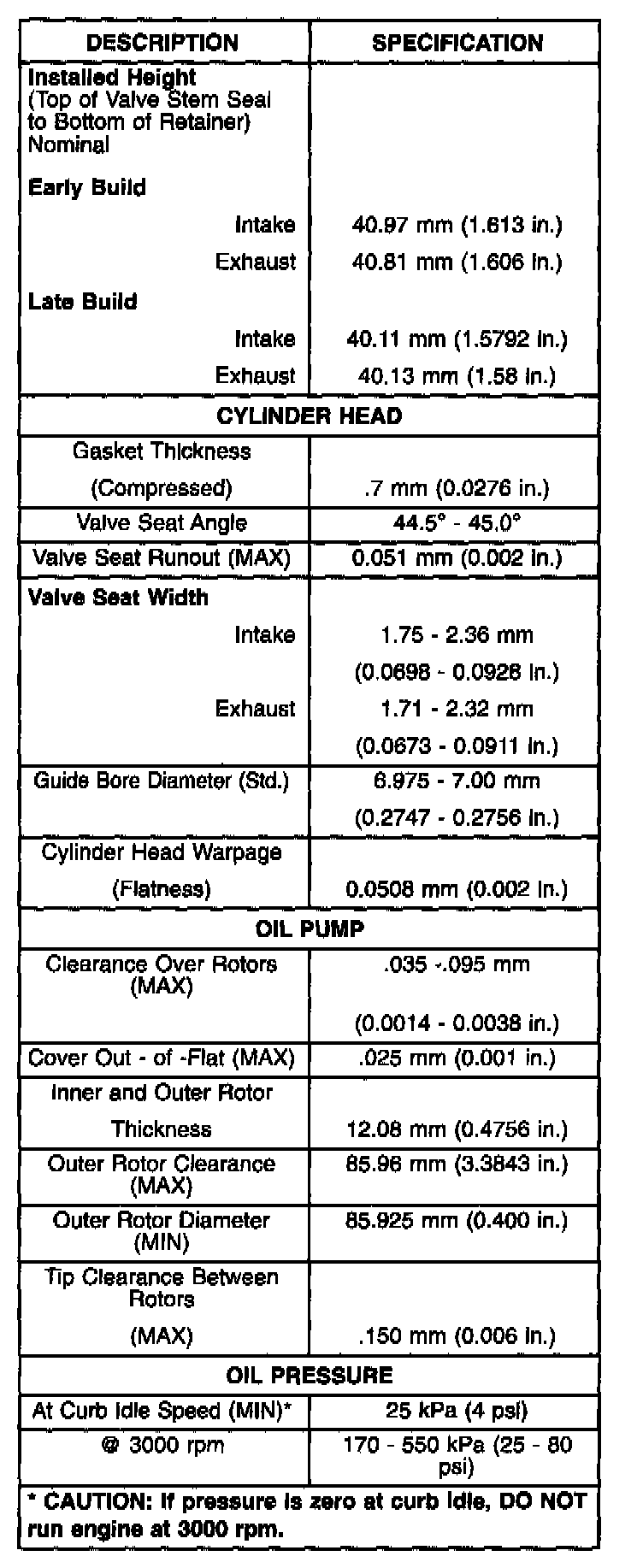

Part 4 of 6:

Part 5 of 6:

Part 6 of 6:

Dimensional Specifications

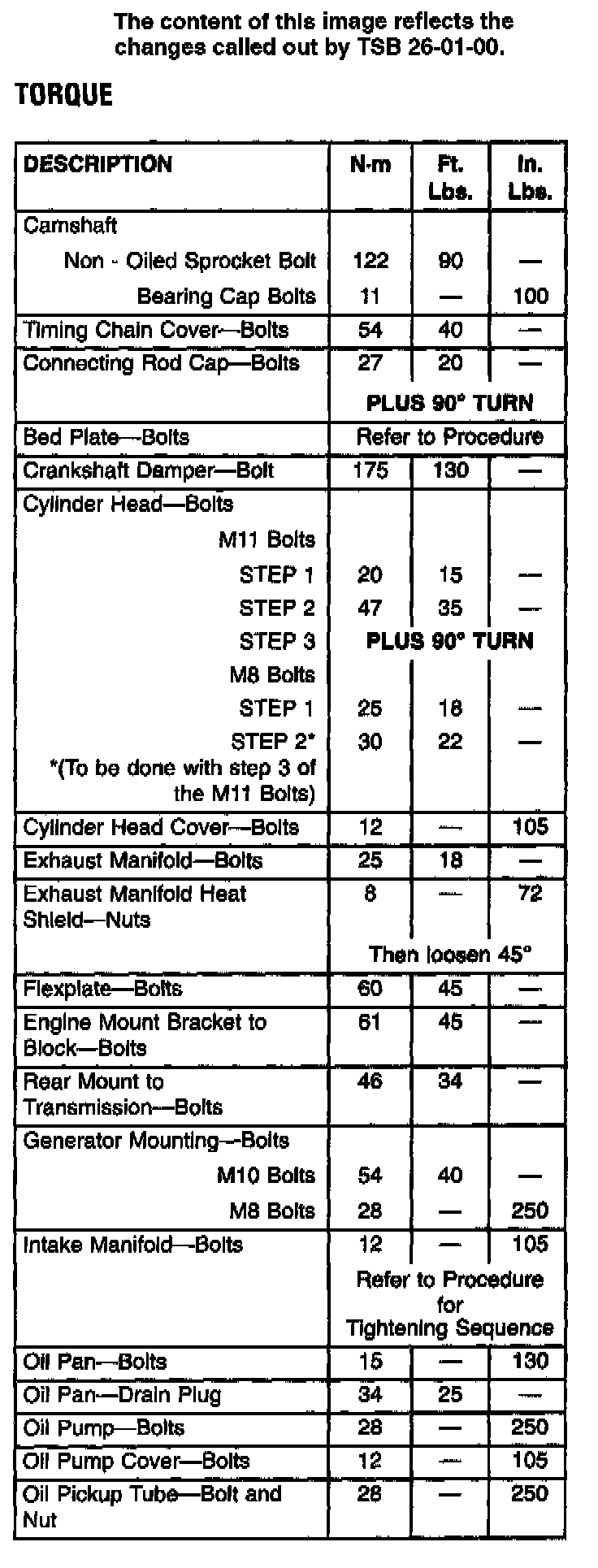

Torque Specifications






Main bearing Bolt Torque

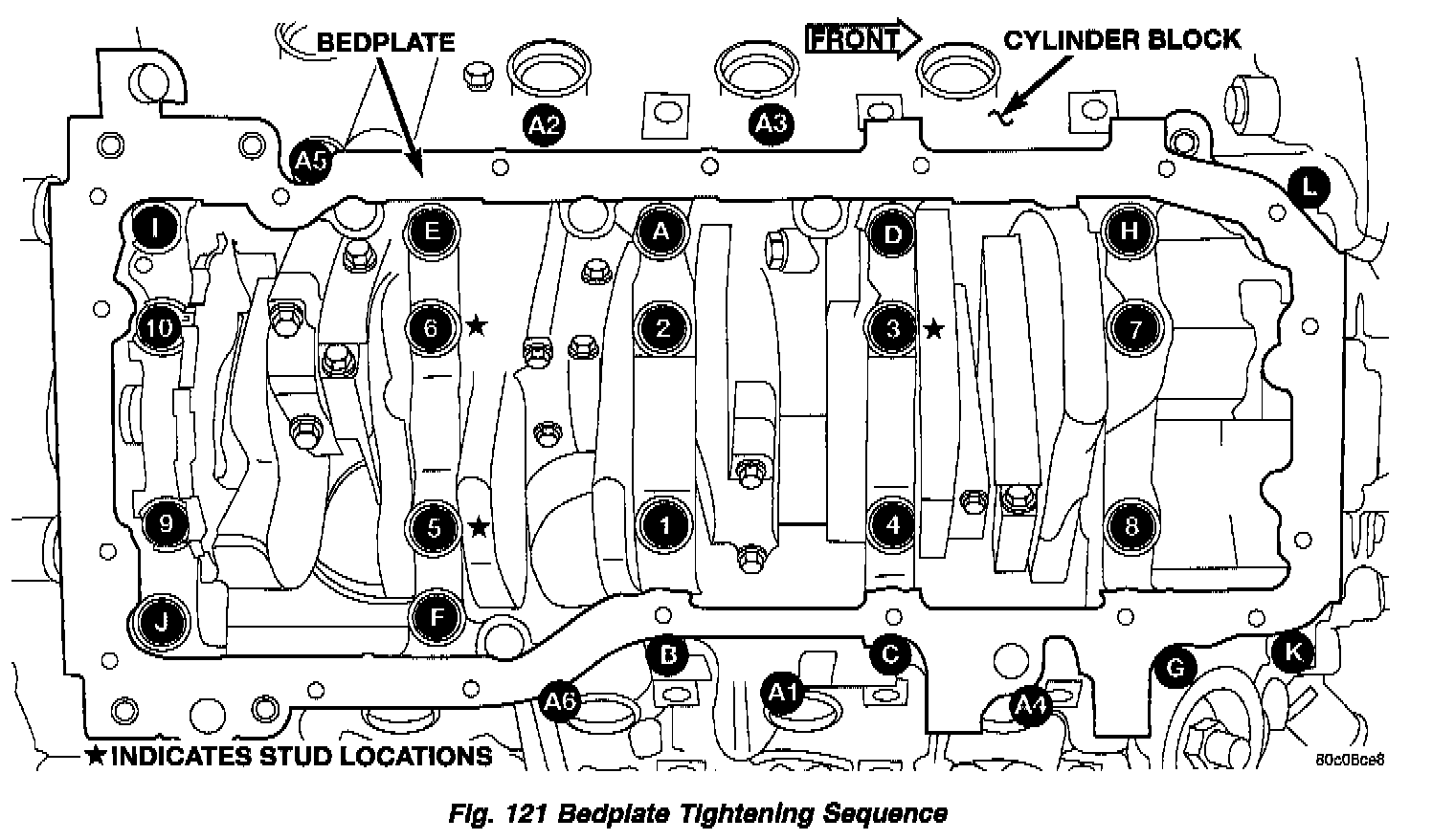

Install the bedplate retaining bolts, making sure to place the stud bolts in the correct location, Torque the bolts in the sequence shown.

- Tighten bolts A - L to 54 Nm (40 ft. lbs.)
- Tighten bolts 1-10 to 2.8 Nm (25 in. lbs.)
- Turn bolts 1-10 an additional 90°.
- Tighten bolts A1 - A6 to 27 Nm (20 ft. lbs.)
