Cylinder Head

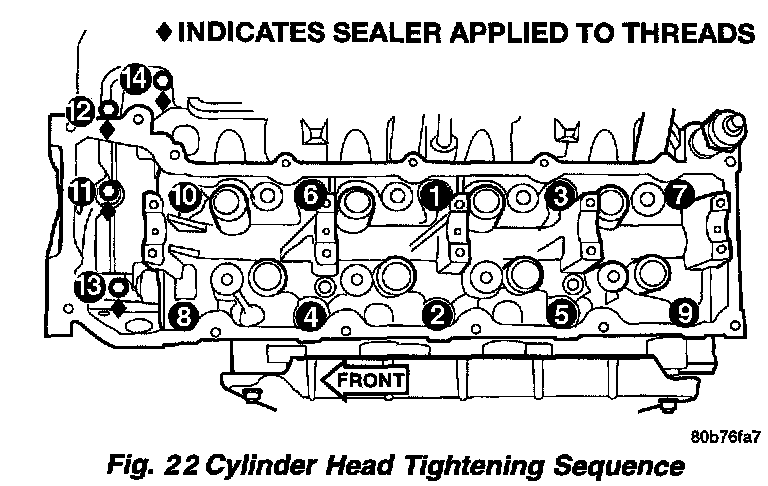

Left Side Cylinder Head

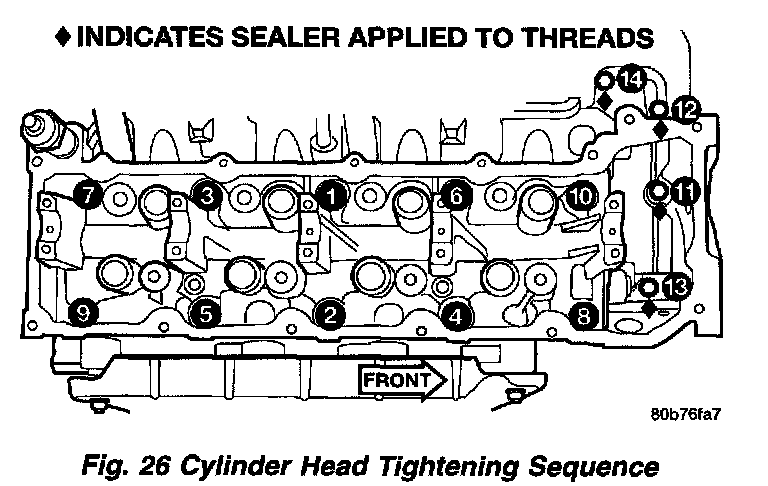

Right Side Cylinder Head


Tighten the bolts in sequence using the following steps and torque values:
- Step 1: Tighten bolts 1 - 10 to 20 Nm (15 ft. lbs.).
- Step 2: Tighten bolts 1 - 10 to 47 Nm (35 ft. lbs.).
Tighten bolts 11 - 14 to 25 Nm (18 ft. lbs.).
- Step 3: Tighten bolts 1 - 10 an additional 90 °.
Tighten bolts 11 - 14 to 30 Nm (22 ft. lbs.).
