Door Module

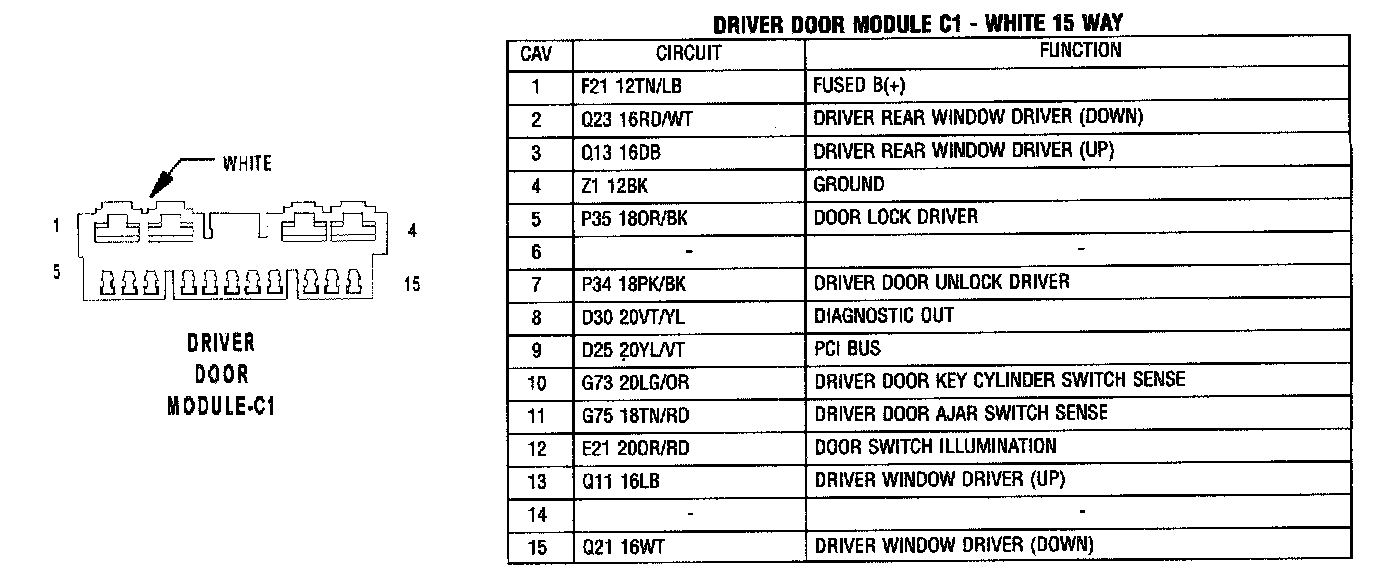

Driver Door Module - C1:

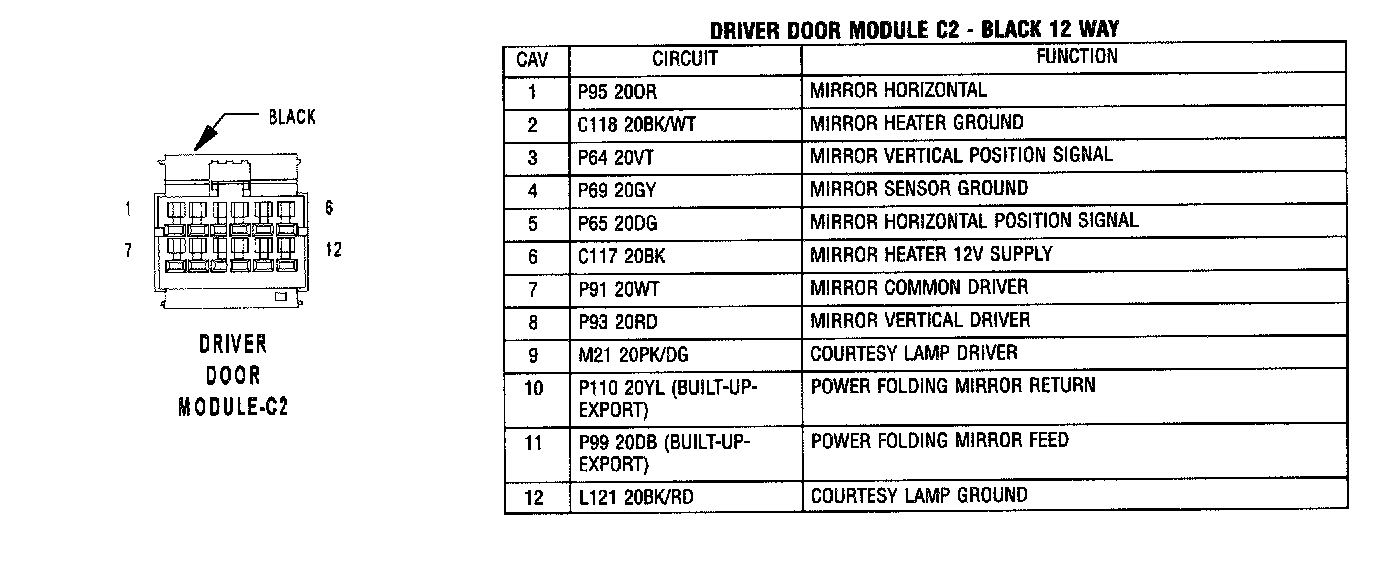

Driver Door Module - C2:




Driver Door Module - C3:




Passenger Door Module - C1:




Passenger Door Module - C2:
