Connector Views

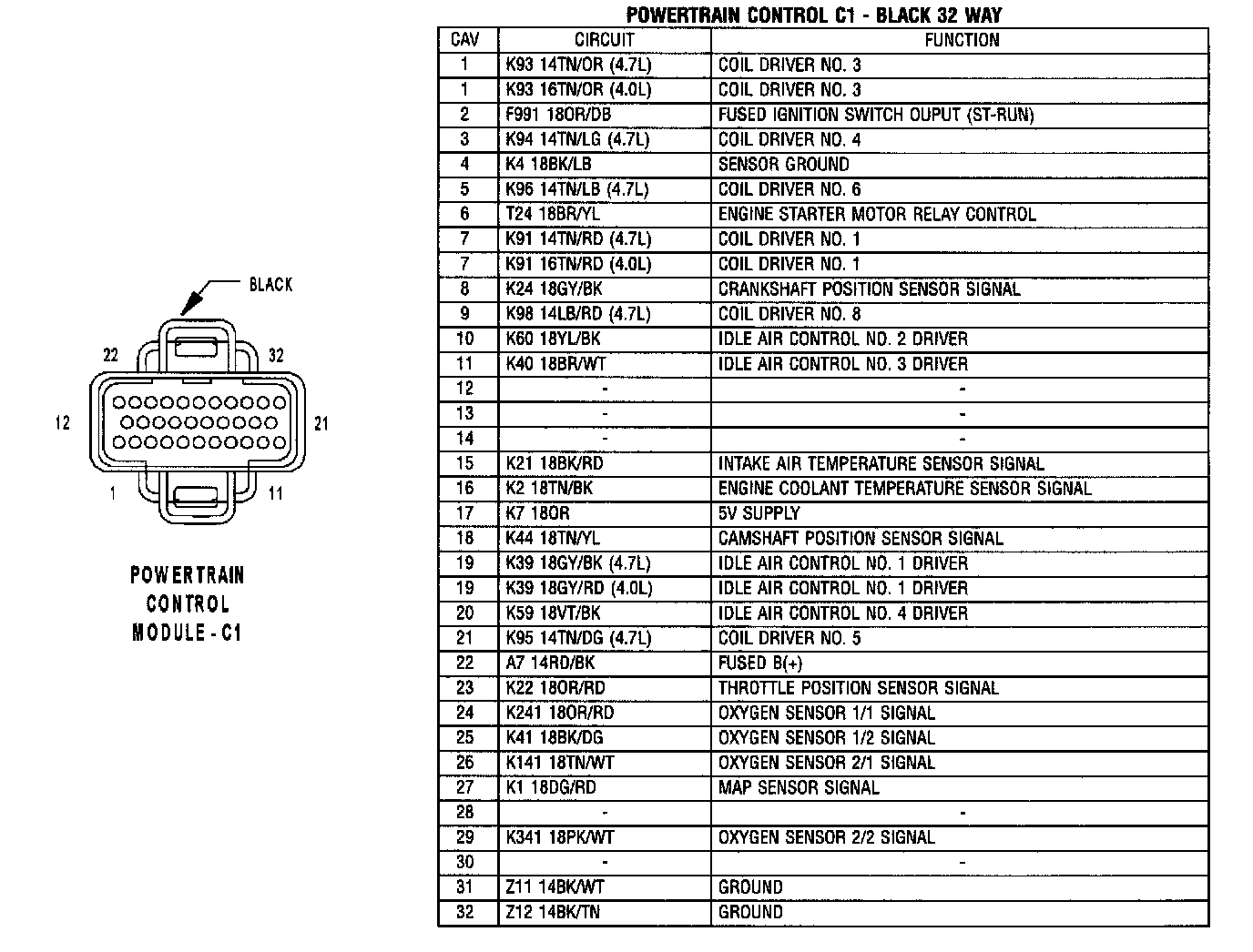

Powertrain Control C1 - Black 32 Way:

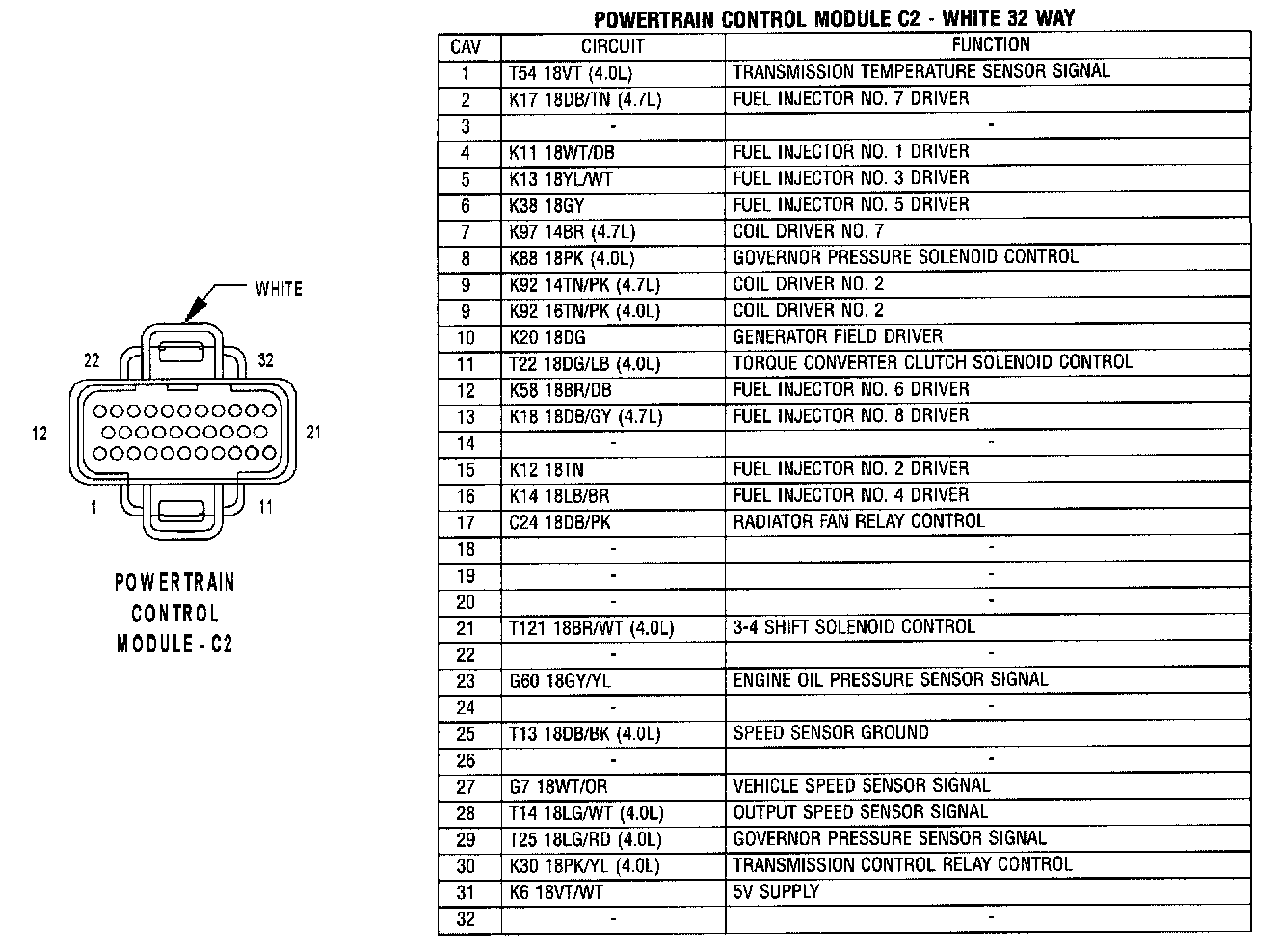

Powertrain Control Module C2 - White 32 Way:

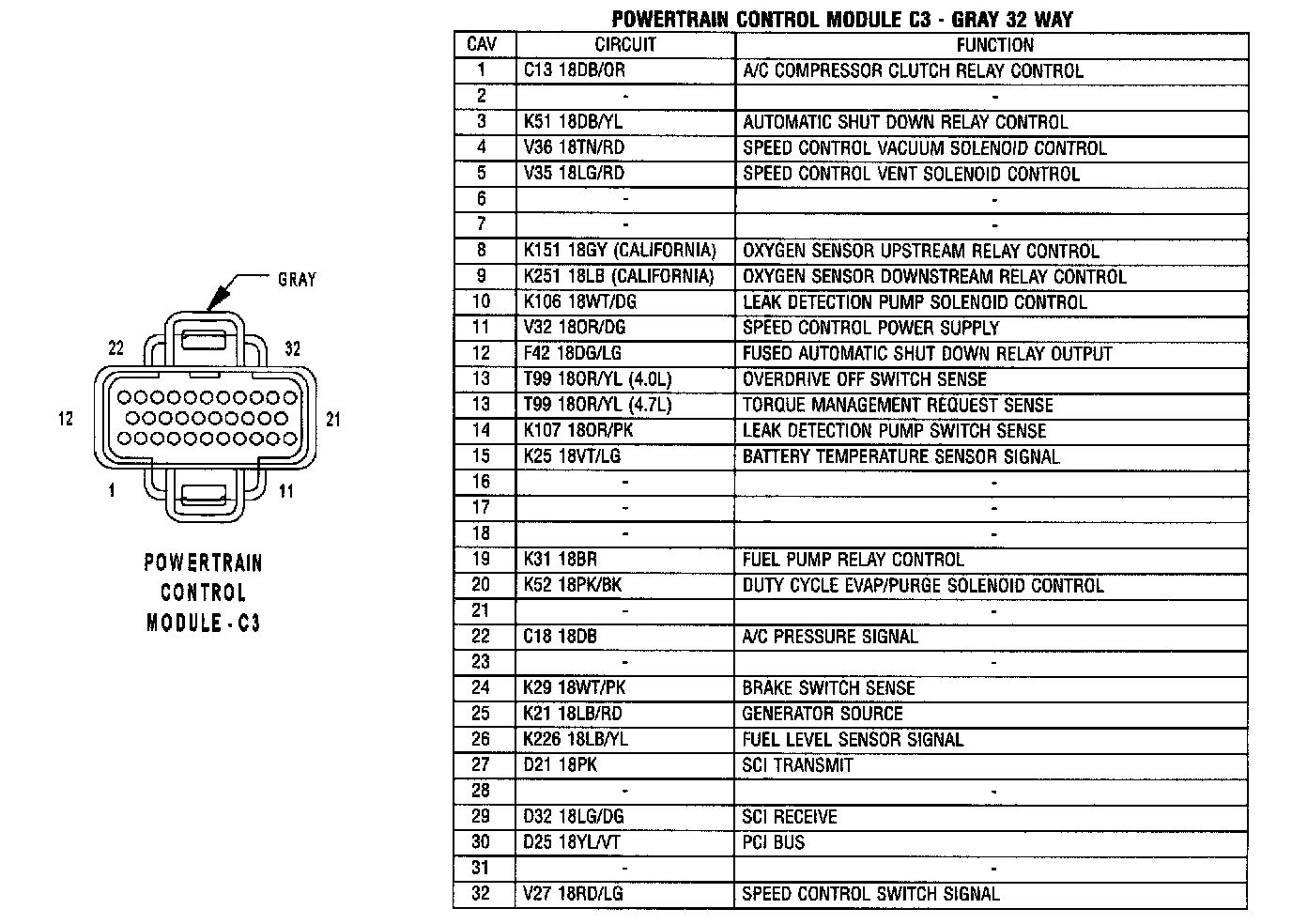

Powertrain Control Module C3 - Gray 32 Way:
POWERTRAIN CONTROL MODULE
