Removal & Installation

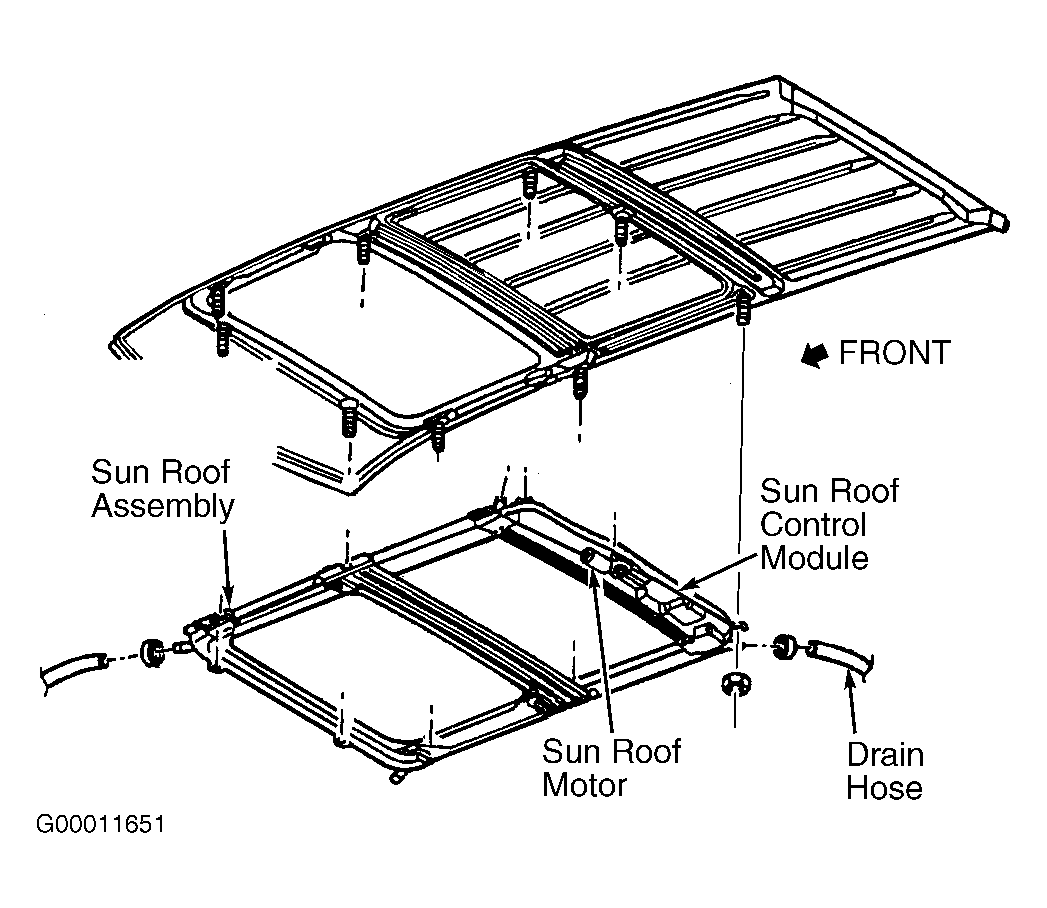

Move sunroof to fully closed position. Remove overhead console, map lights and "A", "B", "C" and "D" pillar trim as necessary to remove headliner and access sunroof control module at rear of sunroof assembly. See Fig 1. Disconnect sunroof control module connector and remove retaining screw. Remove control module from keyway by sliding toward center of vehicle. To install, reverse removal procedure.
