Checking Secondary Ignition and Timing

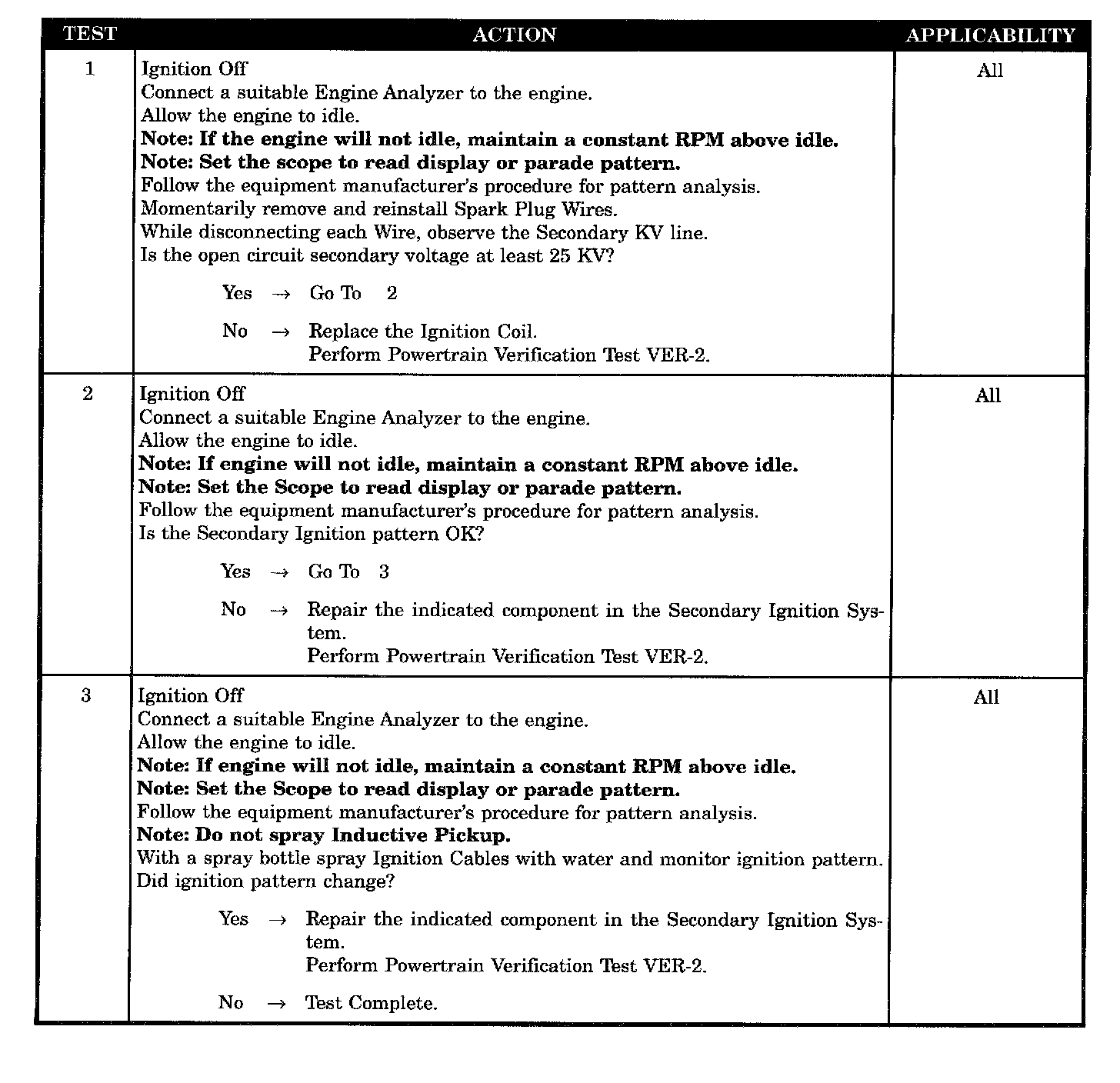

Tests 1 - 3:





SYMPTOM
CHECKING SECONDARY IGNITION AND TIMING

POSSIBLE CAUSES
- Electronic ignition coil secondary voltage
- Ignition cables irregular pattern
- Secondary ignition system irregular pattern
