Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |

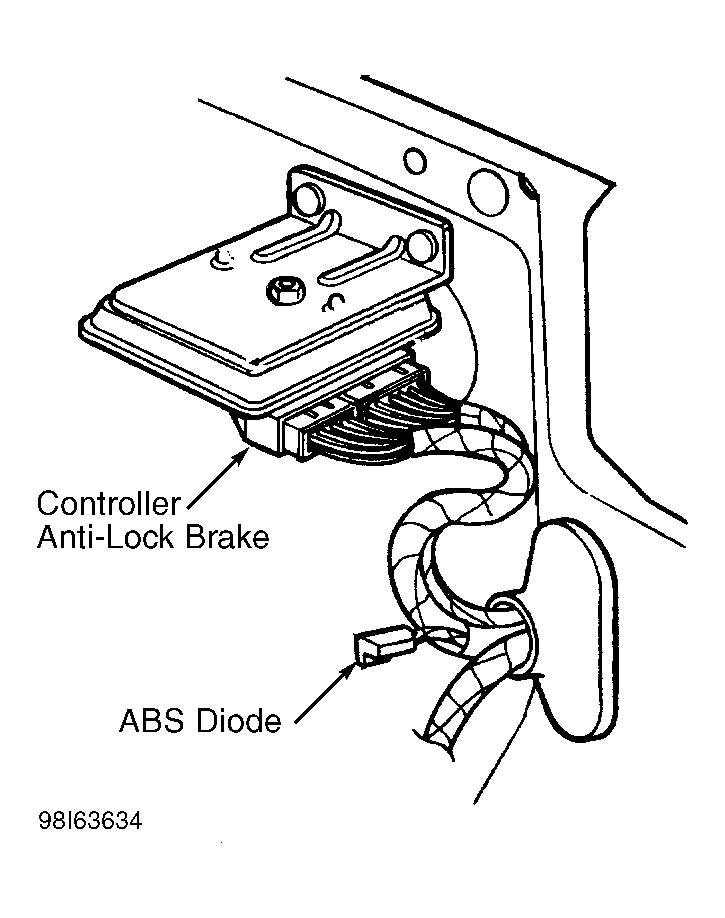

| ABS Diode |
In wiring harness, near controller anti-lock brake. See Figure
. |
| Fuse Block |
Under right side of dash. |

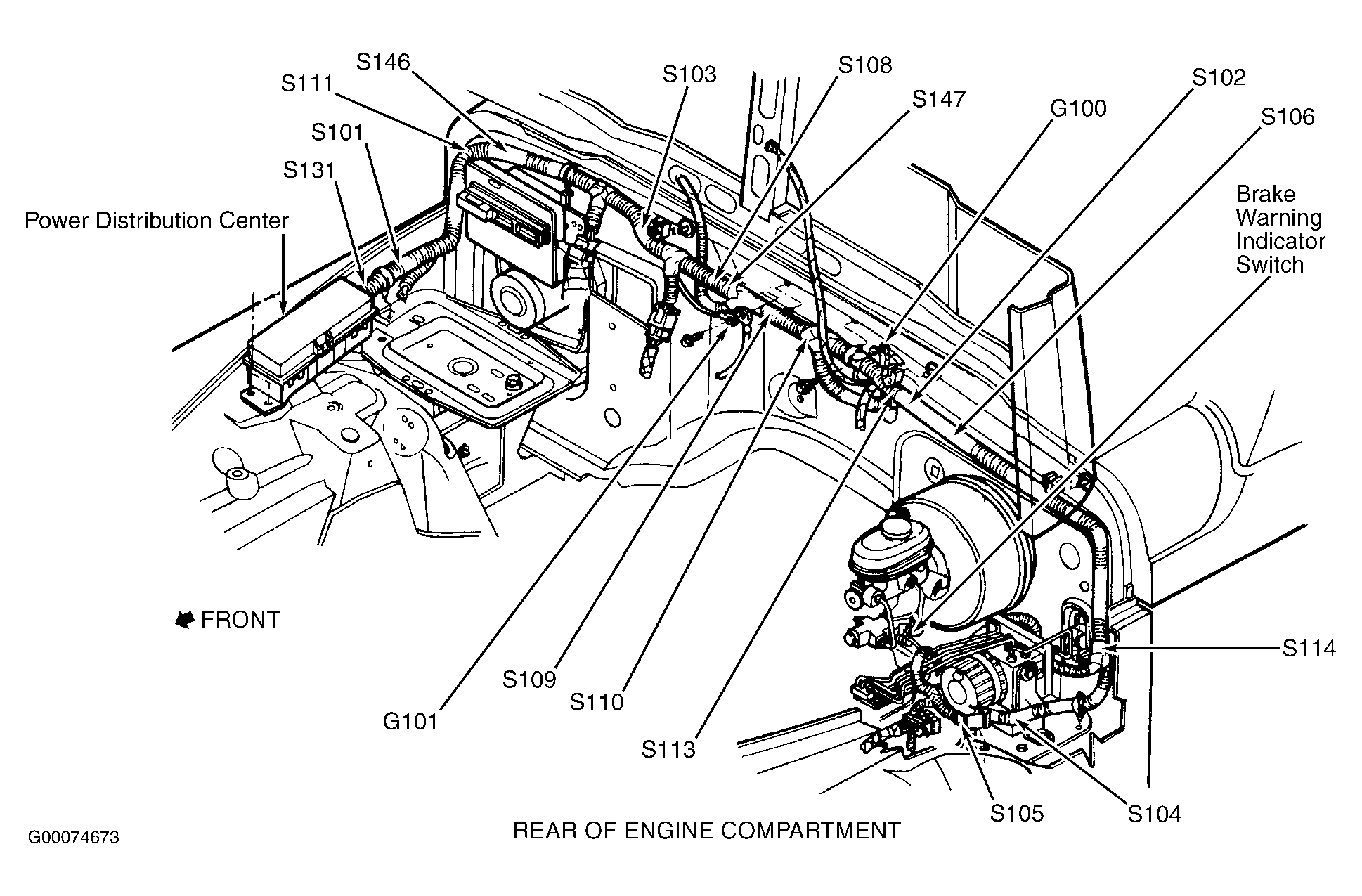

| Power Distribution Center |
On right side of engine compartment, on inner fender panel. See Figure
. |
