Fuel Pump Module: Installation

  1. Ensure sealing area on fuel tank is clean. Clean lock nut threads and fuel tank threads with soap and water. DO NOT use carburetor cleaner. Using NEW rubber gasket, install fuel pump module on fuel tank. DO NOT reuse rubber gasket. Ensure rubber gasket remains in place. Apply clean water to lock nut threads.
    NOTE: Fuel pump module must be properly positioned in fuel tank to prevent float from contacting fuel tank.
  2. Rotate fuel pump module so alignment arrow on fuel pump module is at 12 o'clock position (front of vehicle). See Figure. Hand-tighten fuel pump module lock nut.

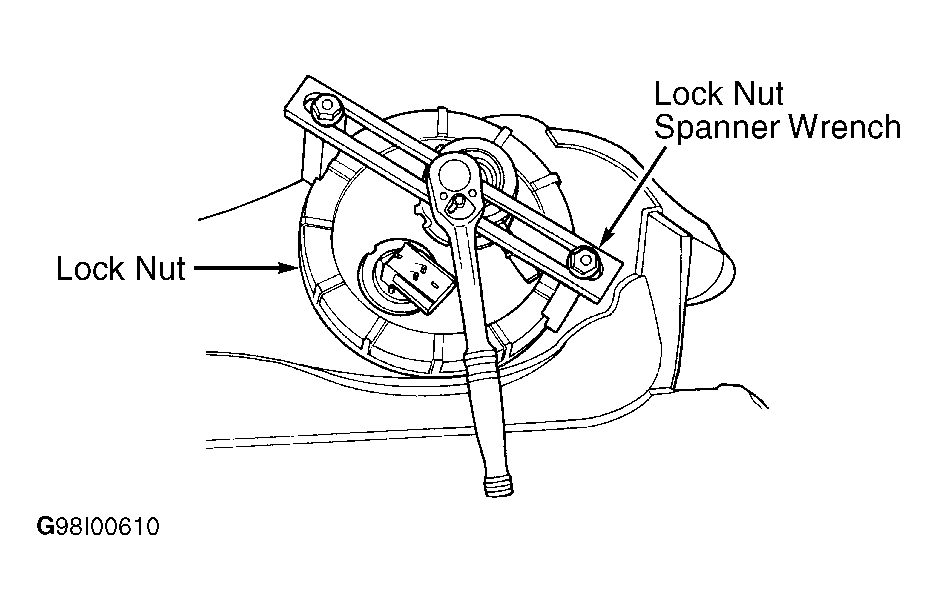

  3. Install lock nut spanner wrench. Hold fuel pump module in place while tightening fuel pump module lock nut to specification. See TORQUE SPECIFICATIONS . Install fuel tank.
