Battery Temperature Sensor: Testing and Inspection

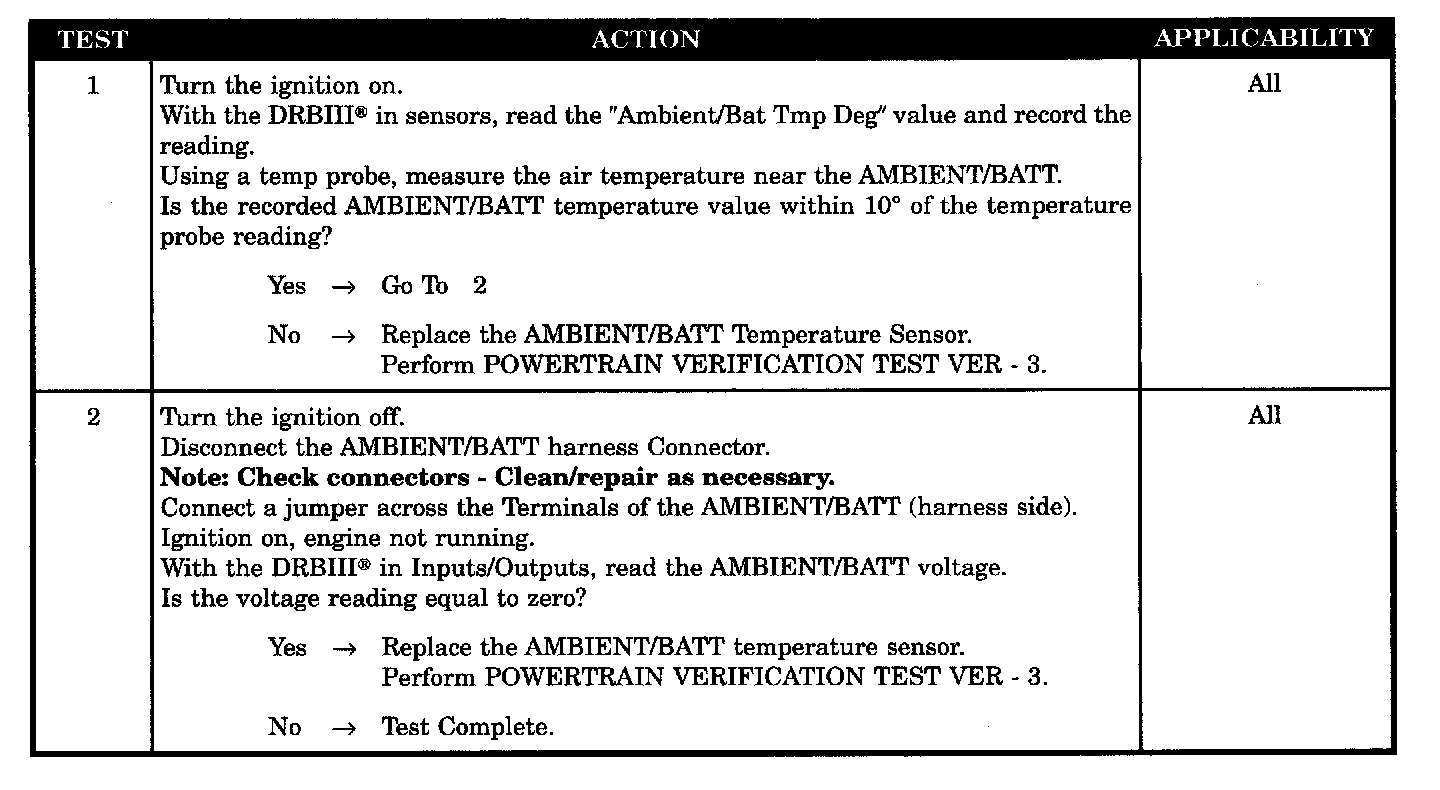

Tests 1 - 2:




SYMPTOM
*CHECKING THE AMBIENT/BATTERY TEMPERATURE SENSOR

POSSIBLE CAUSES
- Ambient/Batt temperature sensor
- Ambient/Batt (out of calibration)
