Fuel Level Sensor: Service and Repair

REMOVAL

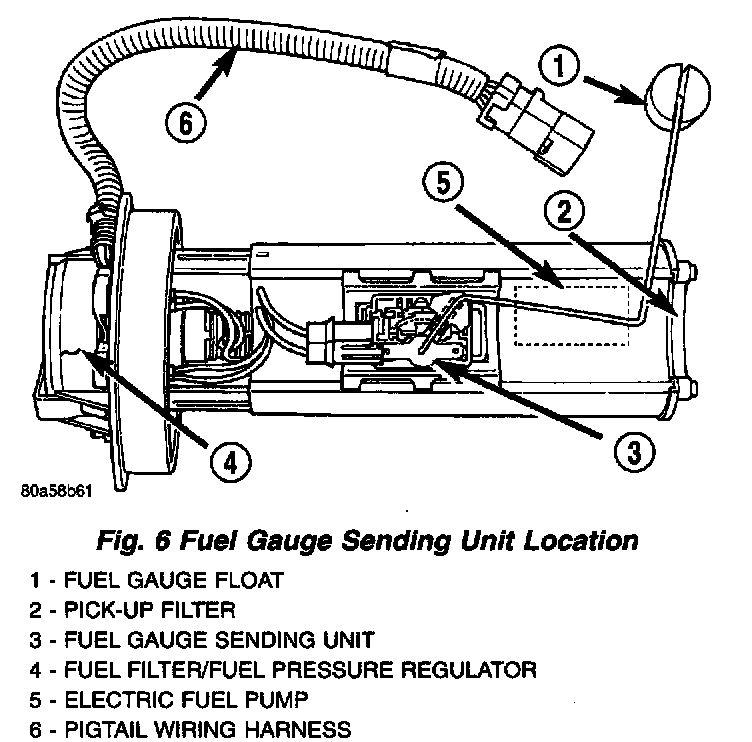

Fig.6 Fuel Gauge Sanding Unit Location:

The fuel gauge sending unit (fuel level sensor) and float assembly is located on the side of fuel pump module. The fuel pump module is located within the fuel tank.

1. Remove fuel tank.
2. Remove fuel pump module.
3. Remove electrical wire connector at sending unit terminals.

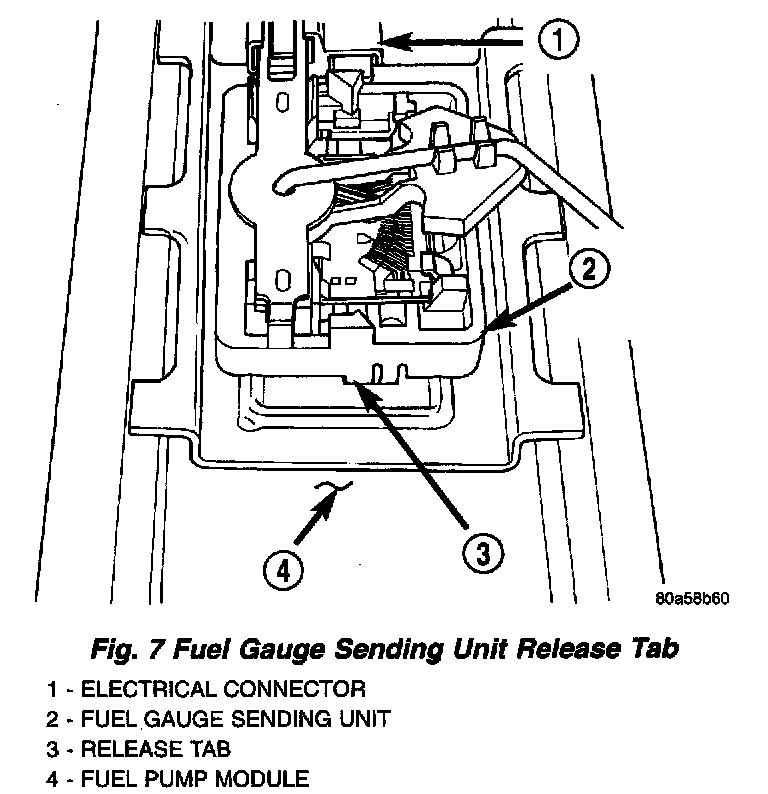

Fig.7 Fuel Gauge Sending Unit Release Tab:

4. Press on release tab to remove sending unit from pump module.

INSTALLATION
1. Position sending unit to pump module and snap into place.
2. Connect electrical connector to terminals.
3. Install fuel pump module.
4. Install fuel tank.
