Connector Views
BRAKE LAMP SWITCH
BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID

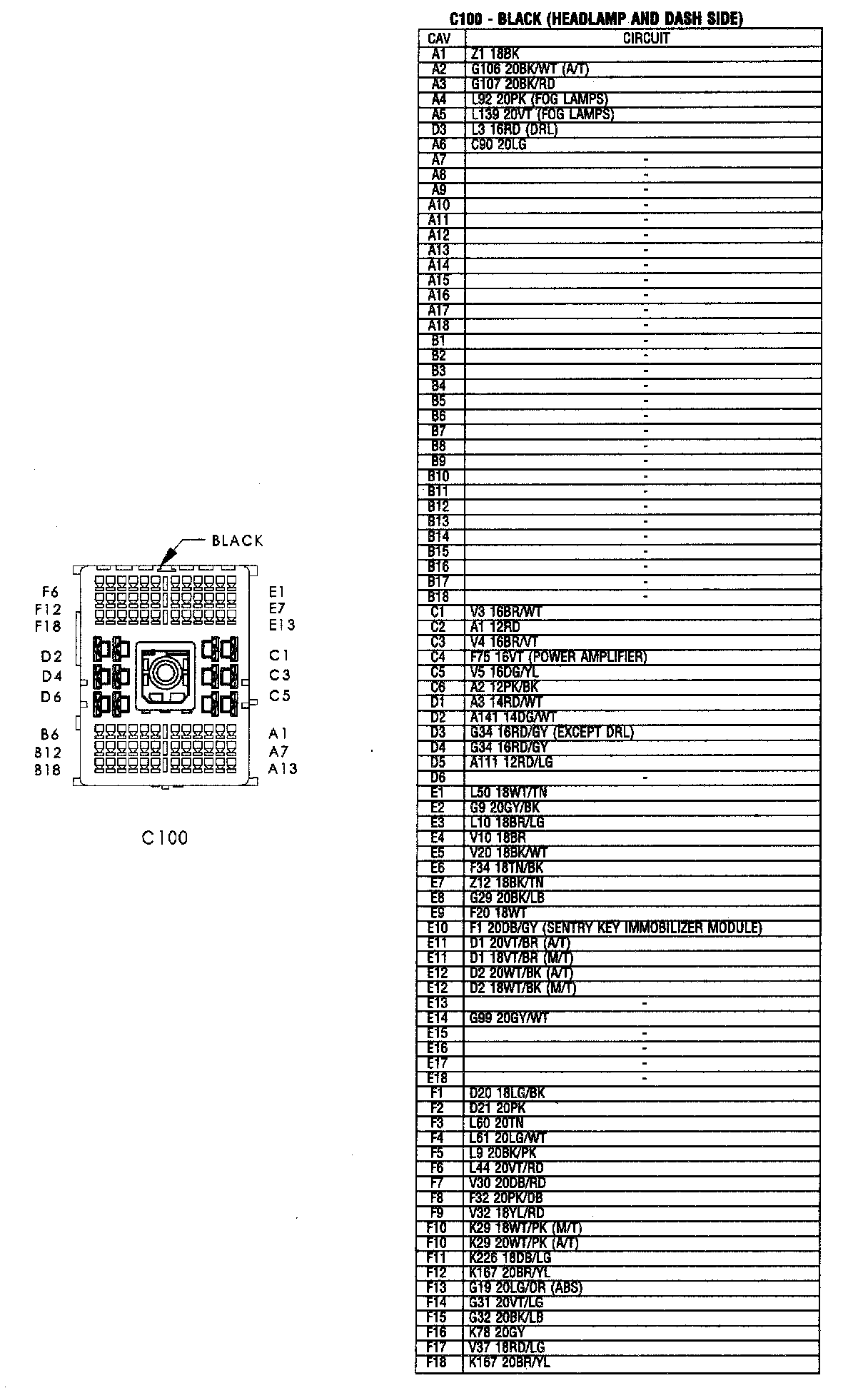

C100 - BLACK (HEADLAMP AND DASH SIDE)

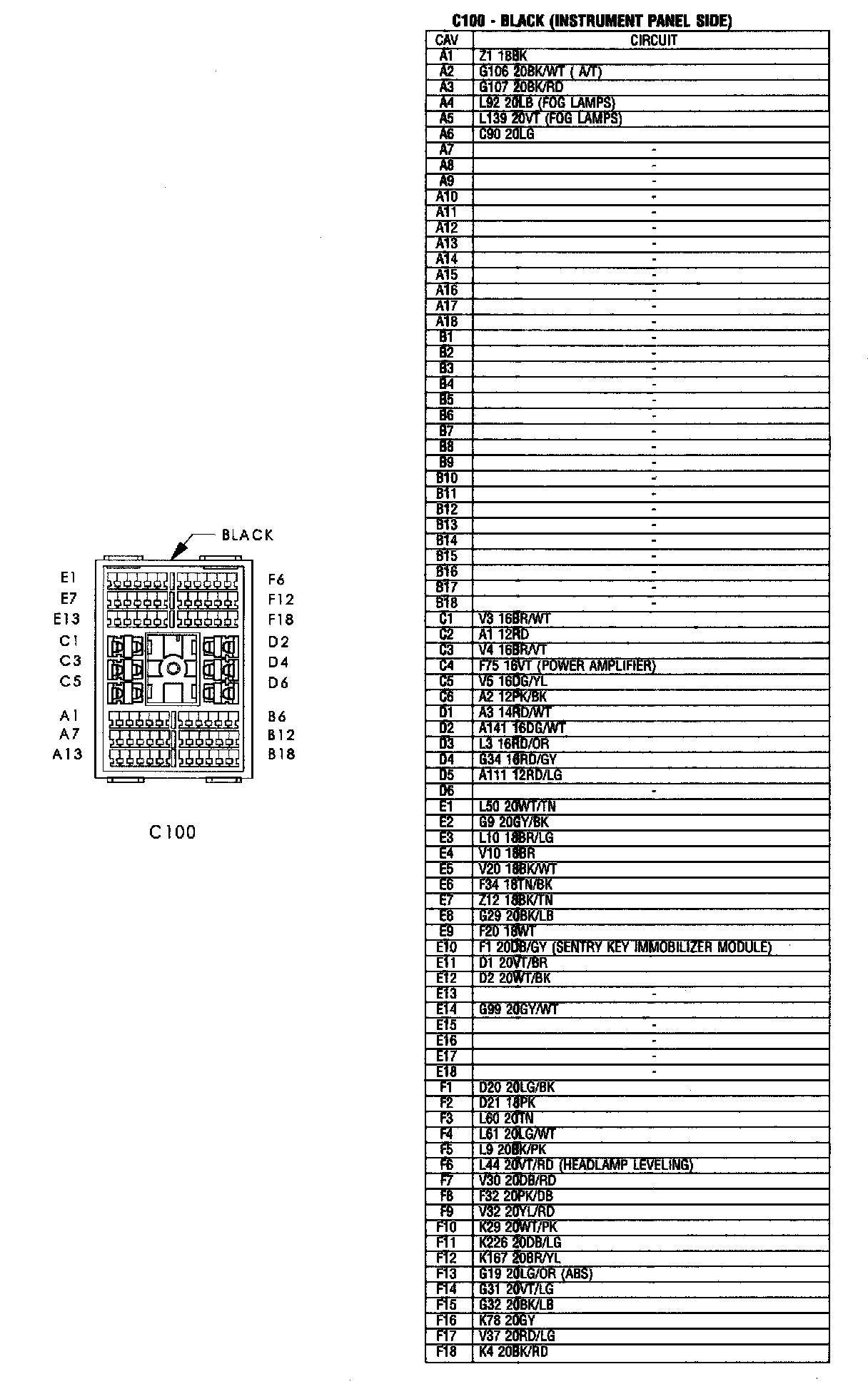

C100 - BLACK (INSTRUMENT PANEL SIDE)
C107 - BLACK (HEADLAMP AND DASH SIDE)
C107 - BLACK (ENGINE SIDE)

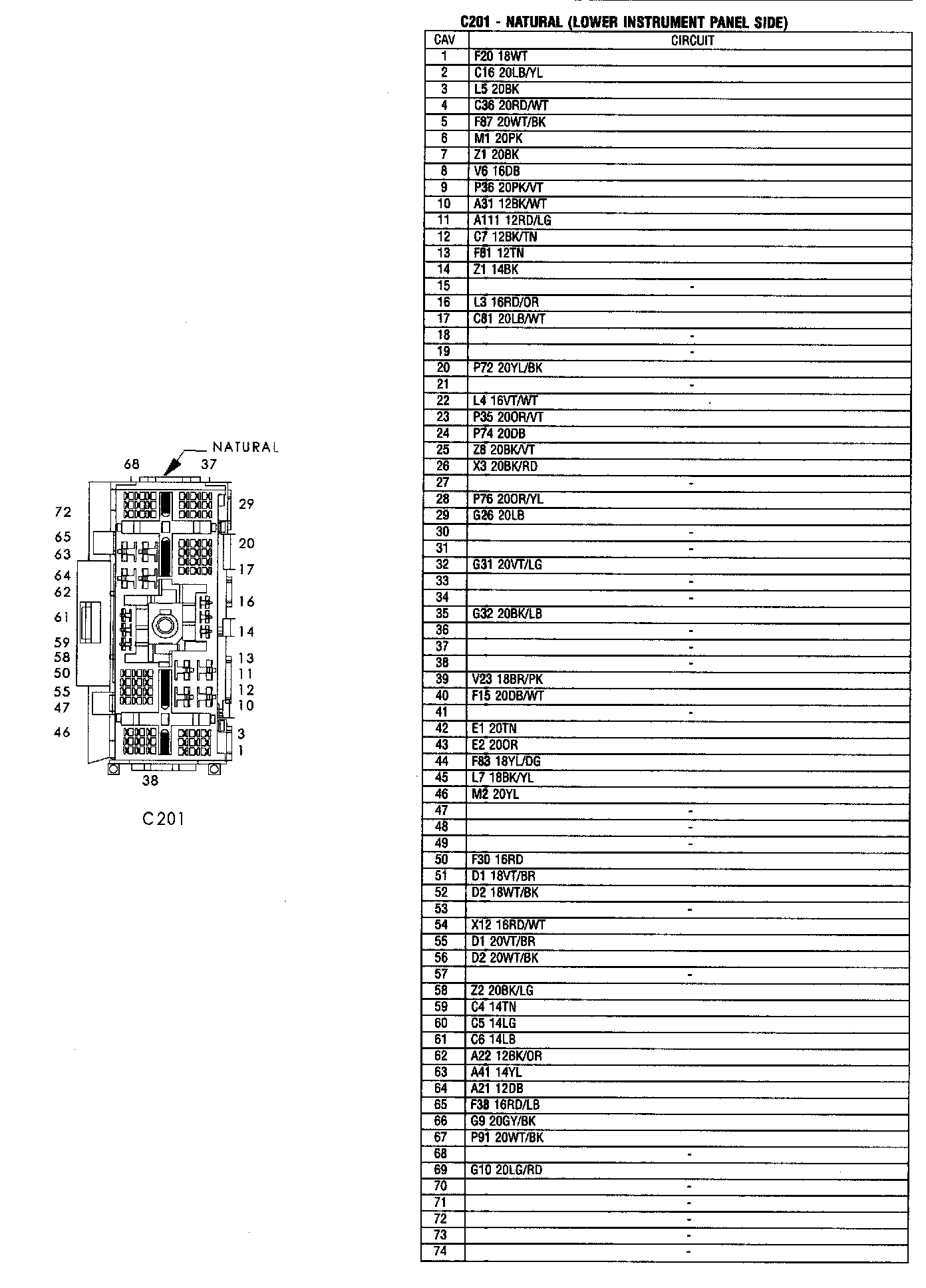

C201 - NATURAL (LOWER INSTRUMENT PANEL SIDE)

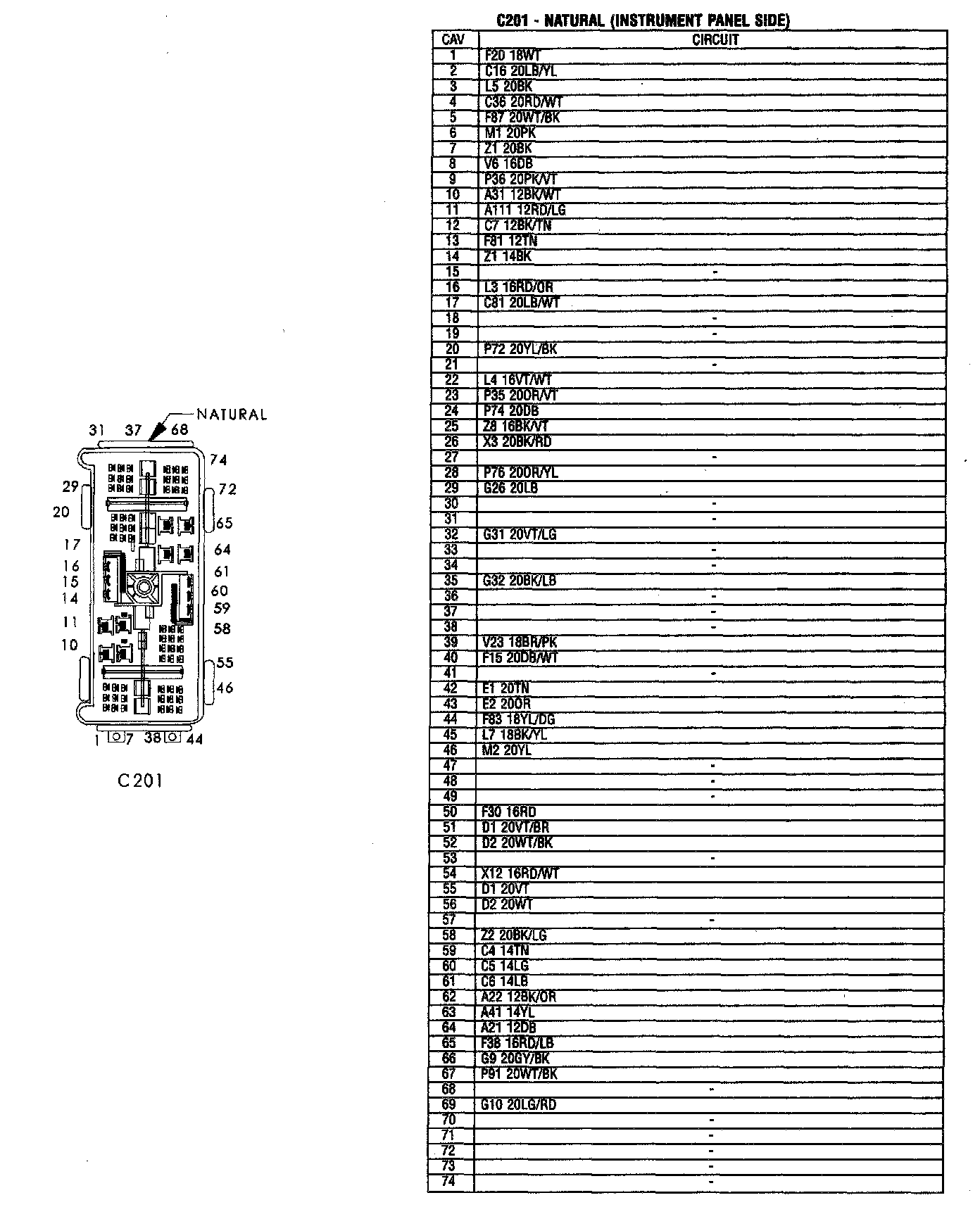

C201 - NATURAL (INSTRUMENT PANEL SIDE)
DATA LINK CONNECTOR
INPUT SPEED SENSOR
LEFT BACK-UP LAMP
OUTPUT SPEED SENSOR CONNECTOR

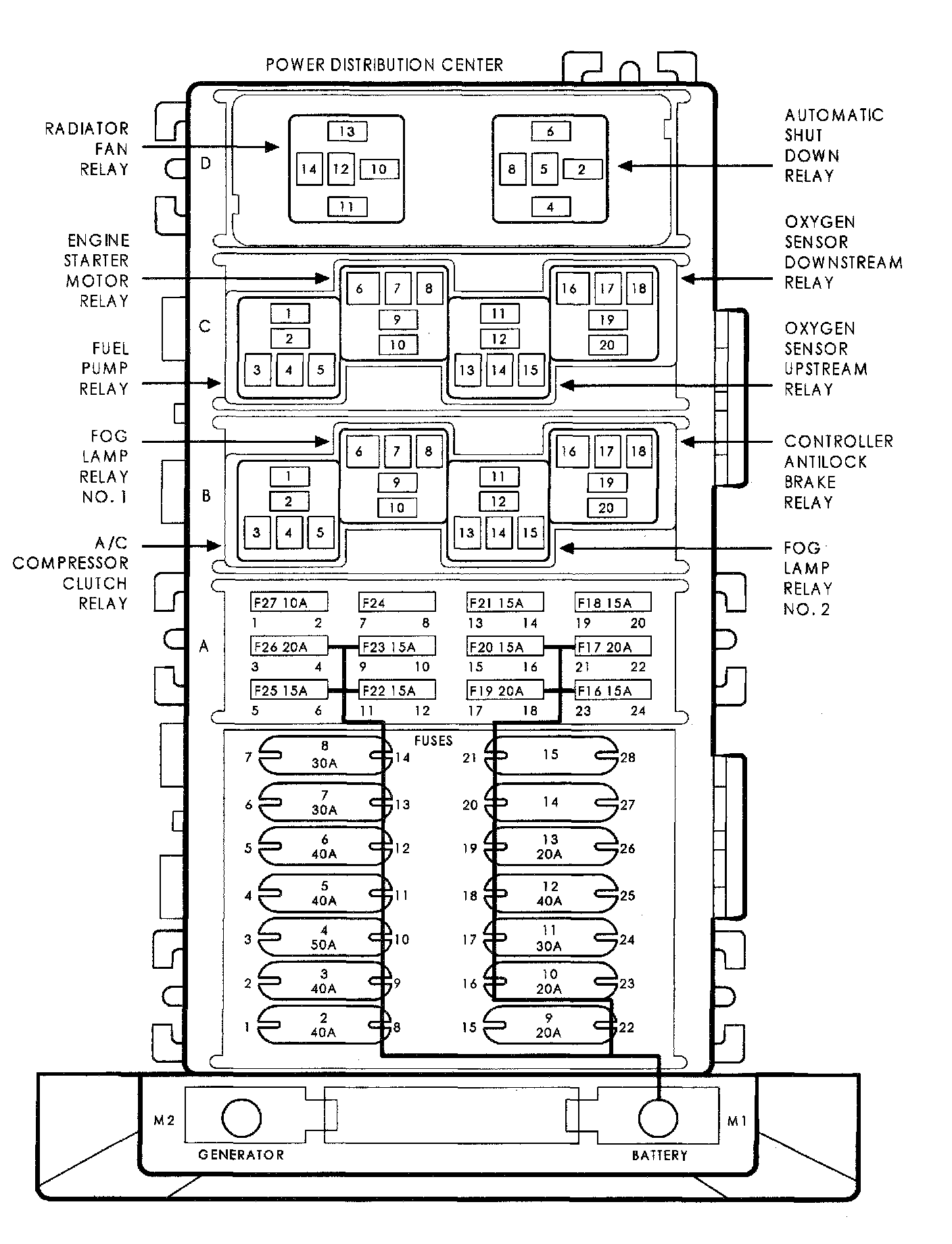

POWER DISTRIBUTION CENTER

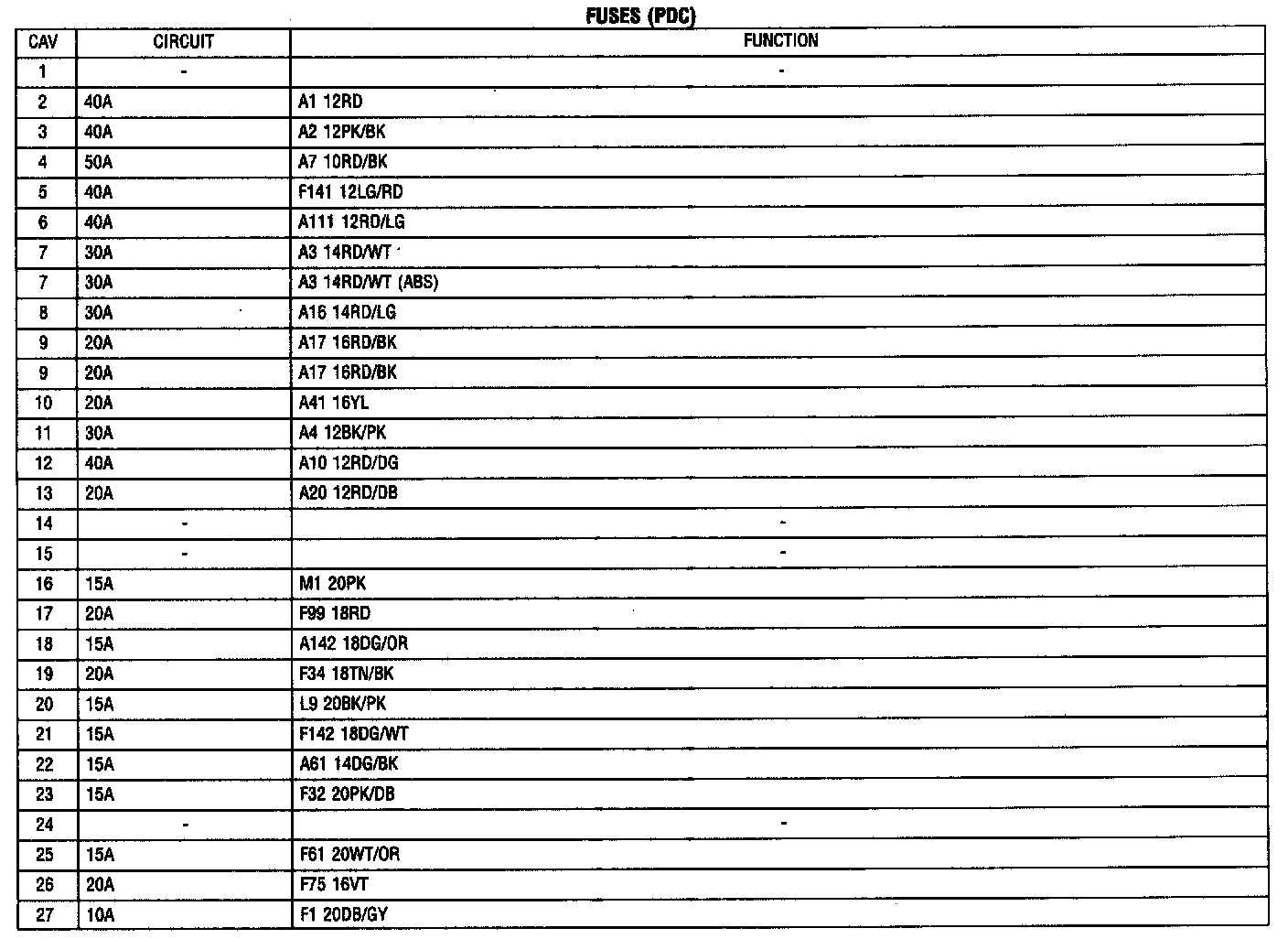

FUSES (PDC)

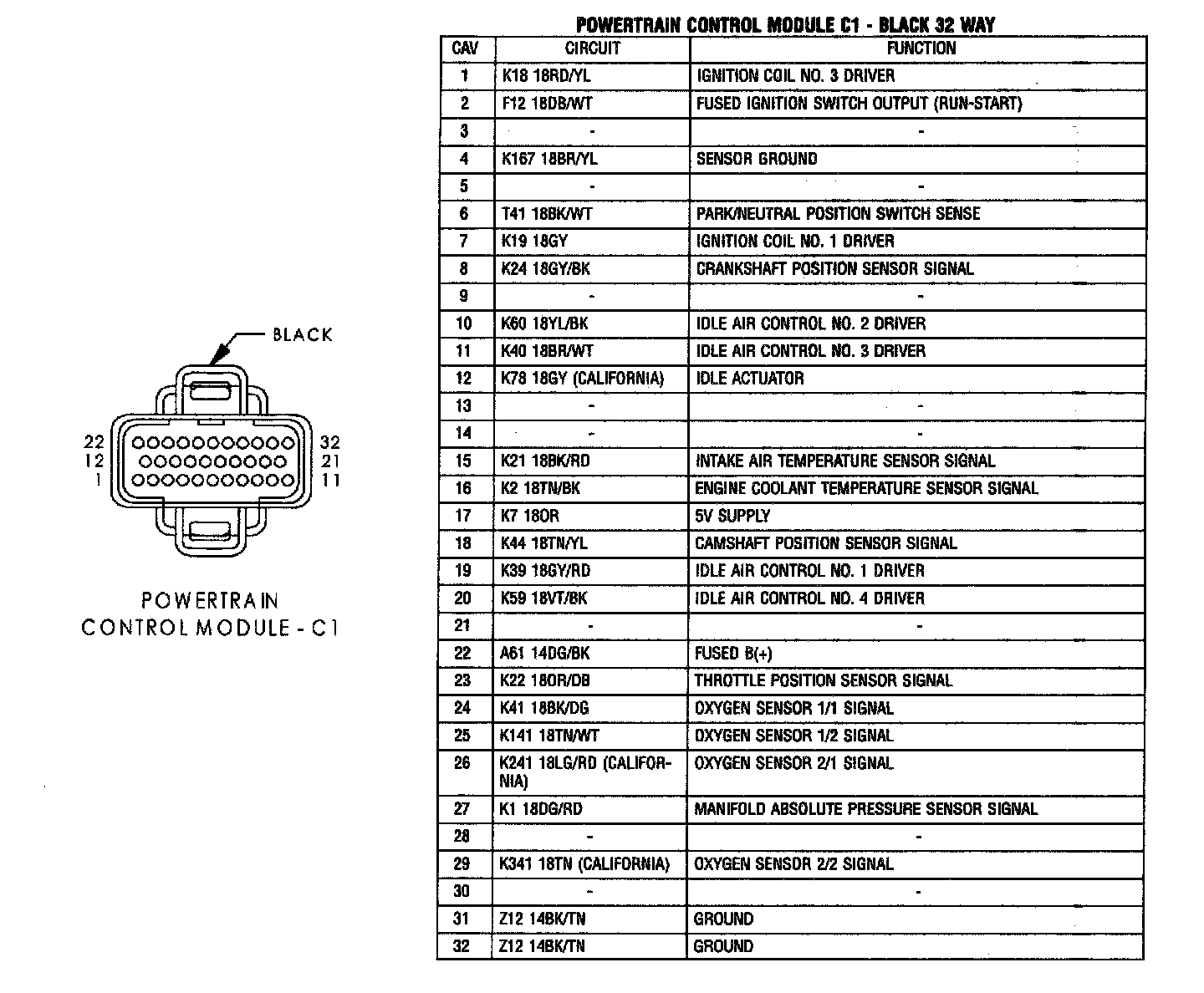

POWERTRAIN CONTROL MODULE - C1

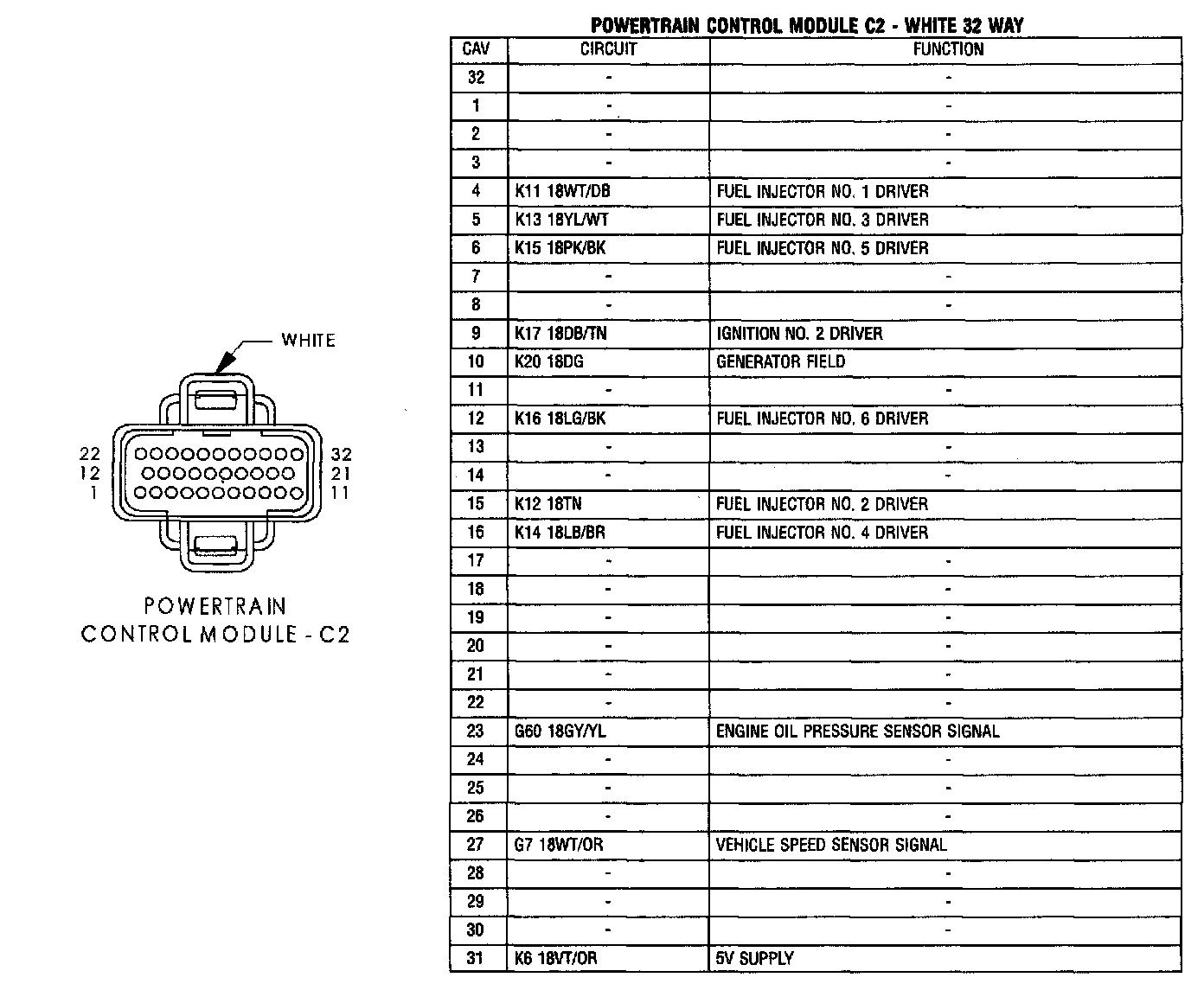

POWERTRAIN CONTROL MODULE - C2

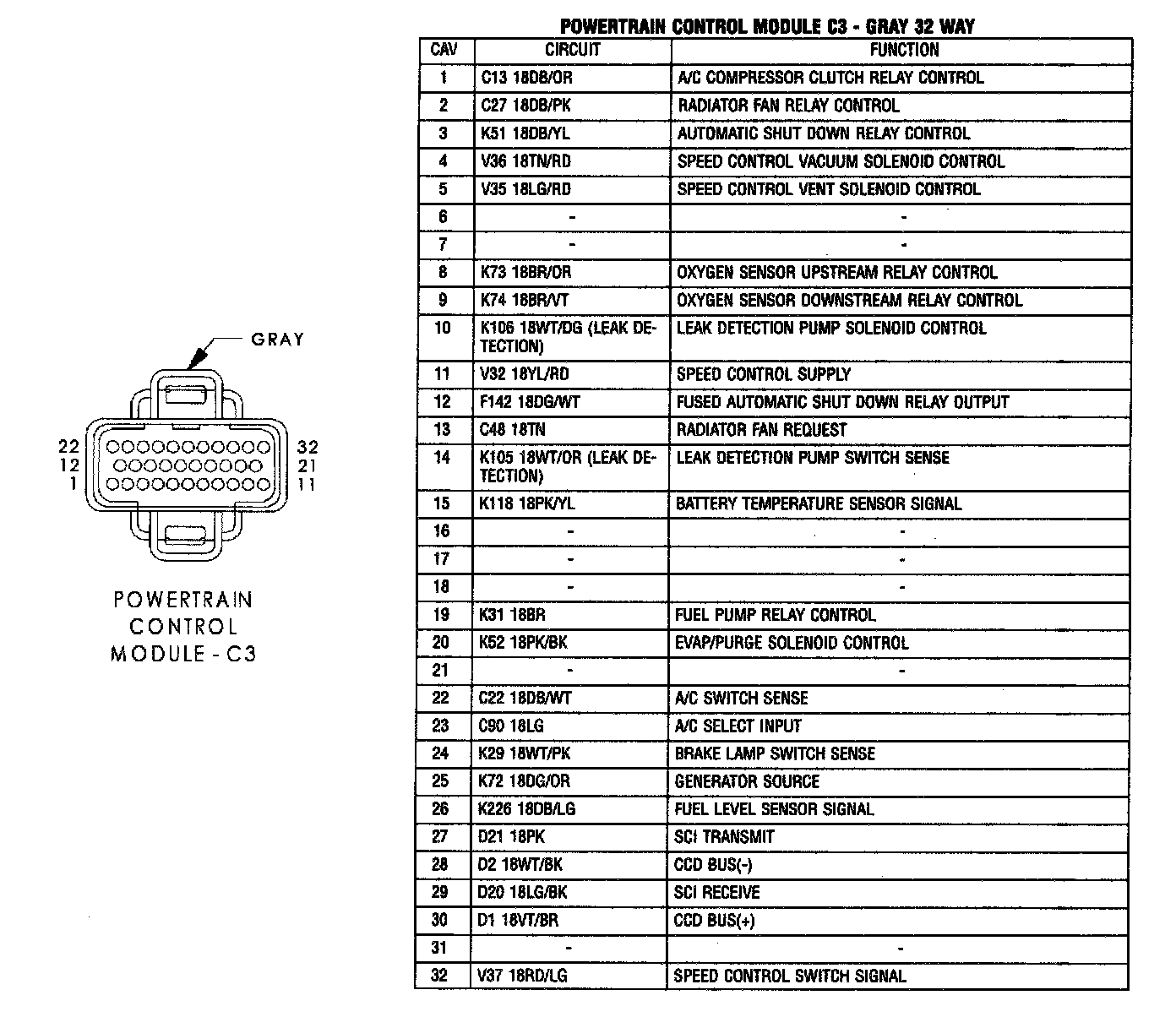

POWERTRAIN CONTROL MODULE - C3
RIGHT BACK-UP LAMP
THROTTLE POSITION SENSOR
TRANSMISSION CONTROL MODULE
TRANSMISSION RANGE INDICATOR ILLUMINATION (A/T)
TRANSMISSION RANGE SENSOR
TRANSMISSION RANGE SENSOR CONNECTOR (TRANS HARNESS SIDE)
TRANSMISSION SOLENOID (TRANS SIDE)
TRANSMISSION SOLENOID
