Camshaft Position Sensor: Locations

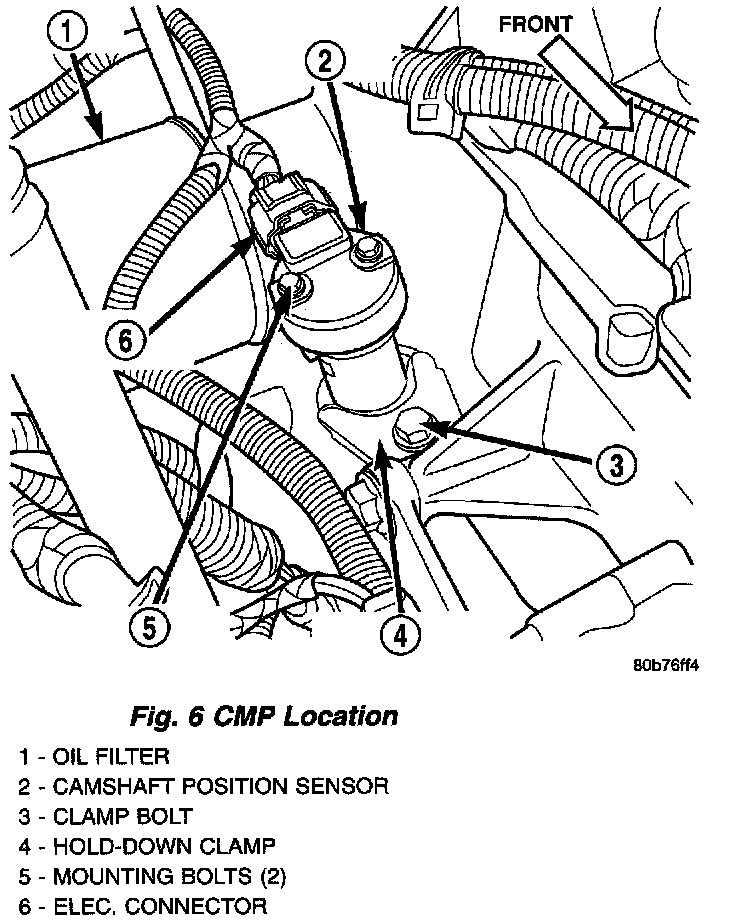

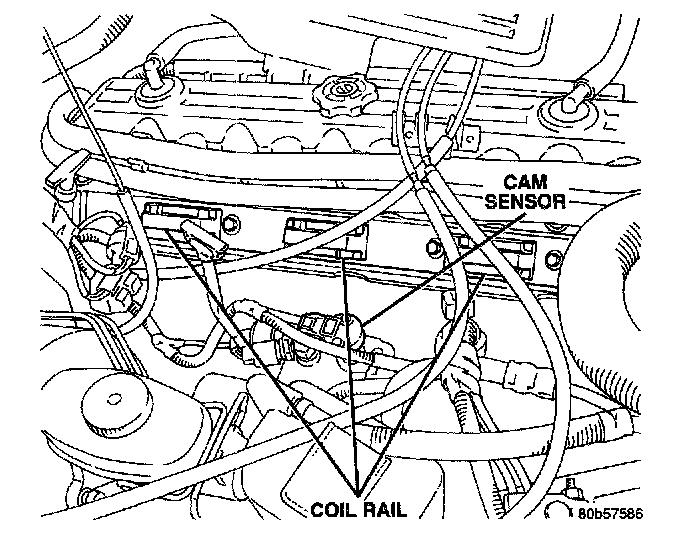

Fig.6 CMP Location:

The Camshaft Position Sensor (CMP) on this engine is bolted to the top of the oil pump drive shaft assembly. The sensor and drive shaft assembly is located on the right side of the engine near the oil filter.

The data link connector is located in passenger compartment, below and to left of steering column.
