Chime Inoperative With Driver Door Open

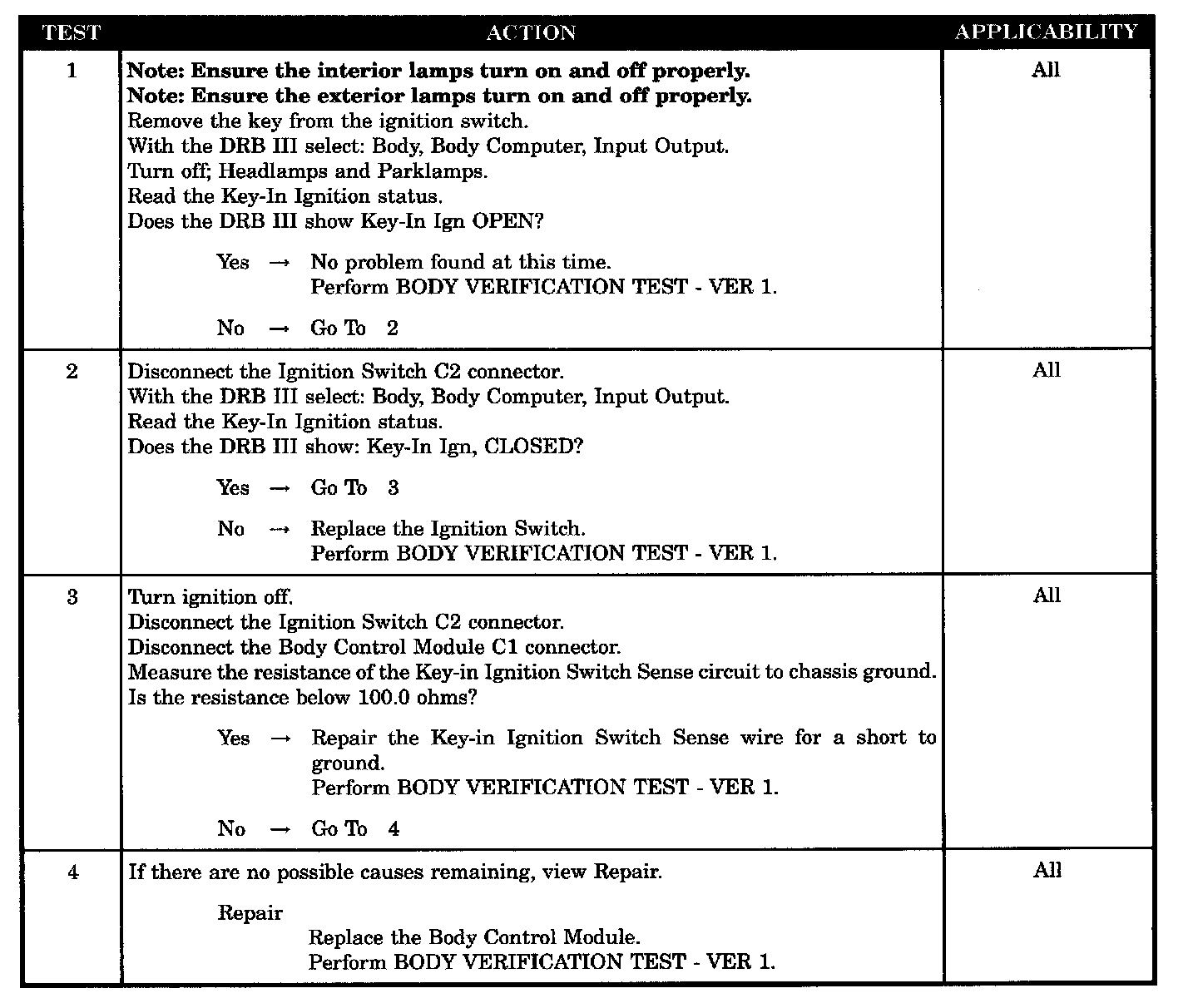

Tests 1 - 4:





SYMPTOM
CHIME INOPERATIVE WITH DRIVER DOOR OPEN

POSSIBLE CAUSES
- Key-in IGN switch status wrong
- Key-in ignition switch circuit shorted
- Key-in IGN switch sense wire shorted to ground
- Body control module - key-in ignition shorted
