Chime Inoperative With Key In Ignition and Driver's Door Open

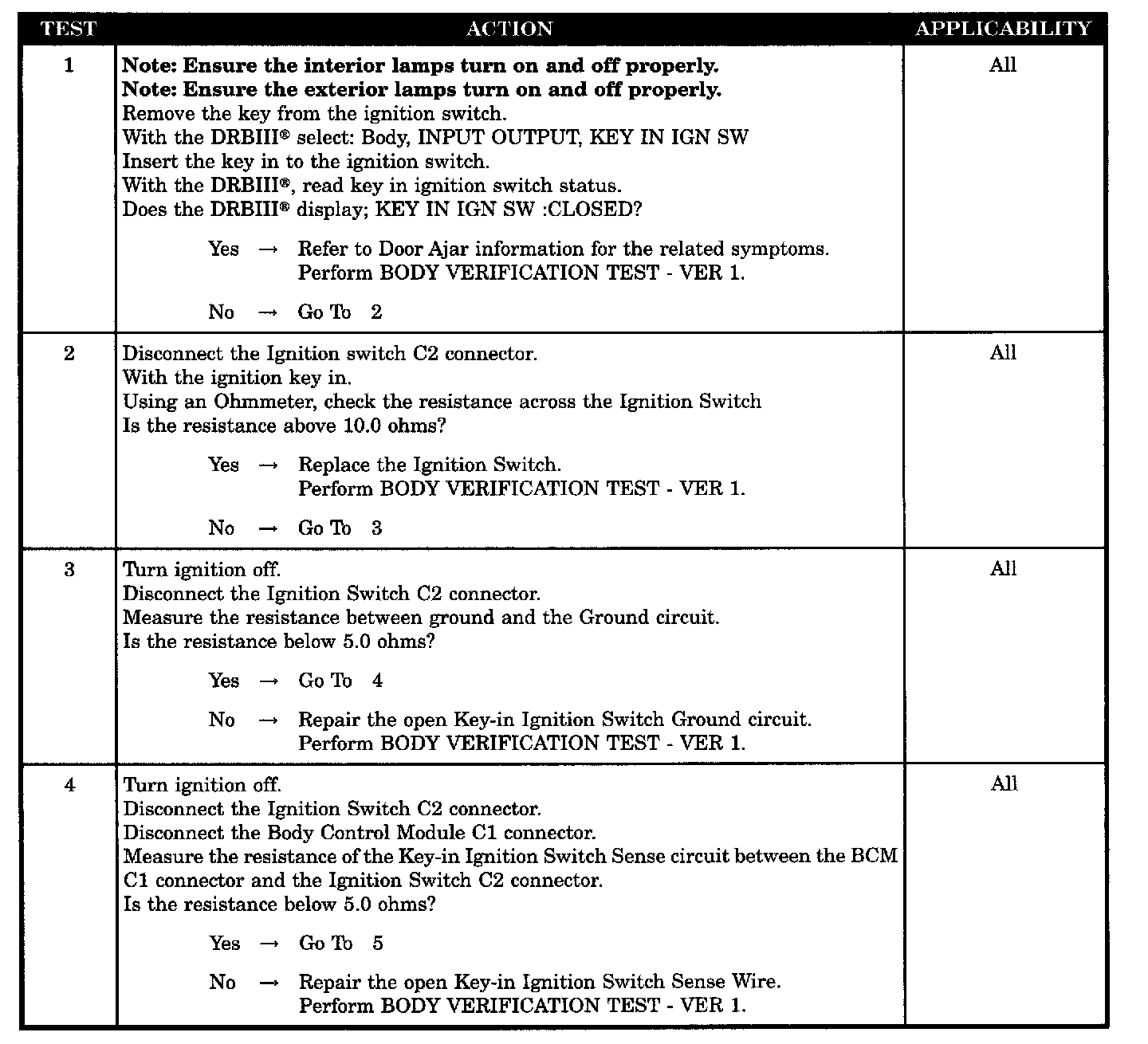

Tests 1 - 4:

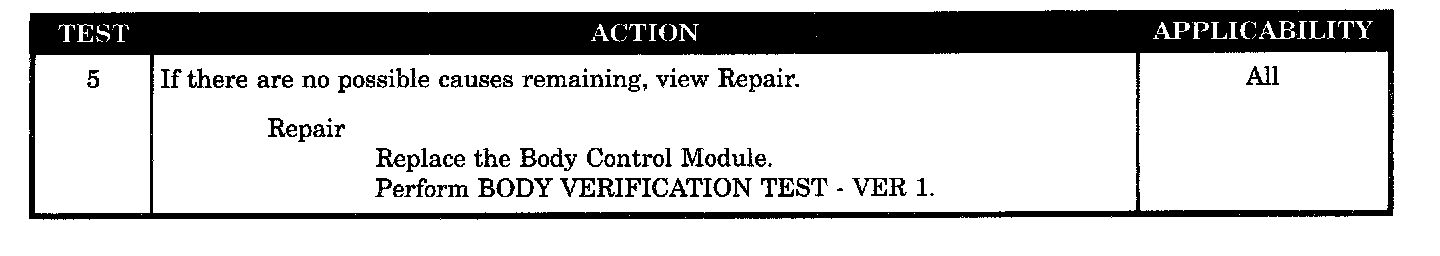

Test 5:

SYMPTOM
CHIME INOPERATIVE WITH KEY IN IGNITION, DRIVER DOOR OPEN

POSSIBLE CAUSES
- Open key-in switch
- Key-in IGN switch ground circuit open
- Key-in IGN switch sense circuit open
- Body control module - key-in ignition open
- Door ajar problems
