Main Relay (Computer/Fuel System): Locations

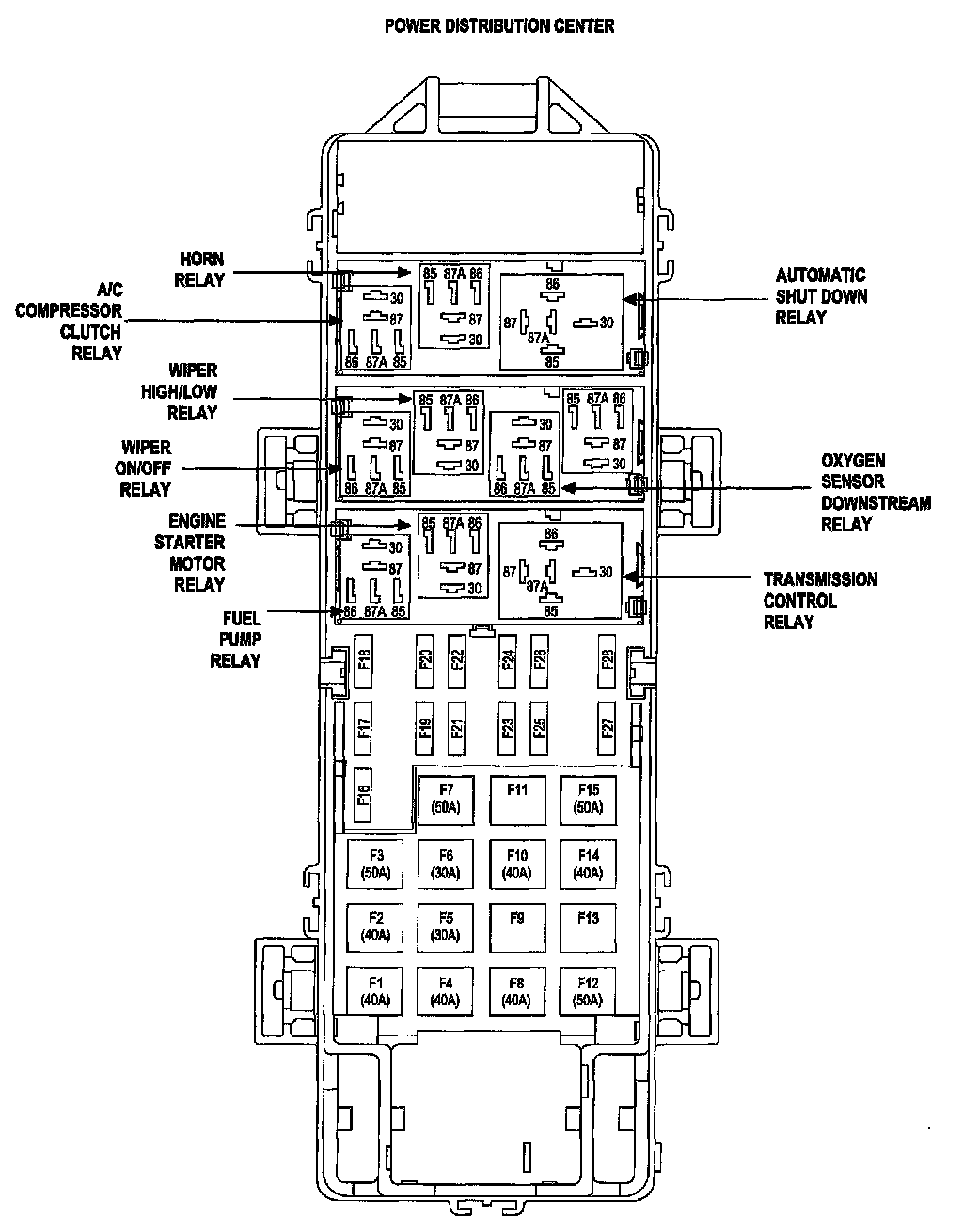

Fig.1 Power Distribution Center (PDC) Location:






The Automatic Shutdown (ASD) relay is located in the Power Distribution Center (PDC).
