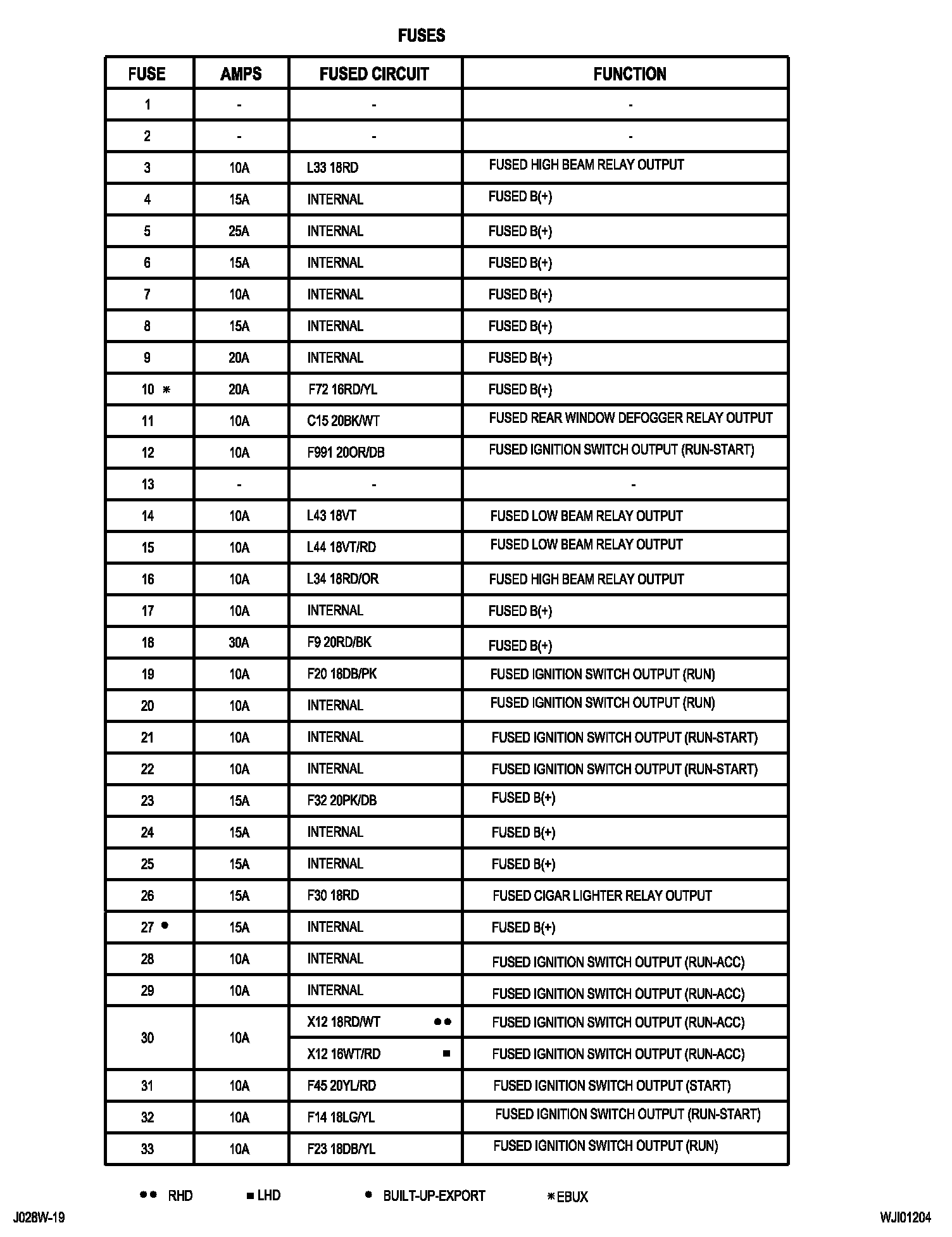

Fuse Block

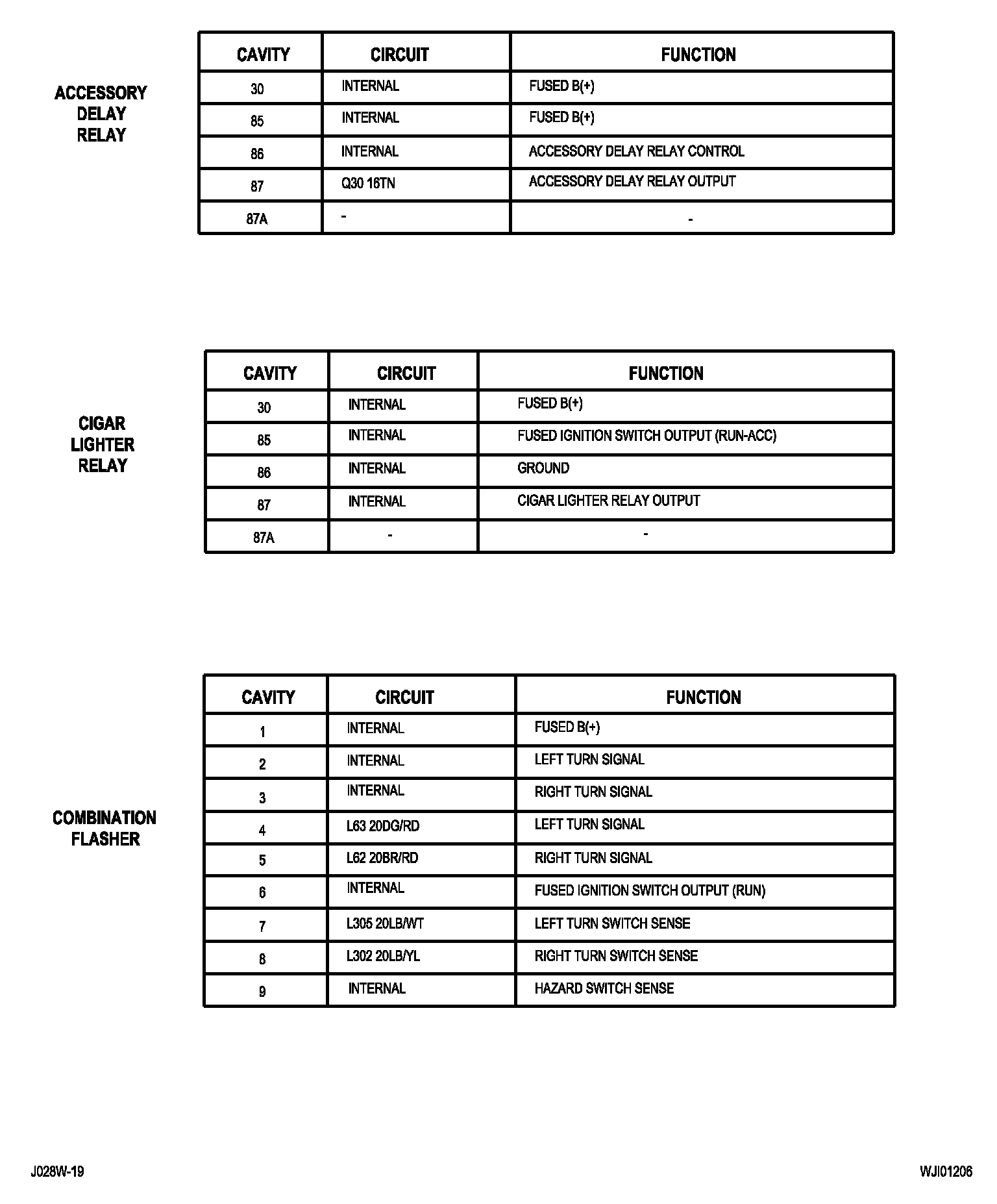

8w-12-4:

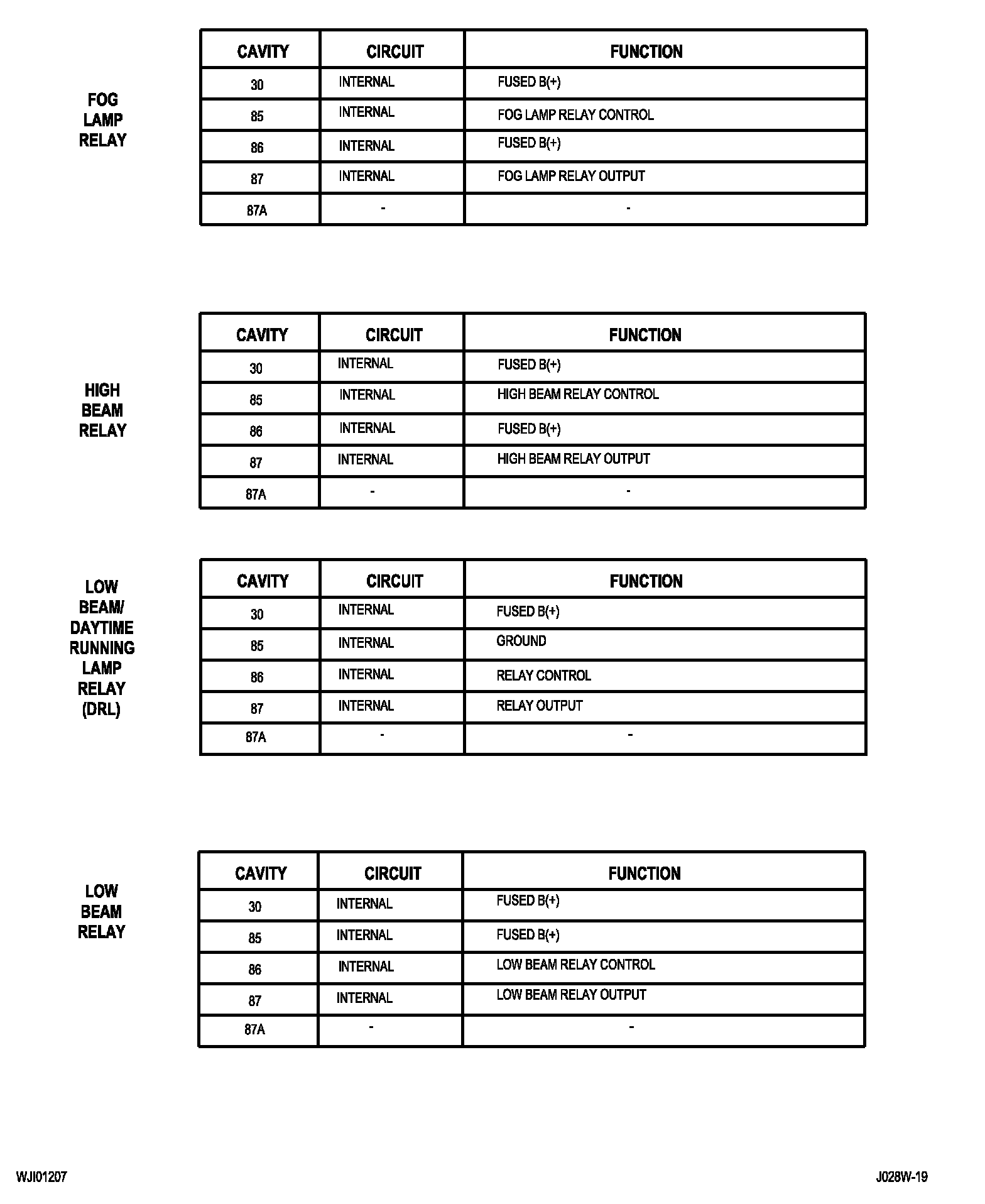

8w-12-5:

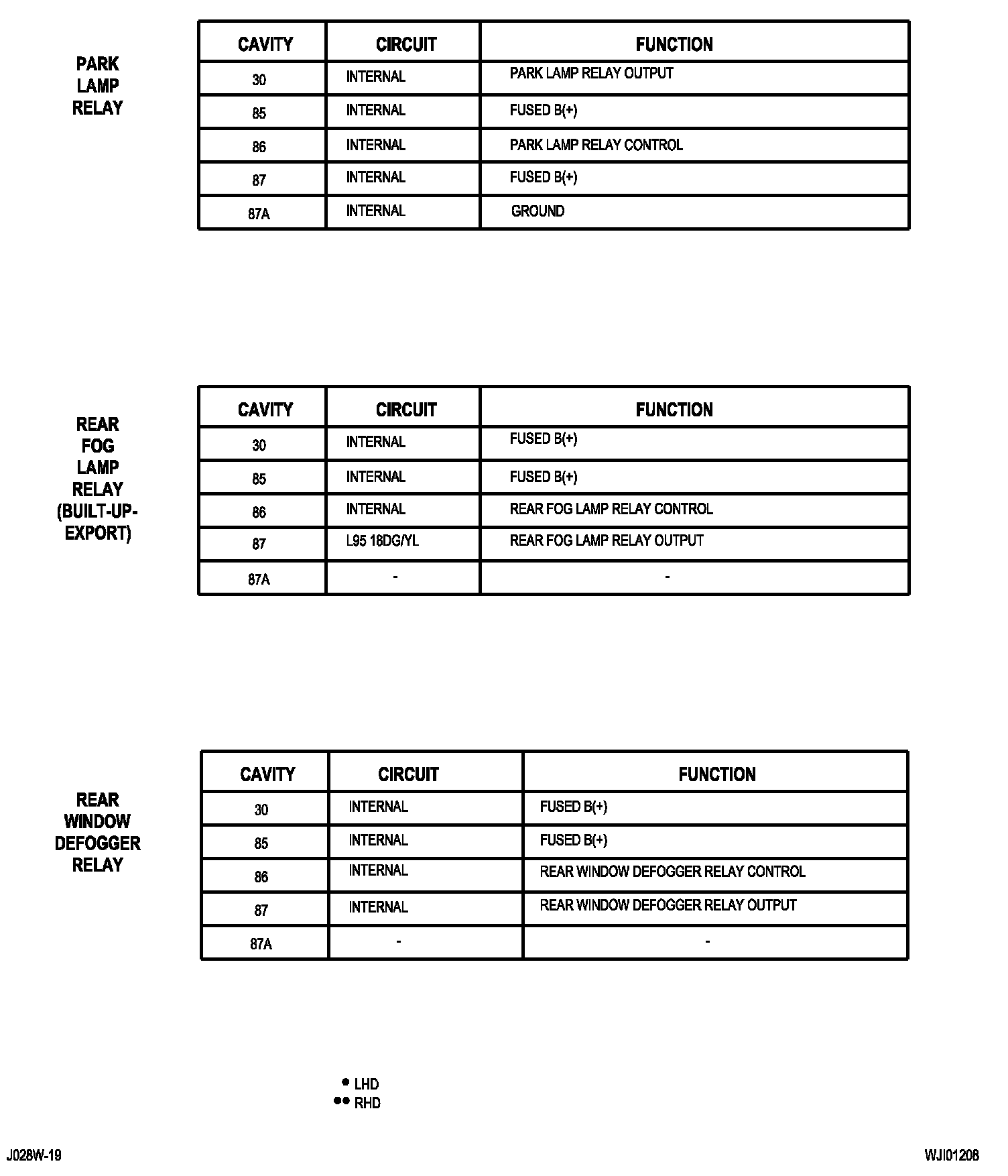

8w-12-6:

8w-12-7:

8w-12-8:

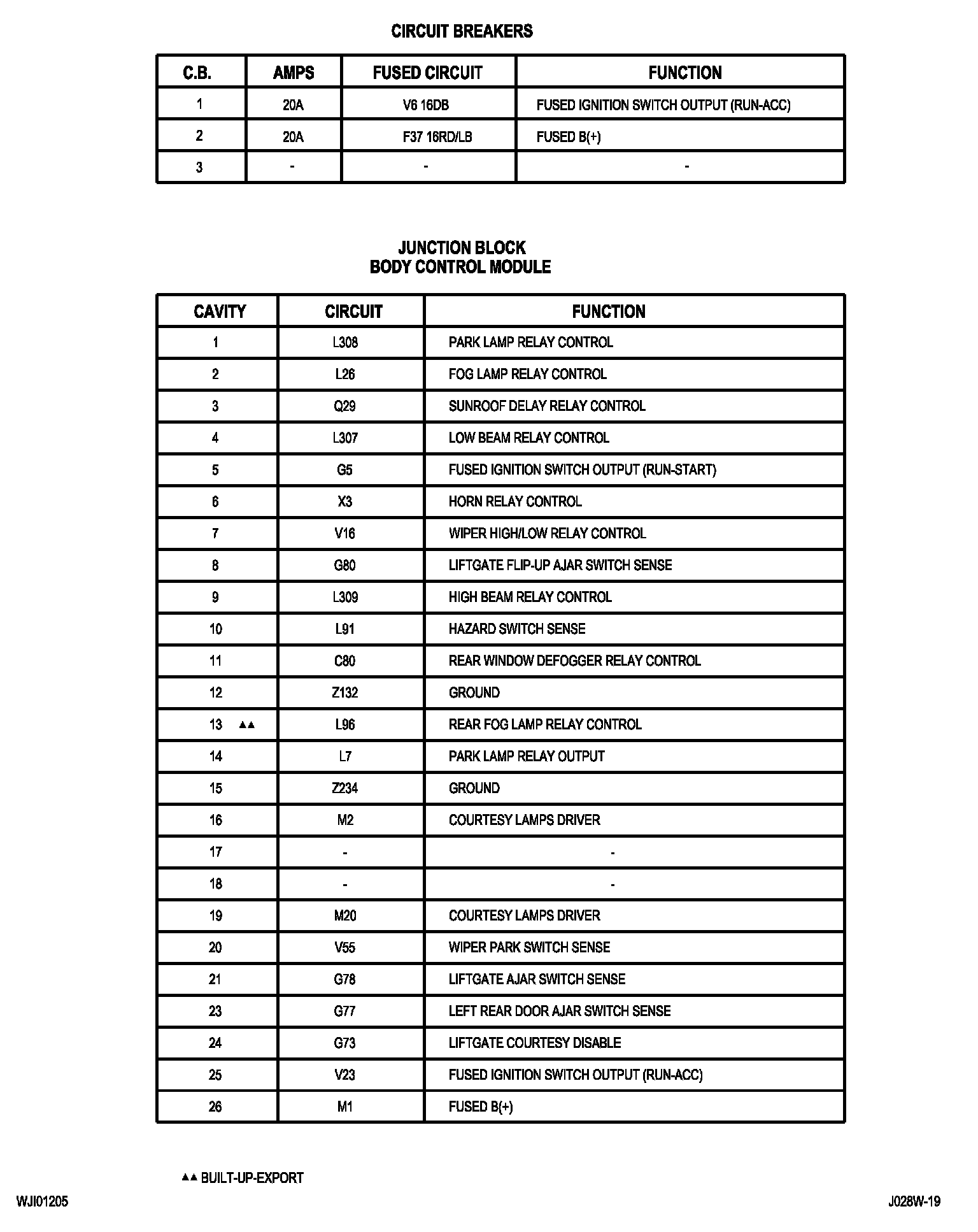

Junction Block Body Control Module:

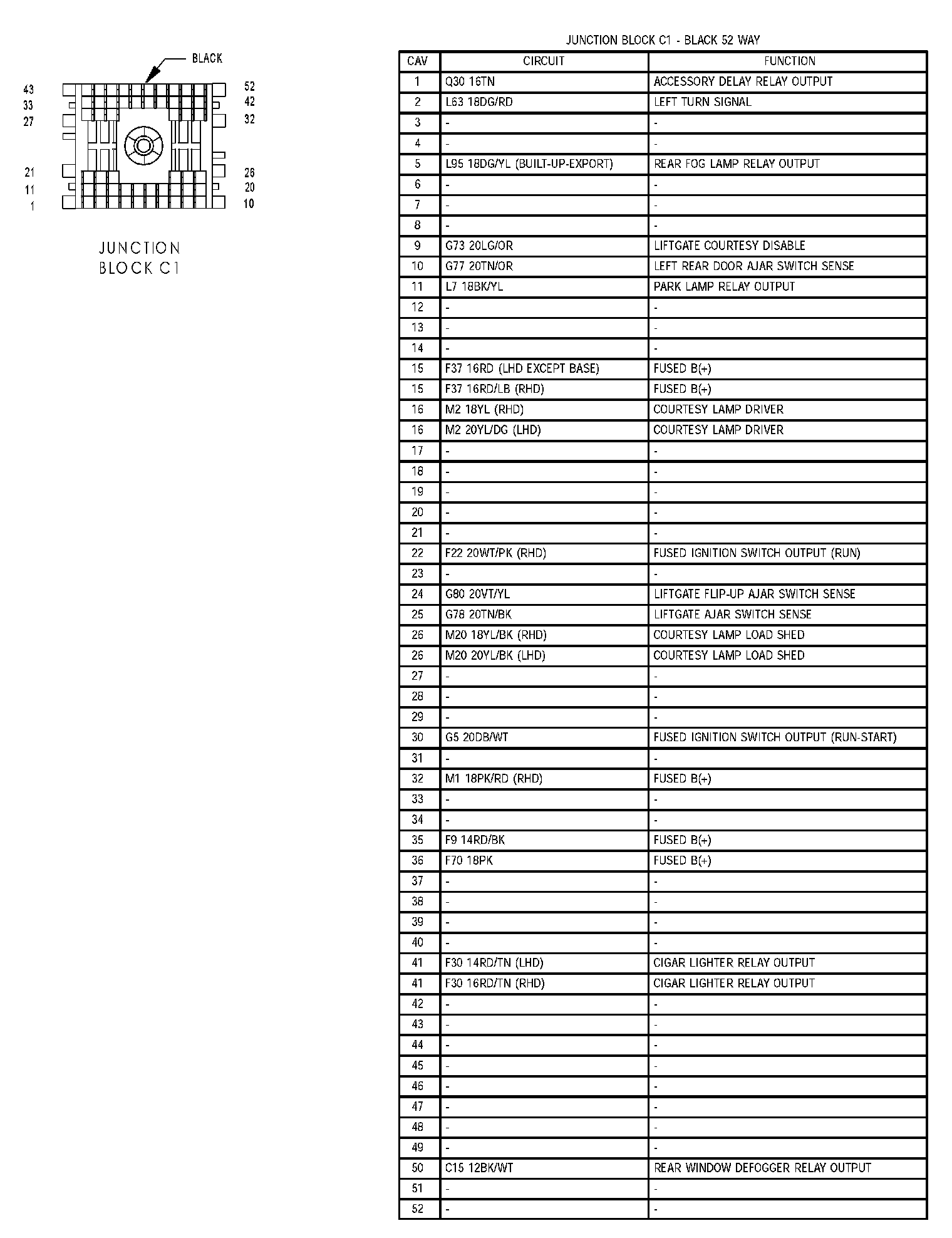

Junction Block C1:

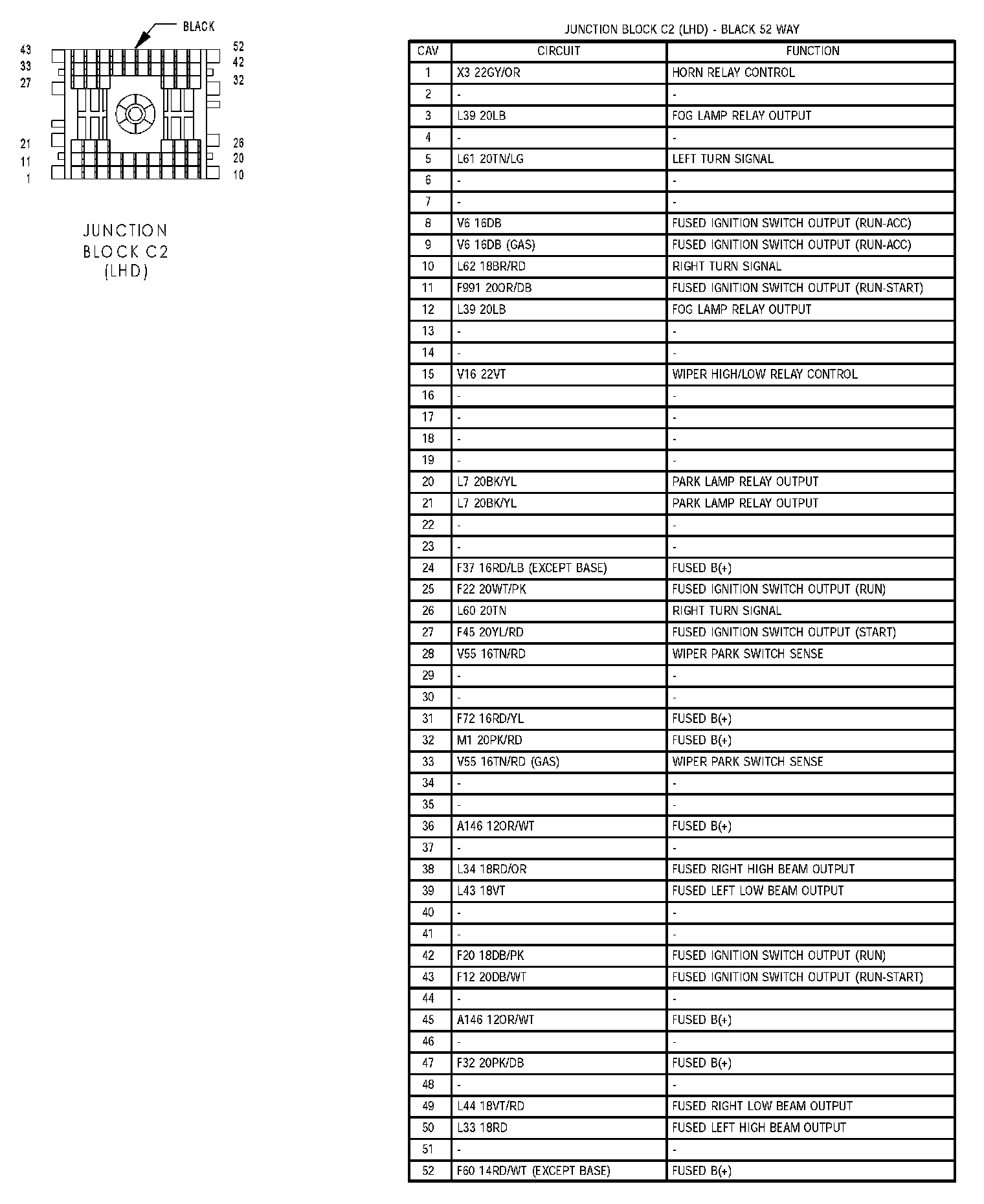

Junction Block C2 (LHD):

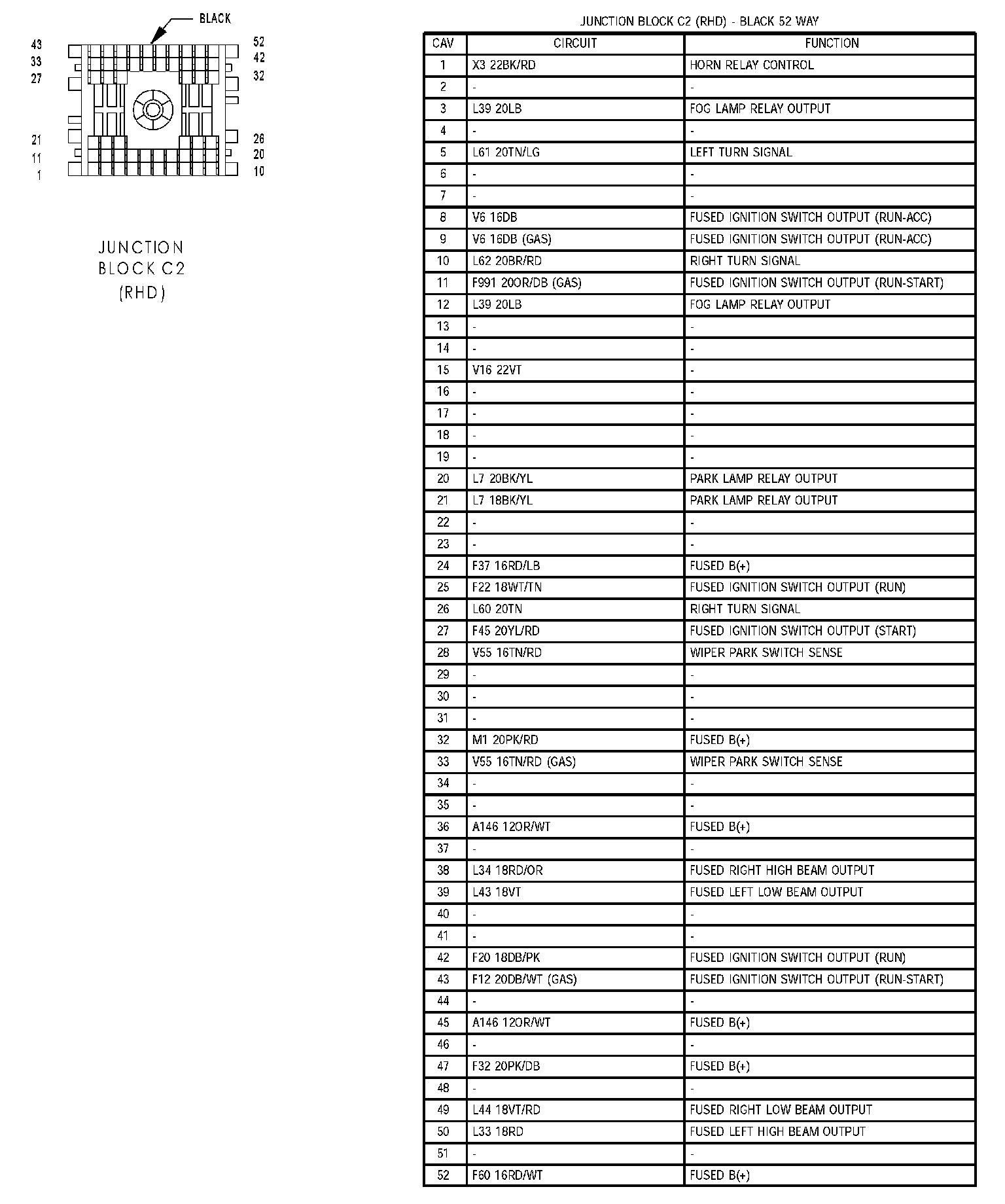

Junction Block C2 (RHD):

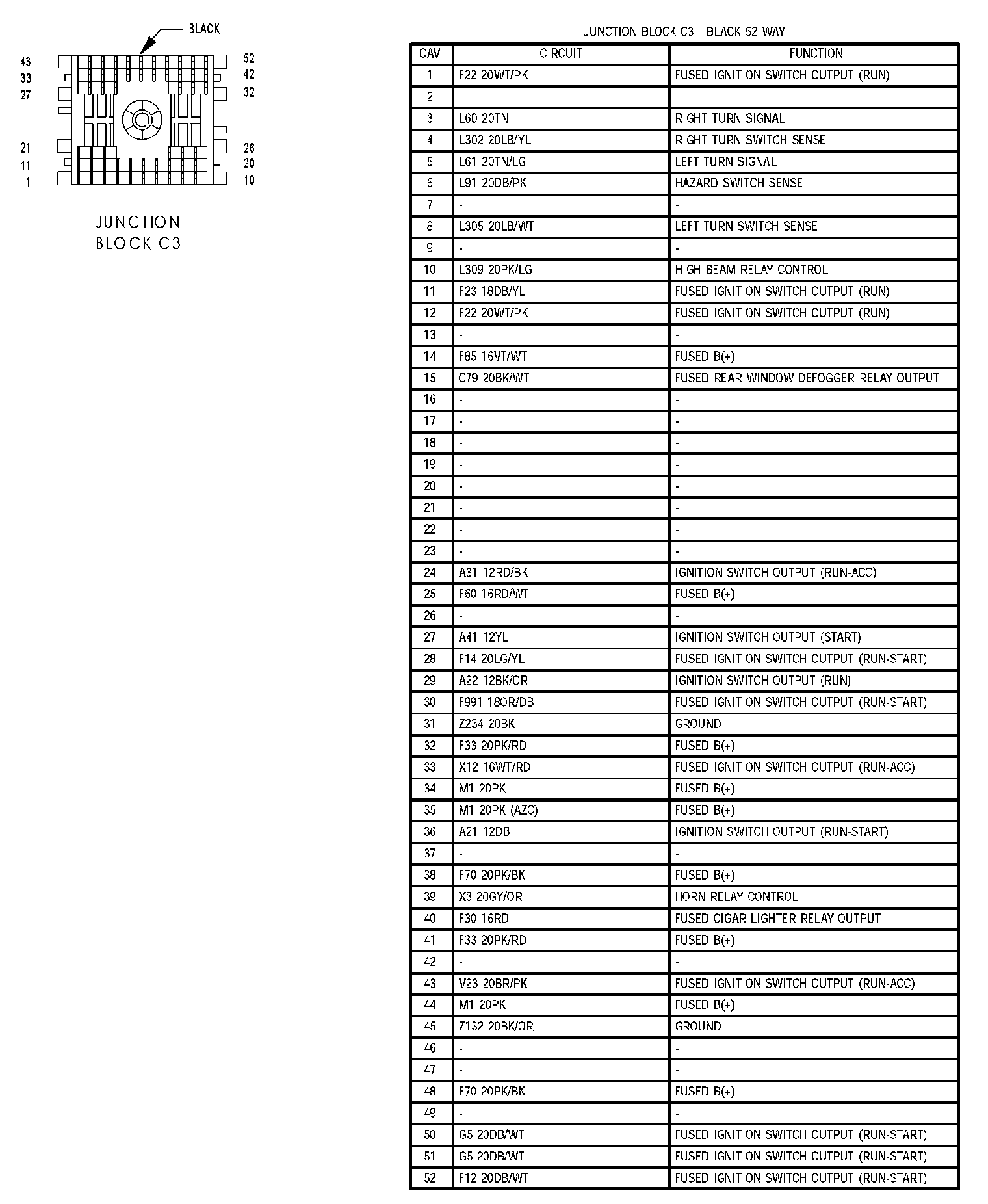

Junction Block C3:

Junction Block C4:

Junction Block C5:
