Rear Wheel Speed Sensor: Installation

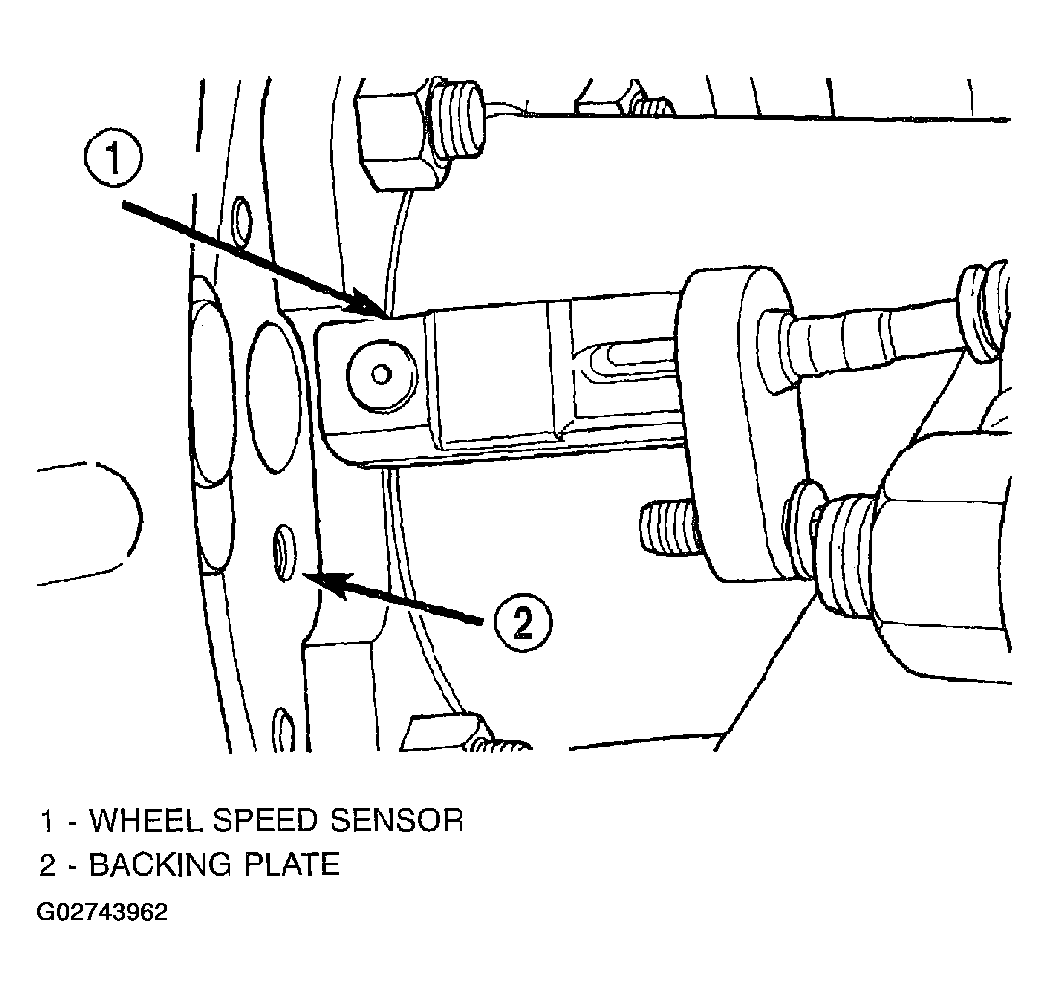

- Insert the sensor through the backing plate (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Apply Mopar Lock N' Seal or Loctite 242(R) to the original sensor bolt. Use a new bolt if the original is worn or damaged.
- Tighten the sensor bolt to 12-14 N.m (106-124 in. lbs.).
- Secure the sensor wire in the brackets and the retainers on the rear brake lines. Verify that the sensor wire is secure and clear of the rotating components.
- Route the sensor wires to the rear seat area.
- Feed the sensor wires the through floorpan access hole and seat the sensor grommets into the floorpan.
- Remove the support and lower the vehicle.
- Fold the rear seat and carpet forward for access to the sensor wires and connectors.
- Connect the sensor wires to the harness connectors.
- Reposition the carpet and fold the rear seat down.
