Antenna Module - Export: Description
WARNING: This page is about a different car, the 2003 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

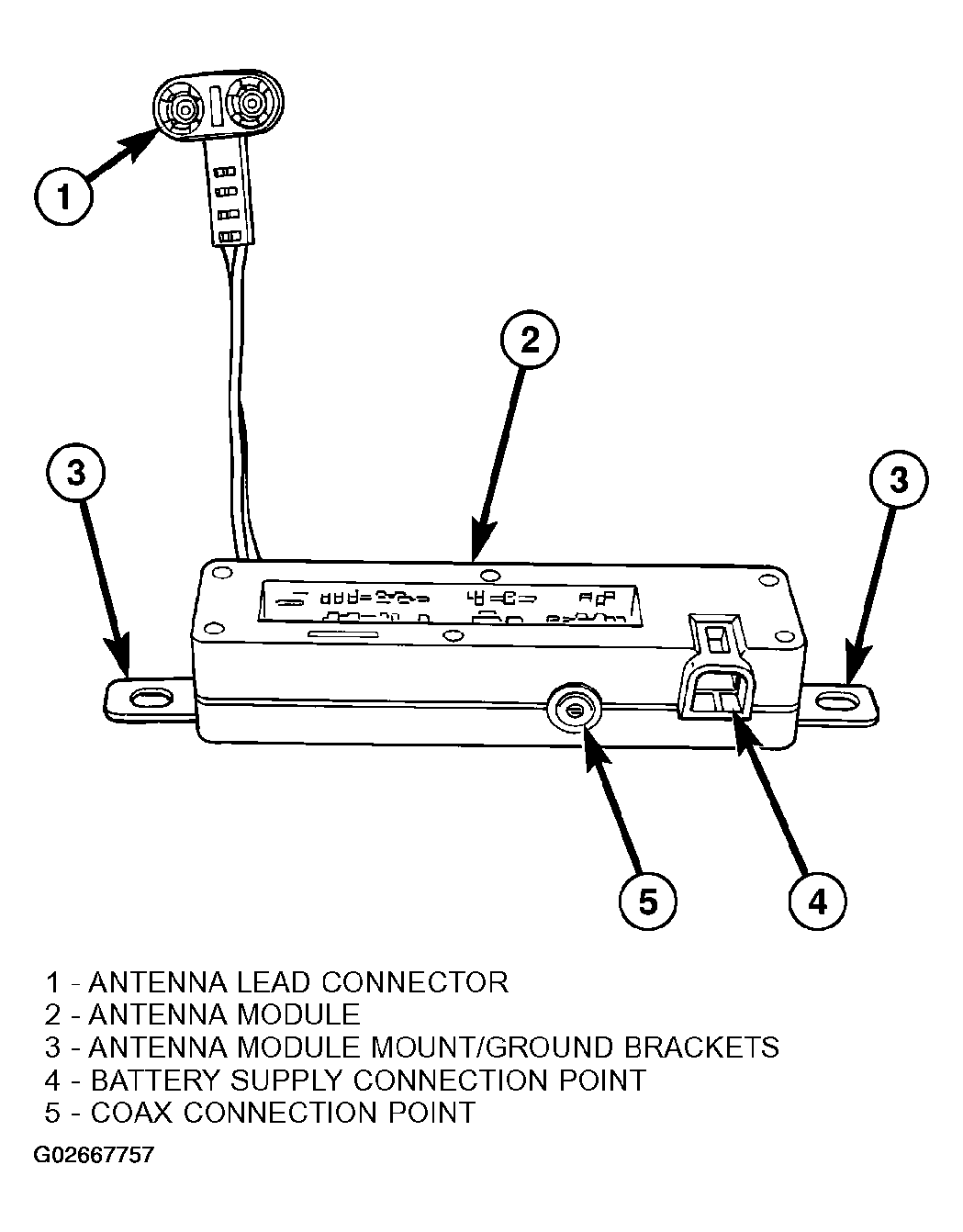

The antenna module is an electromagnetic circuit component designed to capture and enhance RF (Radio Frequency) signals in both the AM and FM broadcast bands (Fig 1 ). The antenna module is mounted to the right rear roof rail under the headliner. The module's mounting brackets also double as the ground circuit. The module has a two-wire electrical connector that connects to the electric backlite integral radio antenna (located on the right rear quarter glass), a connector for the radio coax cable and a connector for battery voltage.
