Heated Seat Module

  1. Working under the front seat cushion, remove the heated seat module from its mounting bracket by gently prying the module off of the 2 mounting pushpins. See Fig 1 .
  2. Disconnect the seat wire harness connector from the connector receptacle on the side of the heated seat module.
  3. Remove the heated seat module from the vehicle.
  4. To install, reverse removal procedure.

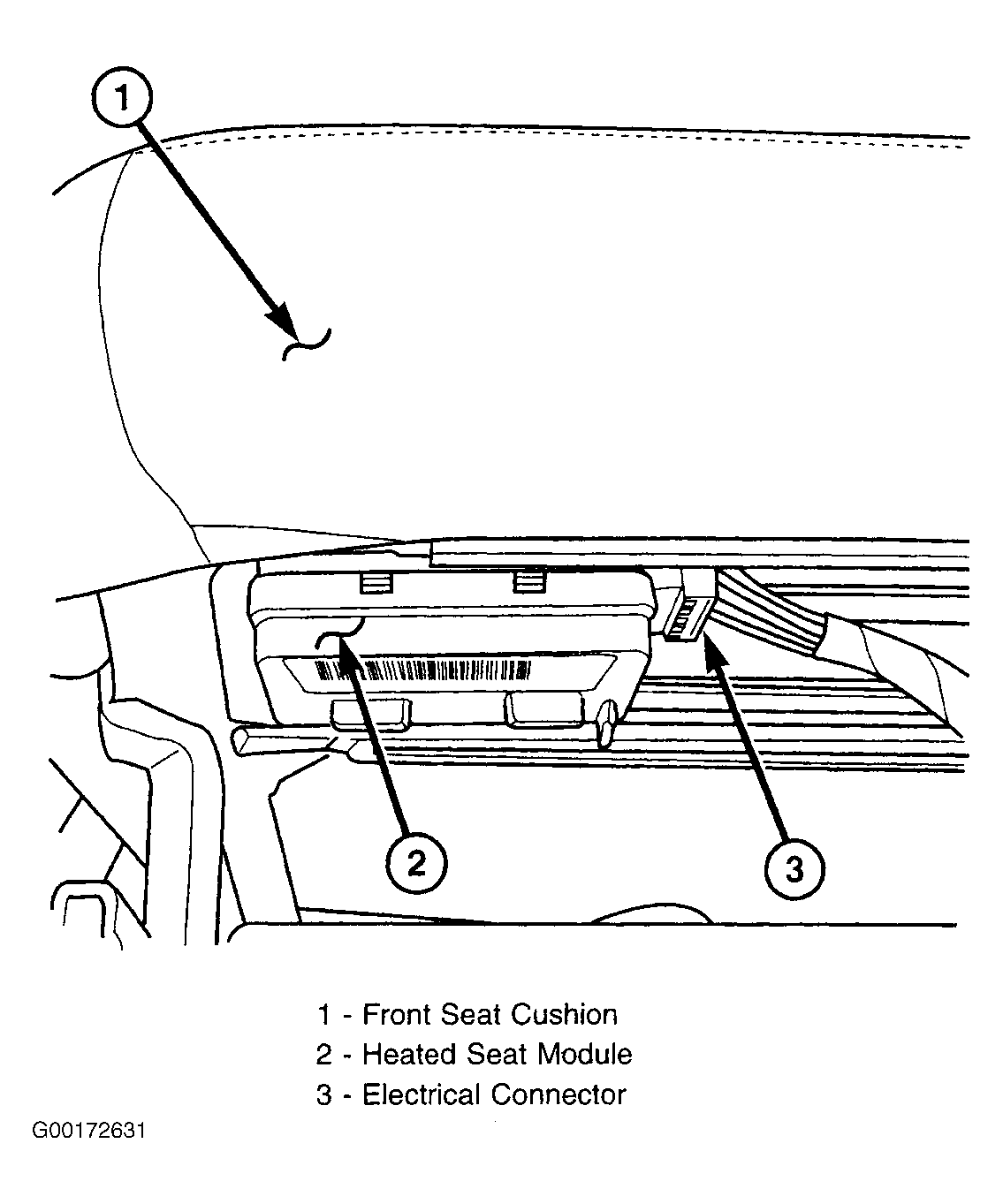

Fig 1: Locating Heated Seat Module
G00172631Courtesy of CHRYSLER CORP.
