Starting System

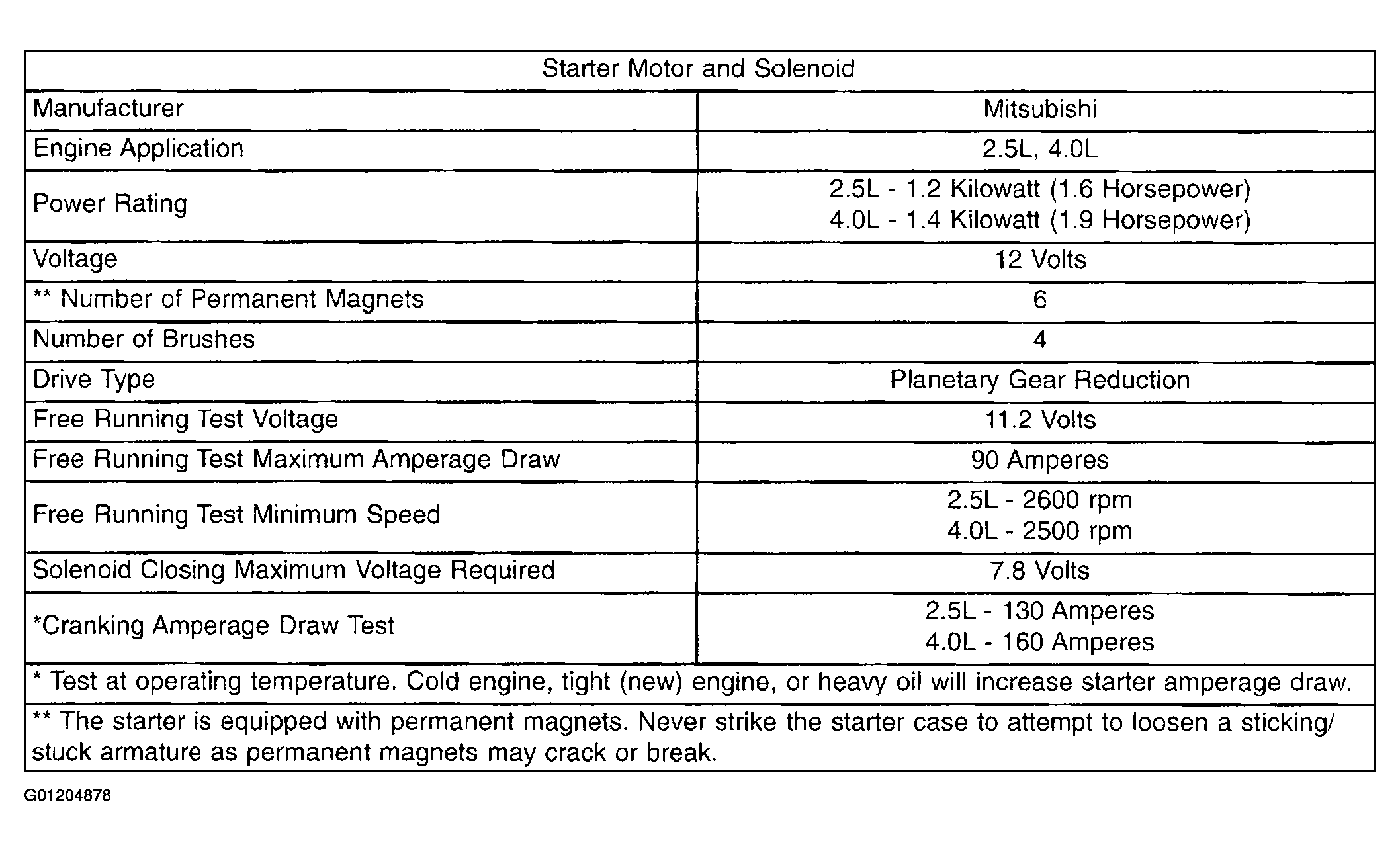

Fig 1: Starting Motor & Solenoid Specifications
G01204878Courtesy of DAIMLERCHRYSLER CORP.
