Steering System Linkage: Linkage: Specifications

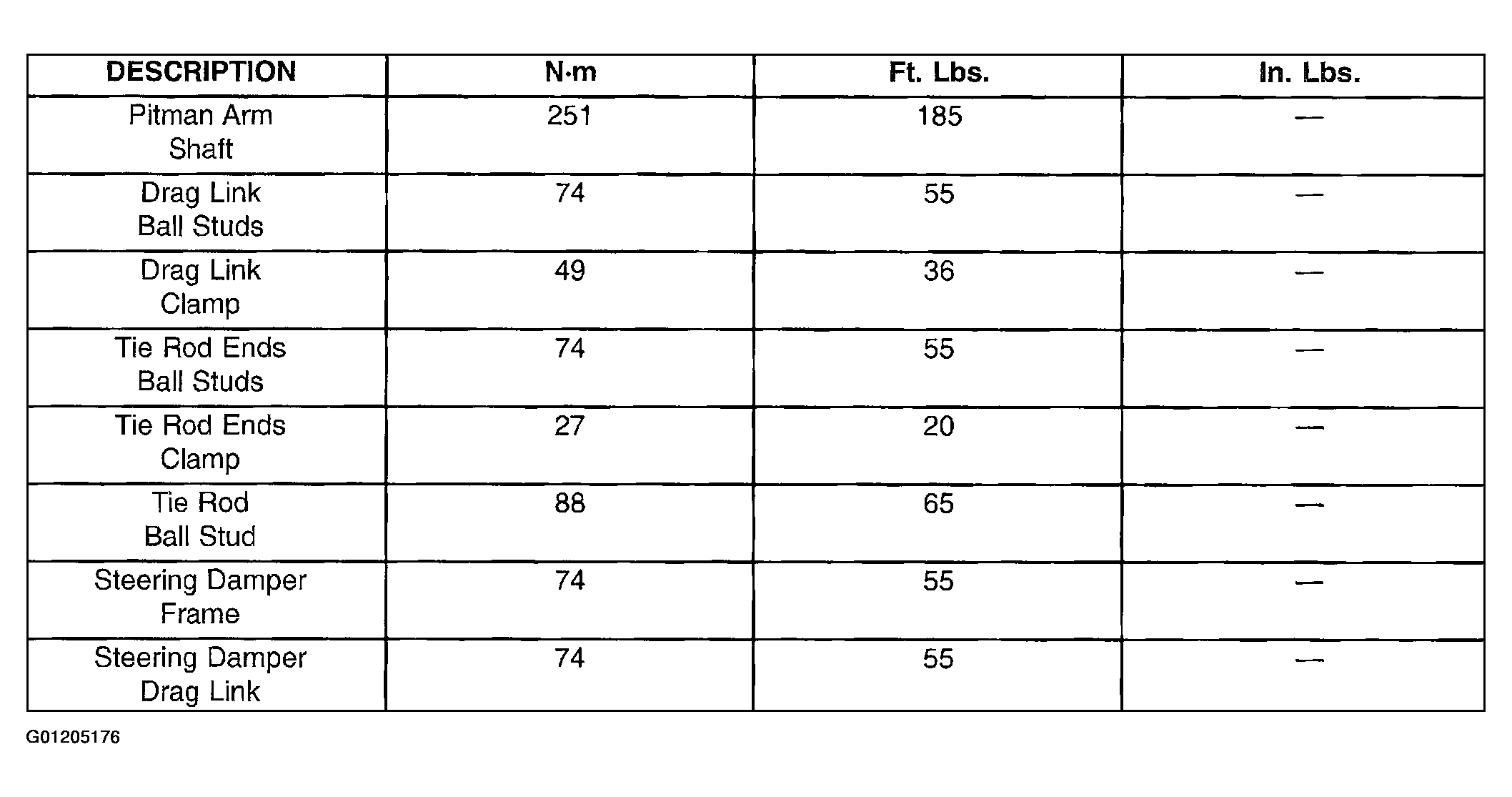

Fig 1: Steering Linkage Torque Specifications

G01205176

Courtesy of DAIMLERCHRYSLER CORP.
