Chime Sounds With Driver Seat Belt Fastened

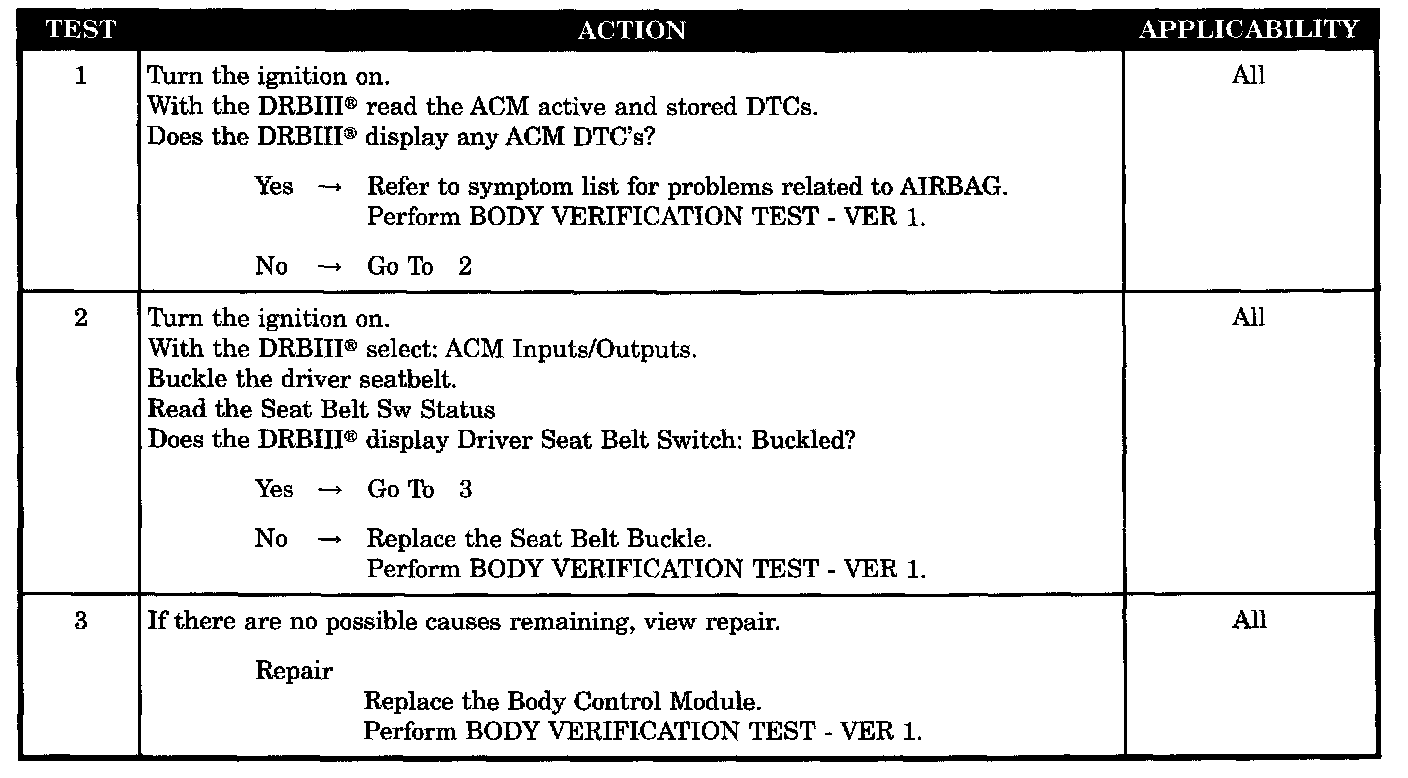

Test 1 - 3:
SYMPTOM
CHIME SOUNDS WITH DRIVER SEAT BELT FASTENED
POSSIBLE CAUSES
-
Airbag control module DTC's
-
Seat belt buckle
-
Body control module
