A/C Operates With A/C Select Switch Off

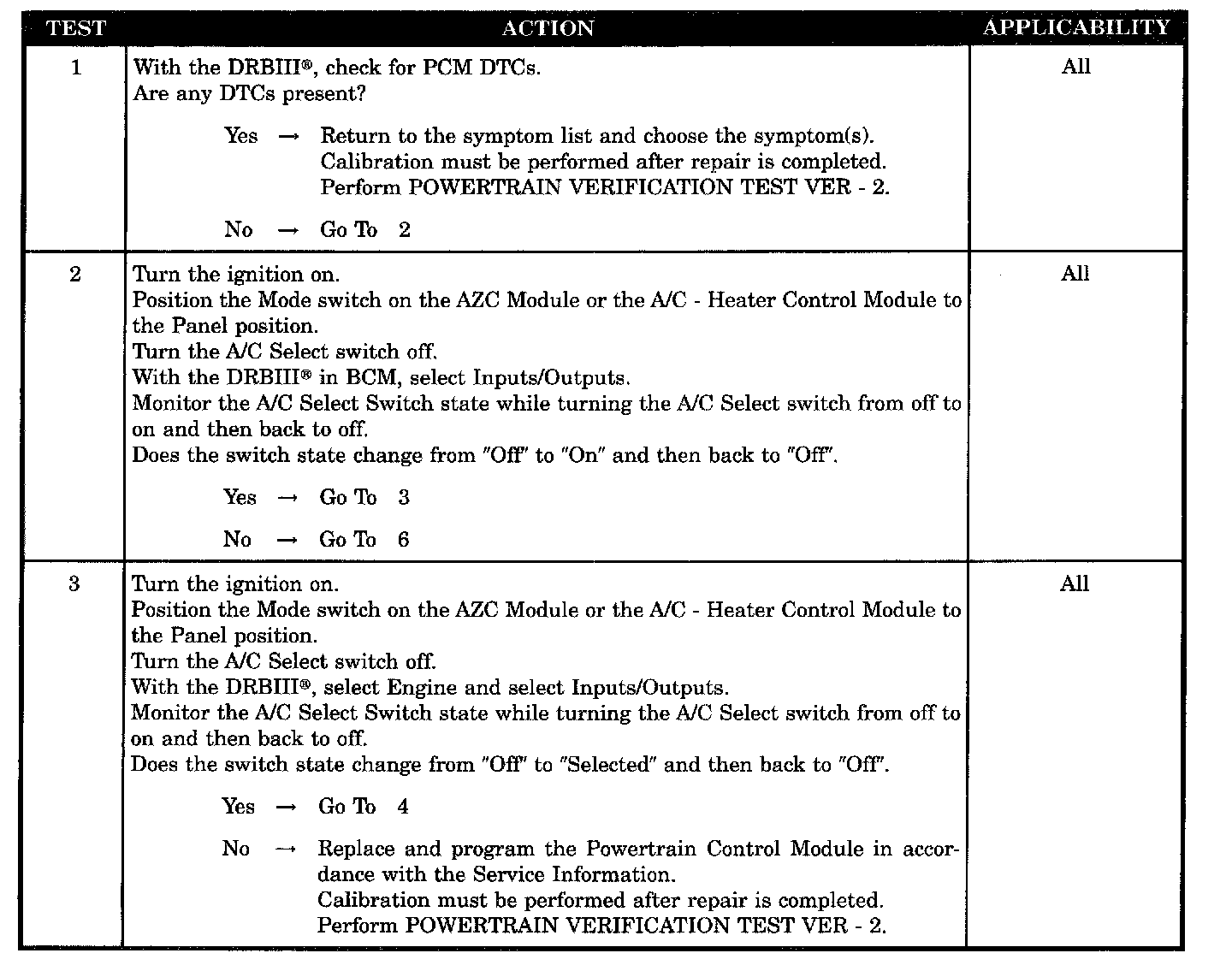

Test 1 - 3:

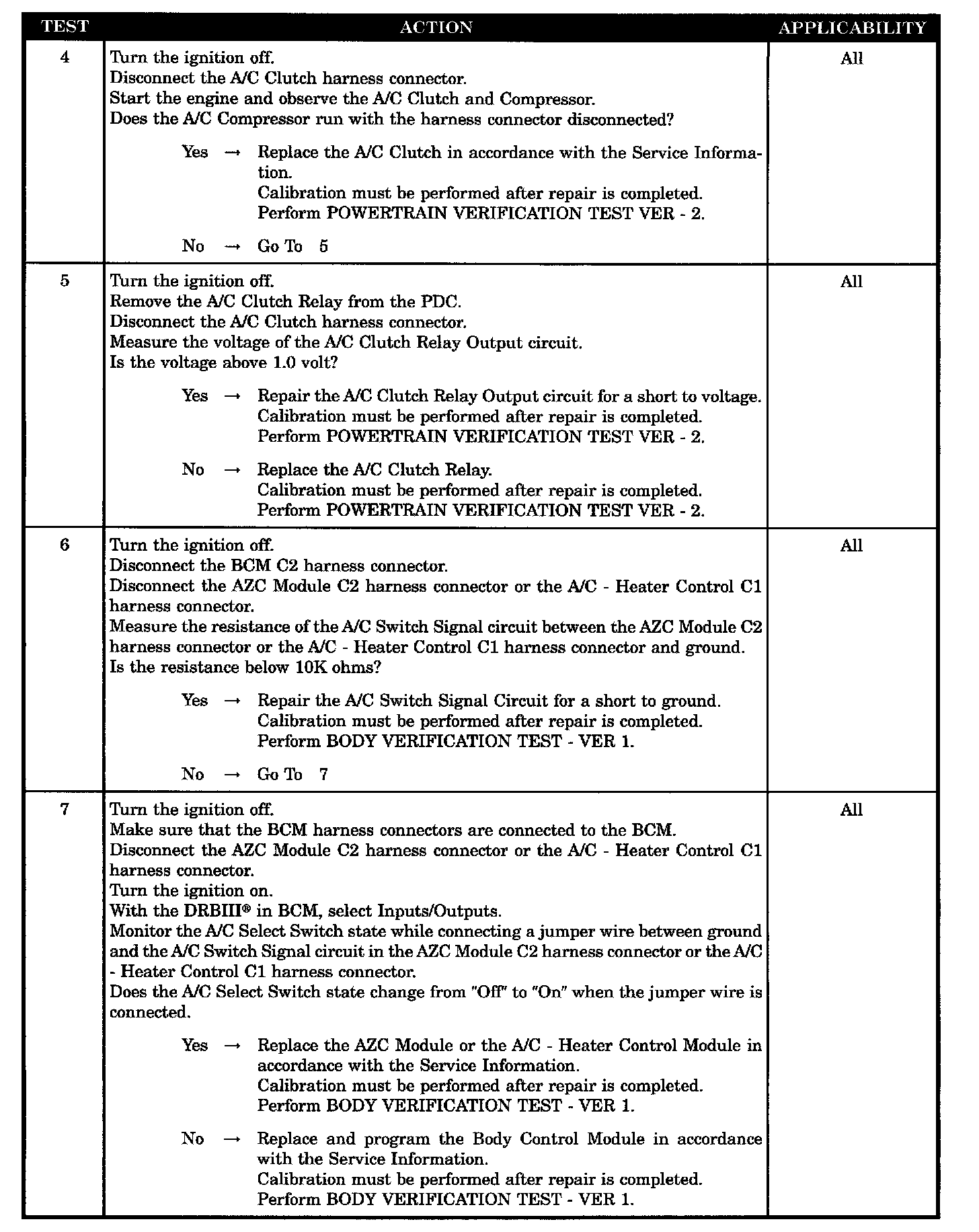

Test 4 - 7:

SYMPTOM
A/C OPERATES WITH A/C SELECT SWITCH OFF

POSSIBLE CAUSES
- Check for PCM DTCs
- Powertrain control module
- A/C clutch
- A/C clutch relay output circuit shorted to voltage
- A/C clutch relay
- Check A/C switch signal circuit for a short to ground
- AZC module or A/C - heater control module
- Body control module
