Power Window Switch: Installation

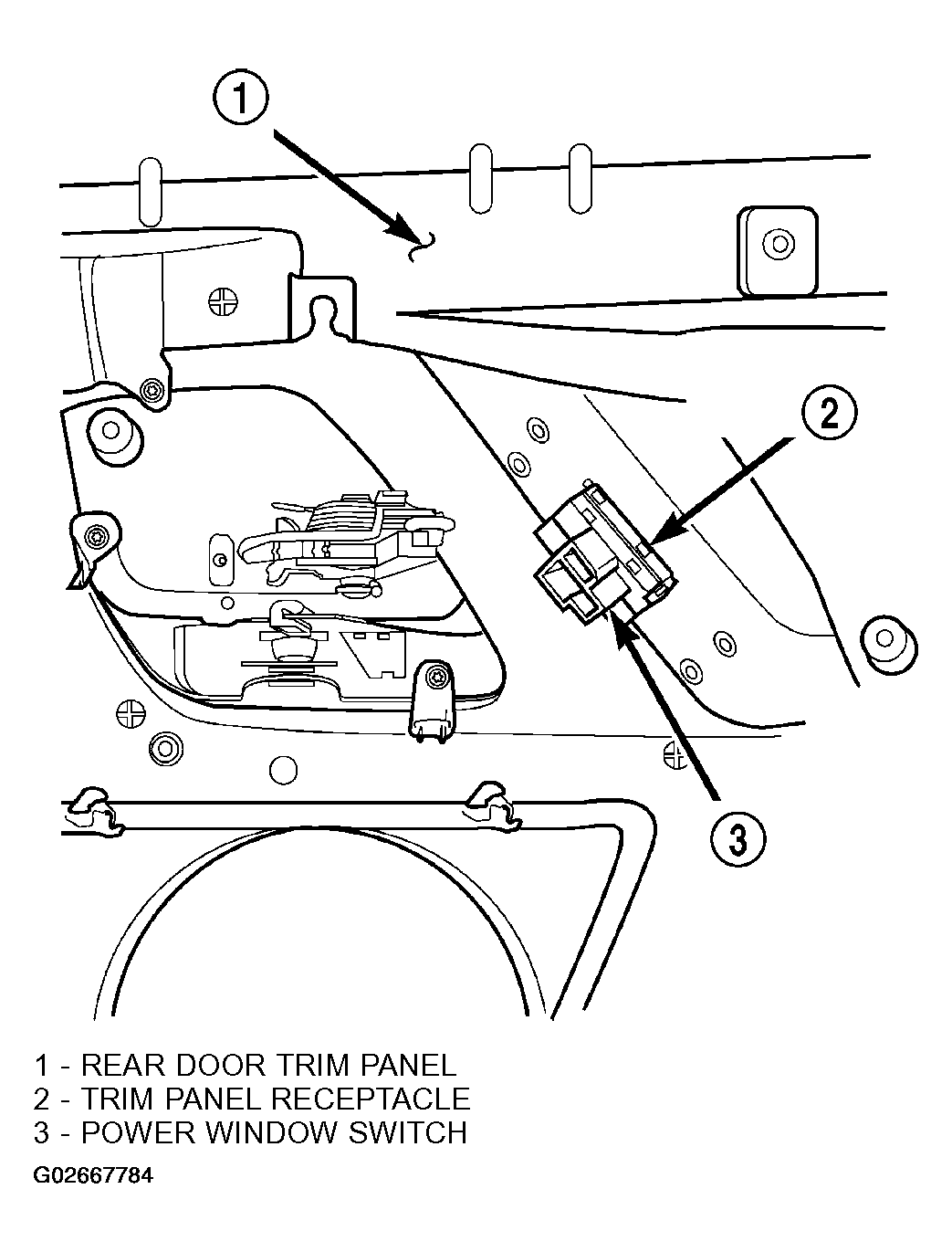

  1. Position the power window switch to the rear door trim panel switch receptacle (Refer to Figure ).
  2. Press firmly and evenly on the back of the power window switch until it snaps into rear door trim panel switch receptacle.
  3. Install the trim panel onto the rear door. Refer to TRIM PANEL for the procedures.
  4. Reconnect the battery negative cable.
