Body Control Module C1 - Gray 26 Way Connector End View

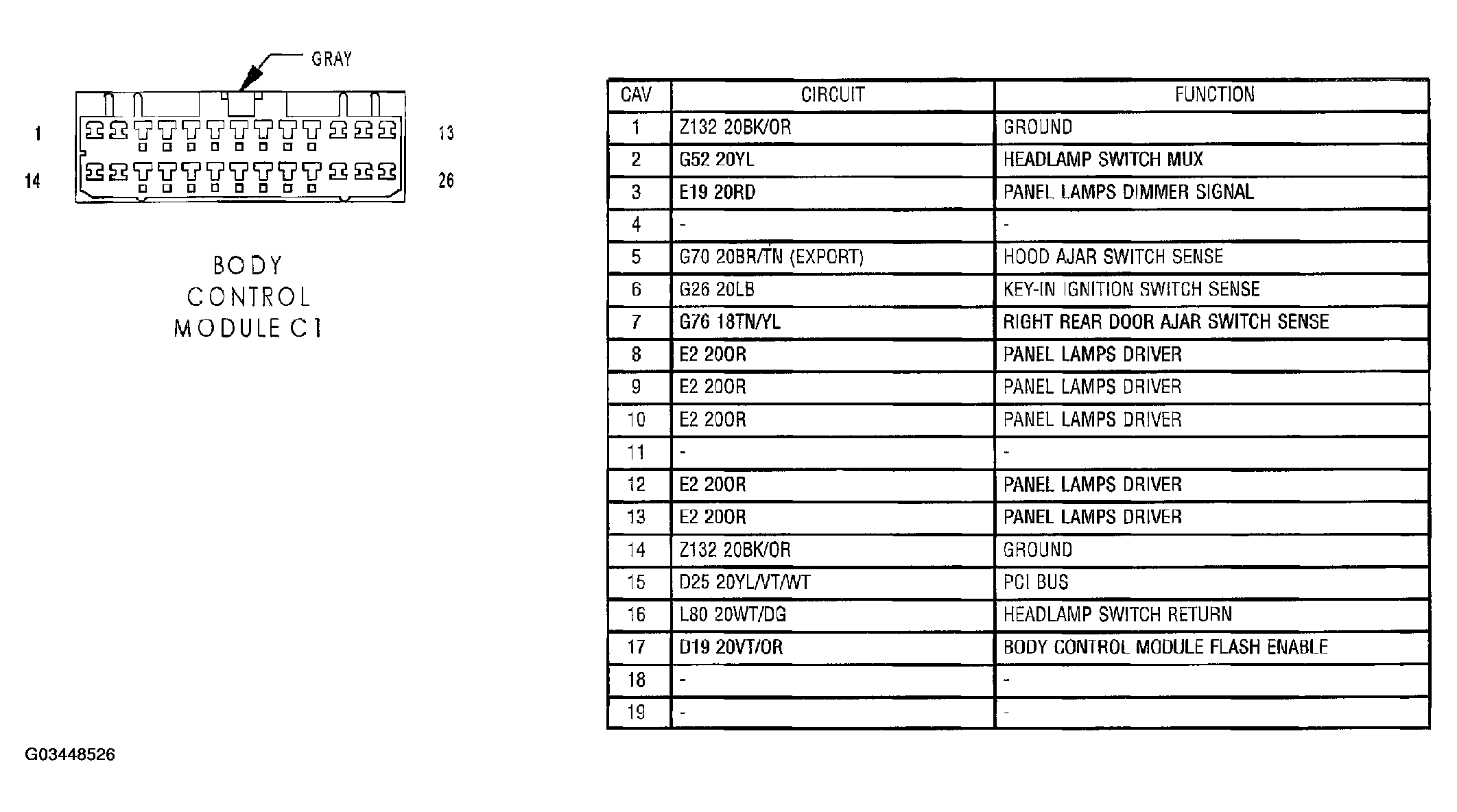

Fig 1: Body Control Module Connector End View (C1) (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

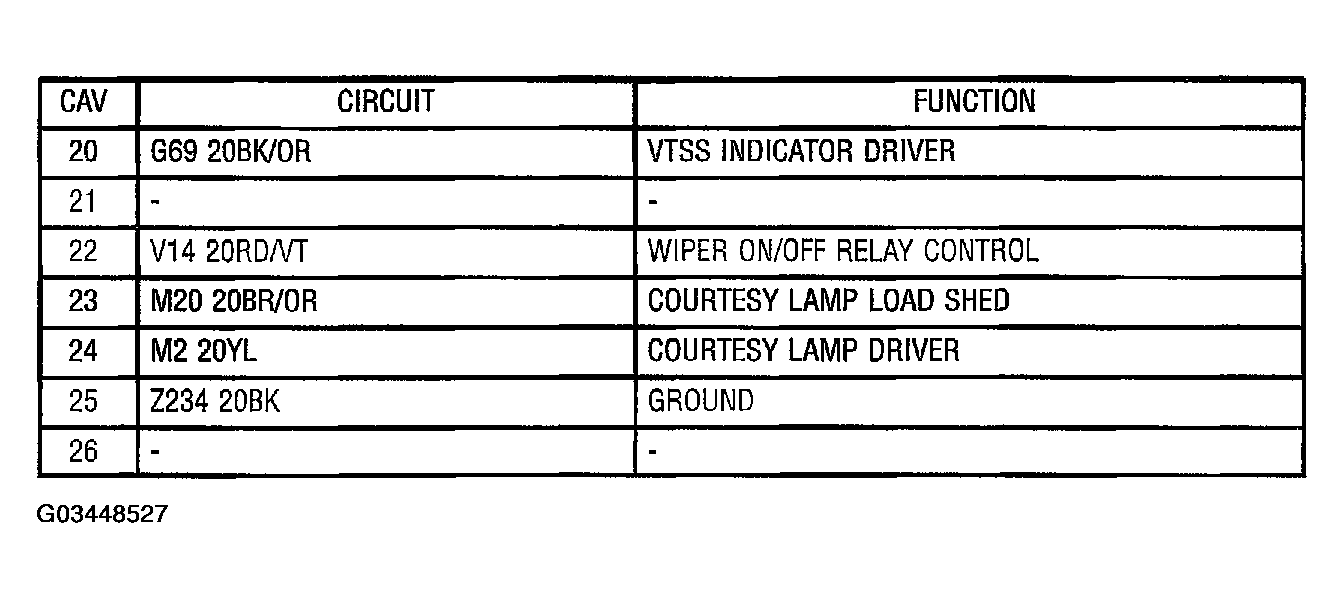

Fig 1: Body Control Module Connector End View (C1) (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
