Engine Control Module C2 (Diesel) - Black 40 Way Connector End View

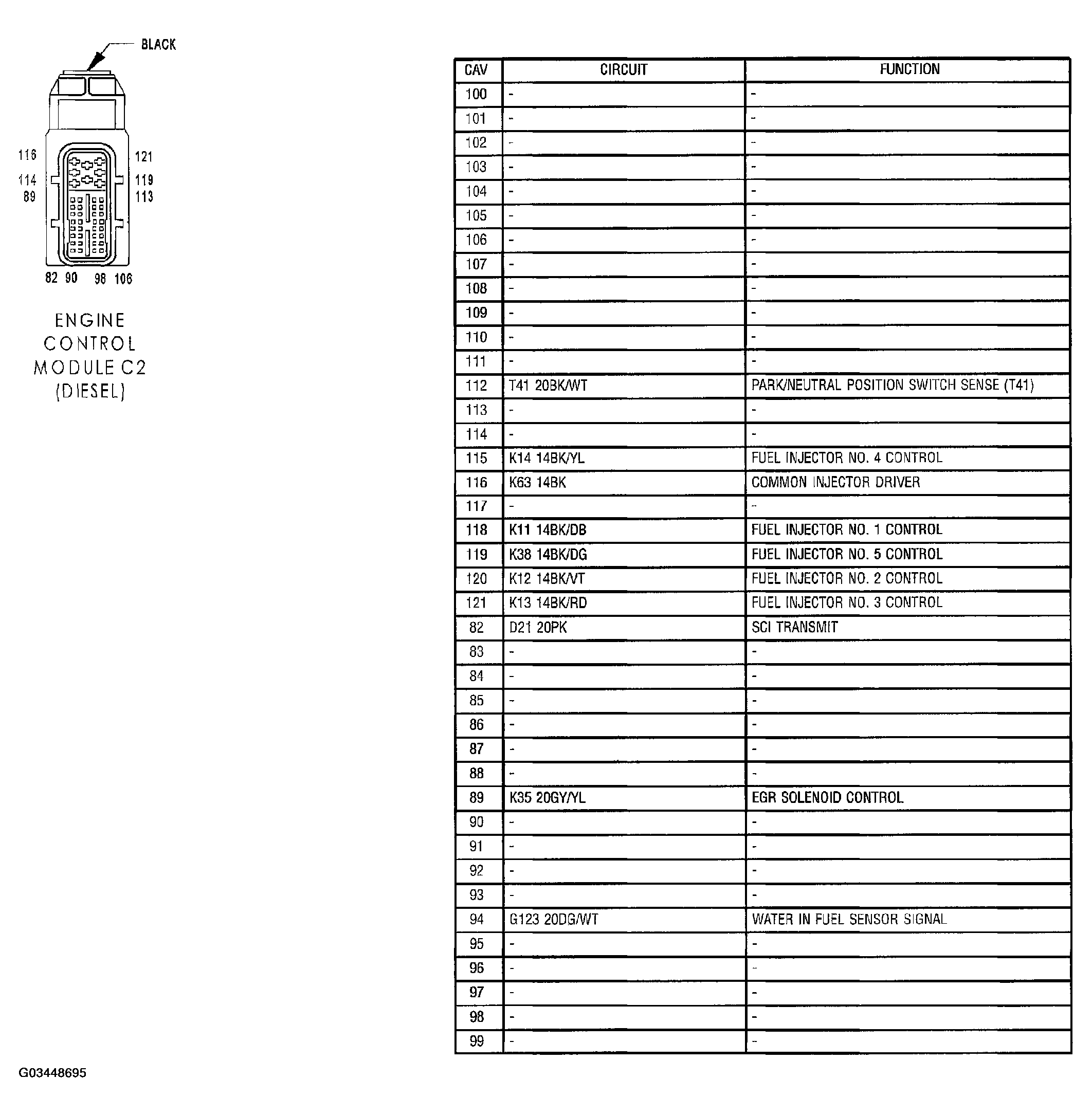

Fig 1: Engine Control Module (Diesel) Connector End View (C2)
G03448695Courtesy of DAIMLERCHRYSLER CORP.
