Junction Block Body Control Module - Black 26 Way Connector End View

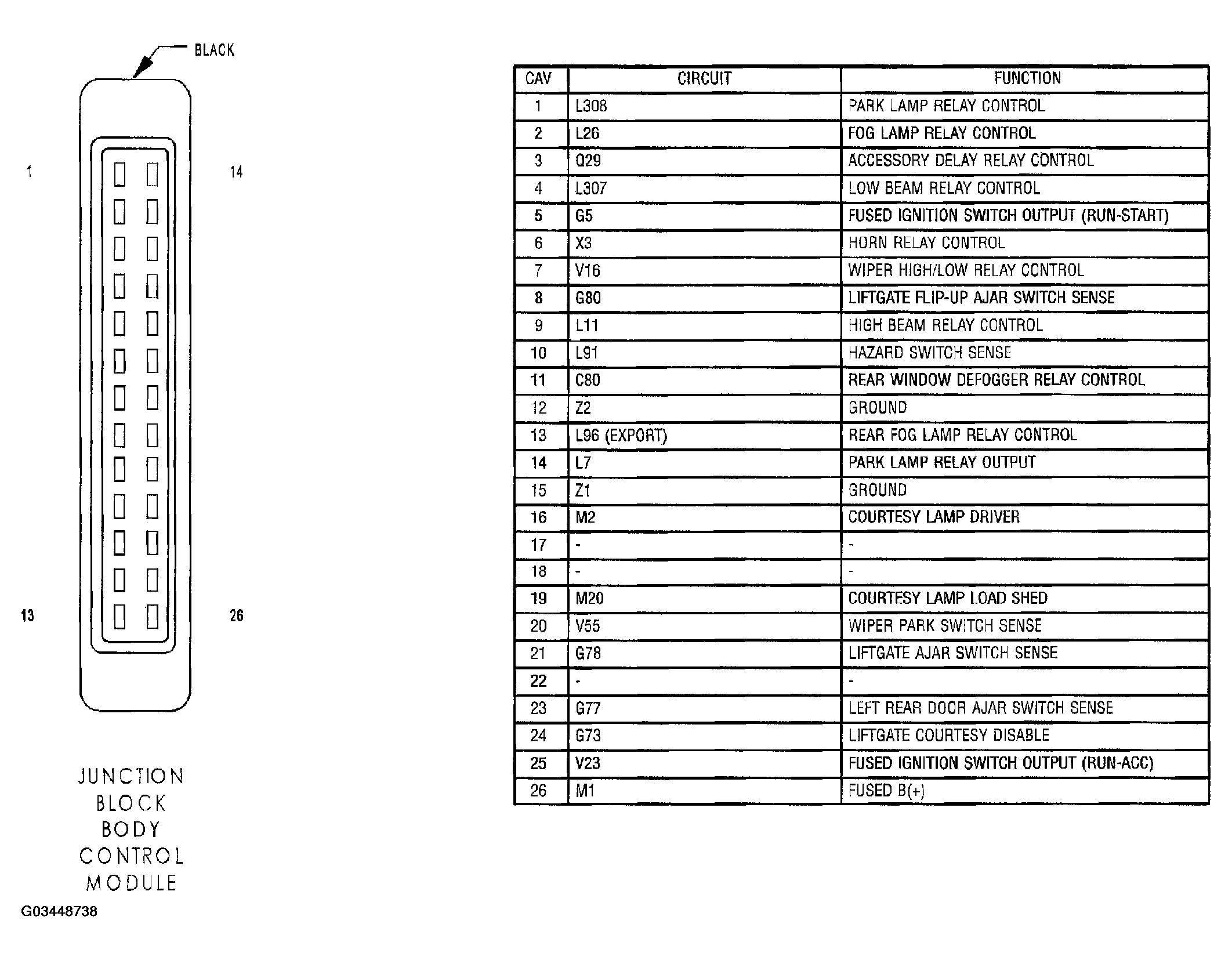

Fig 1: Junction Block Body Control Module Connector End View
G03448738Courtesy of DAIMLERCHRYSLER CORP.
