Left Multi-Function Switch - White 11 Way Connector End View

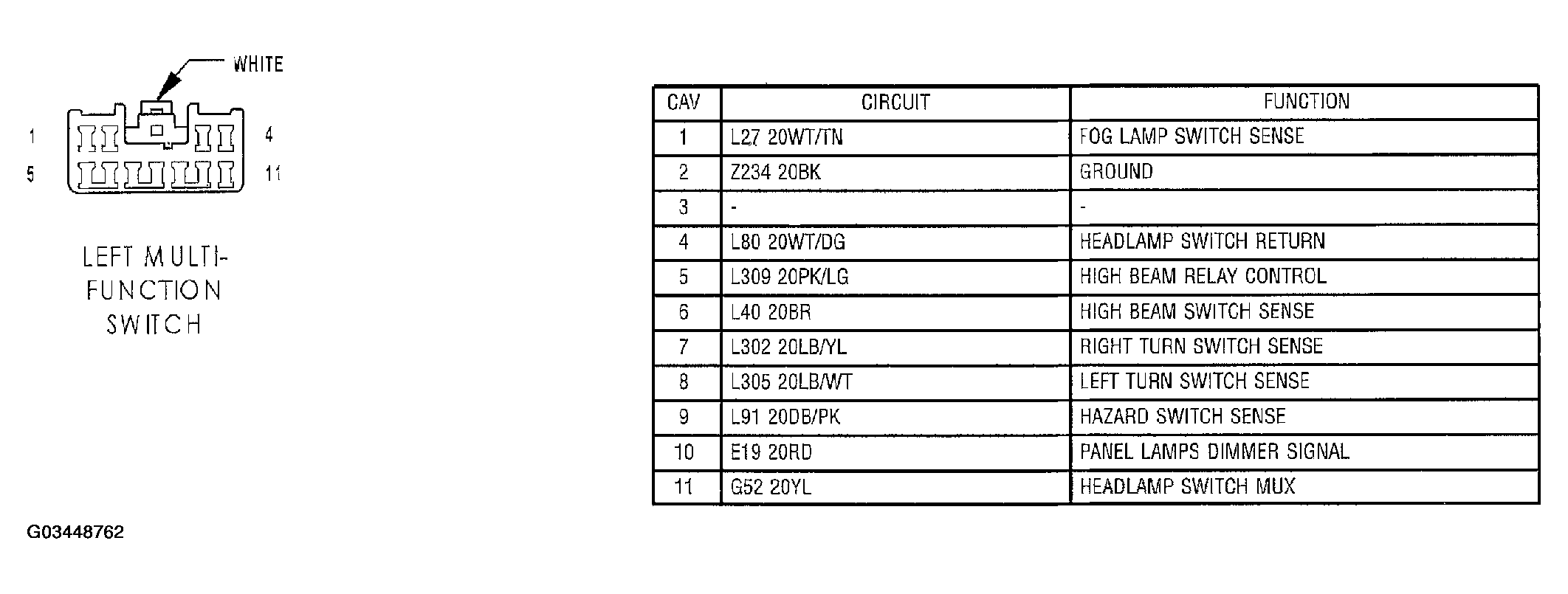

Fig 1: Left Multifunction Switch Connector End View
G03448762Courtesy of DAIMLERCHRYSLER CORP.
