Powertrain Control Module C3 (Gas) - Gray 32 Way Connector End View

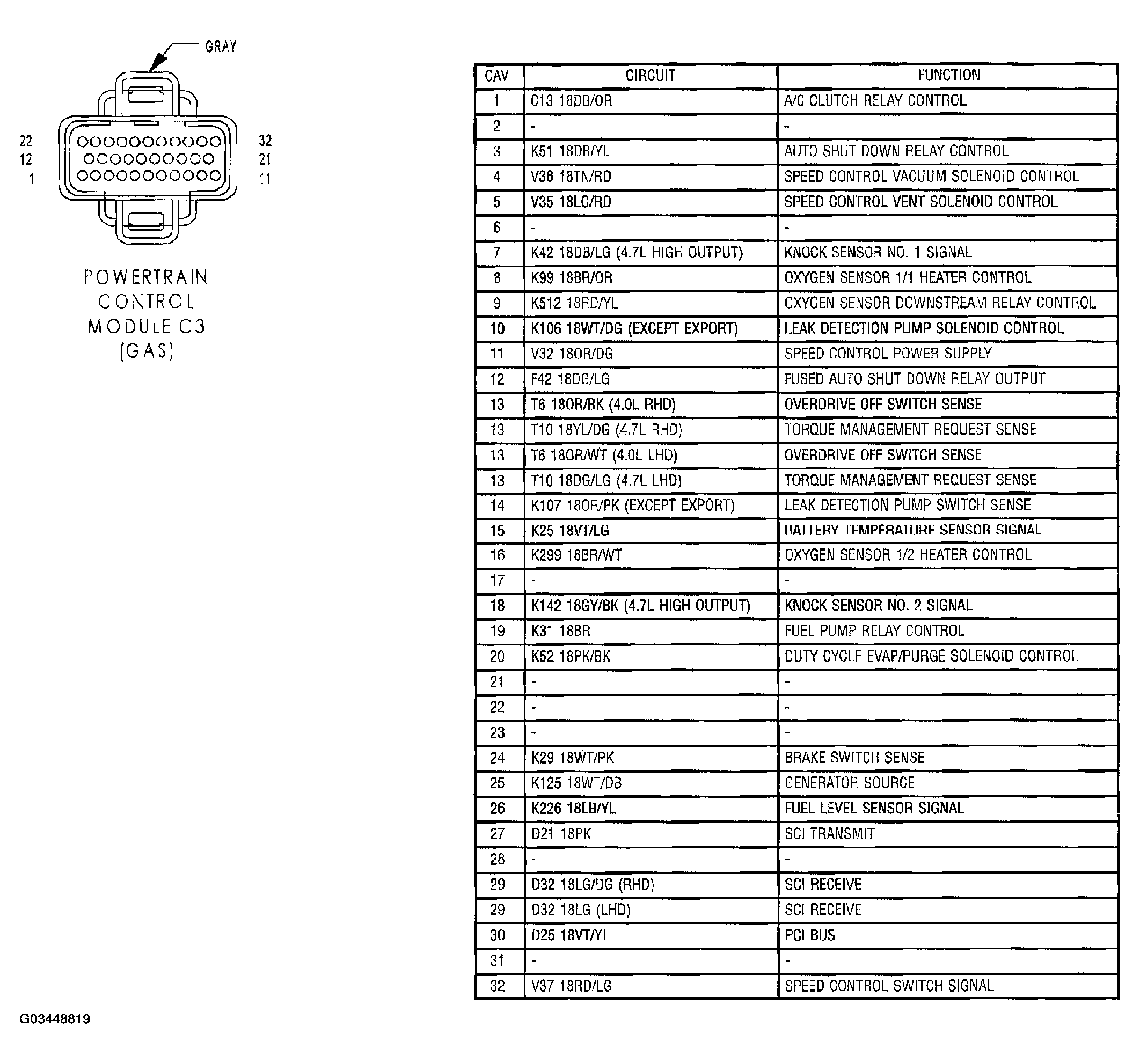

Fig 1: Powertrain Control Module (Gas) Connector End View (C3)
G03448819Courtesy of DAIMLERCHRYSLER CORP.
