Sunroof Control Module - 8 Way Connector End View

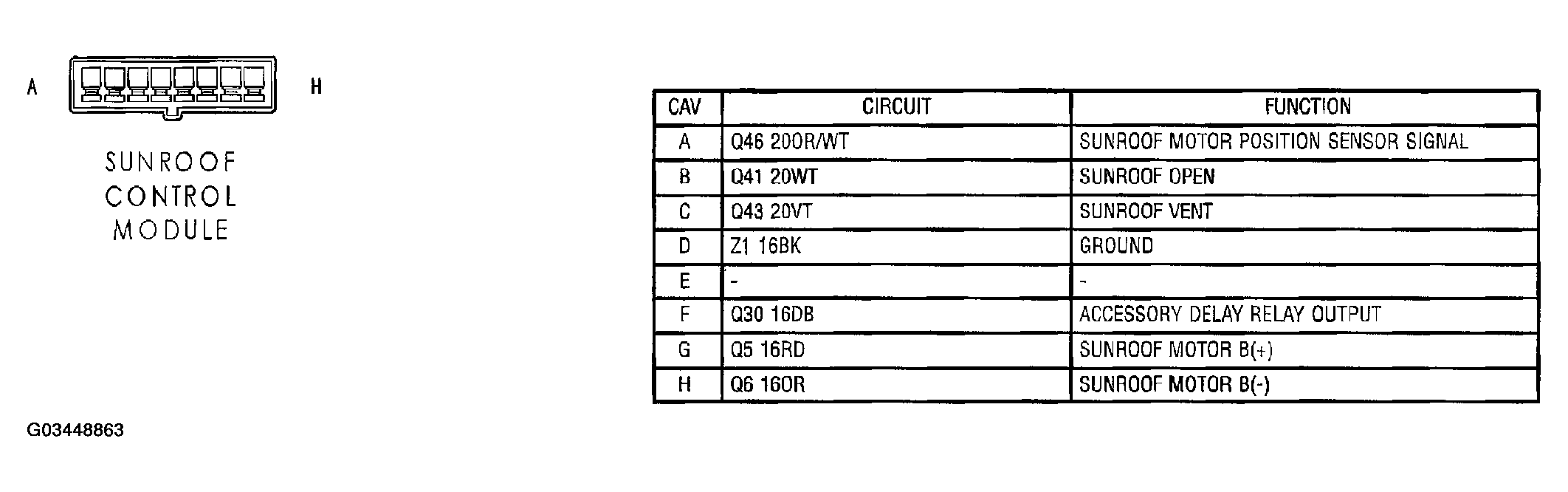

Fig 1: Sunroof Control Module Connector End View
G03448863Courtesy of DAIMLERCHRYSLER CORP.
