Alignment Specifications

For wheel alignment specifications, see Fig 1 .

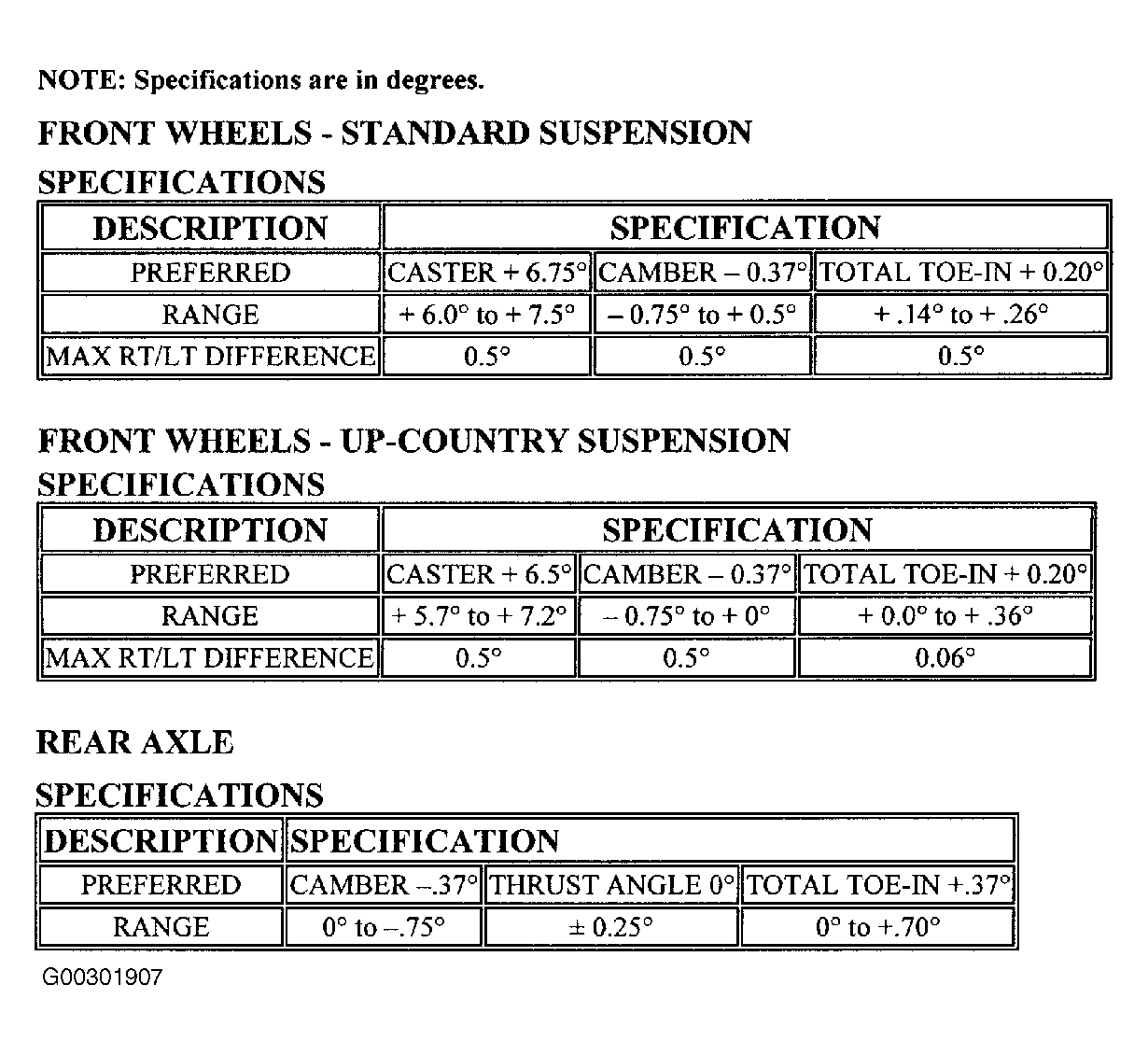

Fig 1: Wheel Alignment Specifications
G00301907Courtesy of DAIMLERCHRYSLER CORPORATION
