Compass/Mini-Trip Computer Replacement

REMOVAL
1. Remove overhead console, refer to Console Removal and Installation in this section.

OTIS Removal:

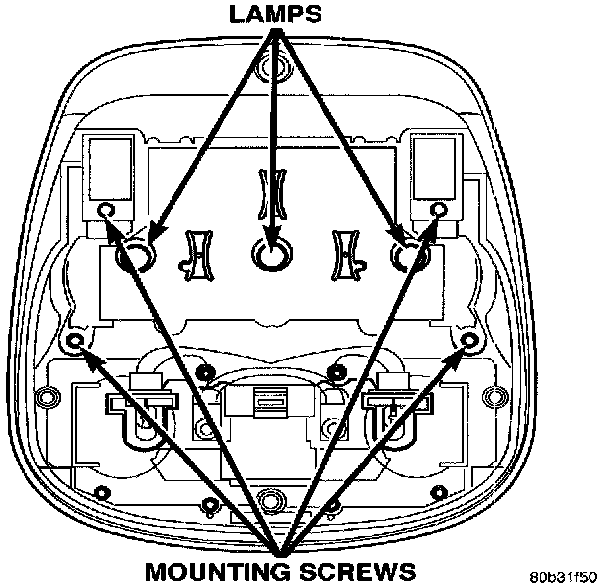

2. Remove mounting screws and release the map lamp wire connector from the compass mini-trip computer..
3. Remove the compass mini-trip computer from the overhead console.

INSTALLATION
1. Install the compass mini-trip computer in the overhead console. Align the compass mini-trip computer guides on the housing with the grooves of the console.
2. Install the mounting screws and install the map lamp wire connector on the compass mini-trip computer. Make sure the LOOP of wire that was clipped into the compass mini-trip computer module housing is properly clipped into the new module before the console is placed back into the headliner.
3. Install the overhead console, refer to Console Installation in this section.
