Component Locations

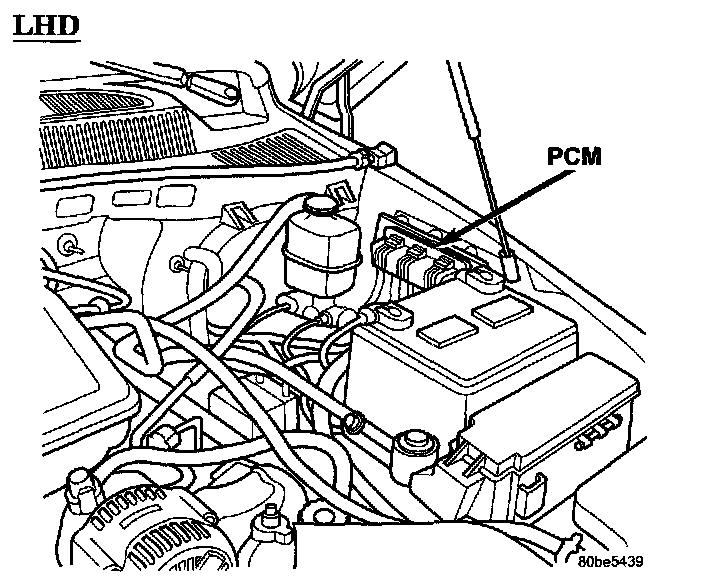

LHD:

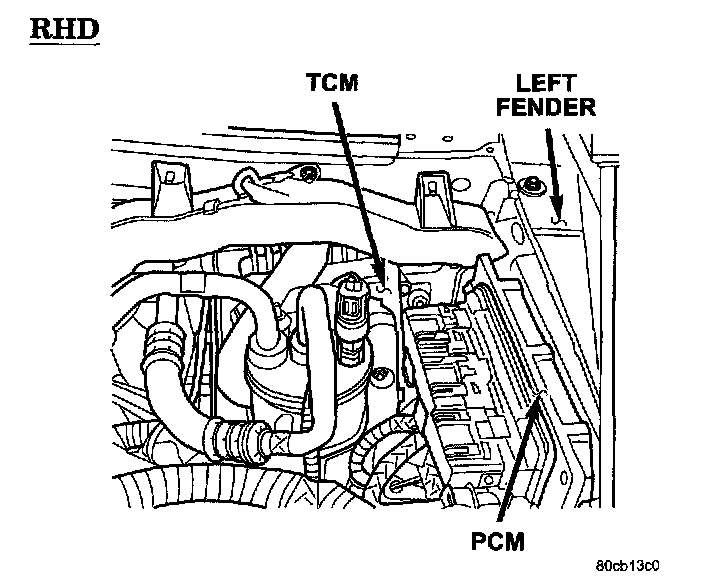

RHD:




The Powertrain Control Module (PCM) is located in the engine compartment.
