Engine Control Module

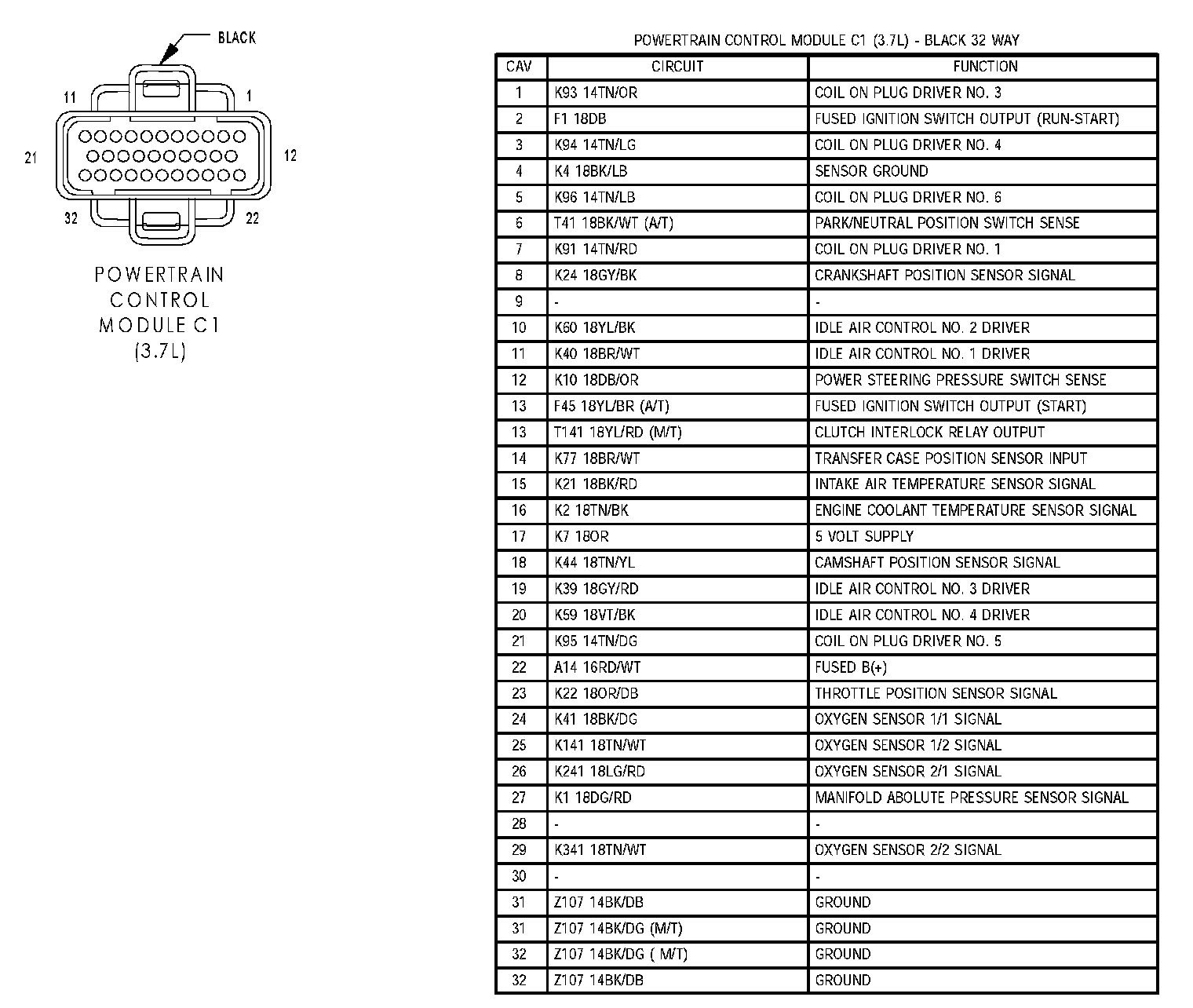

Powertrain Control Module C1 (3.7L):
Powertrain Control Module C2:
Powertrain Control Module C3:
