Complete Engine Specifications

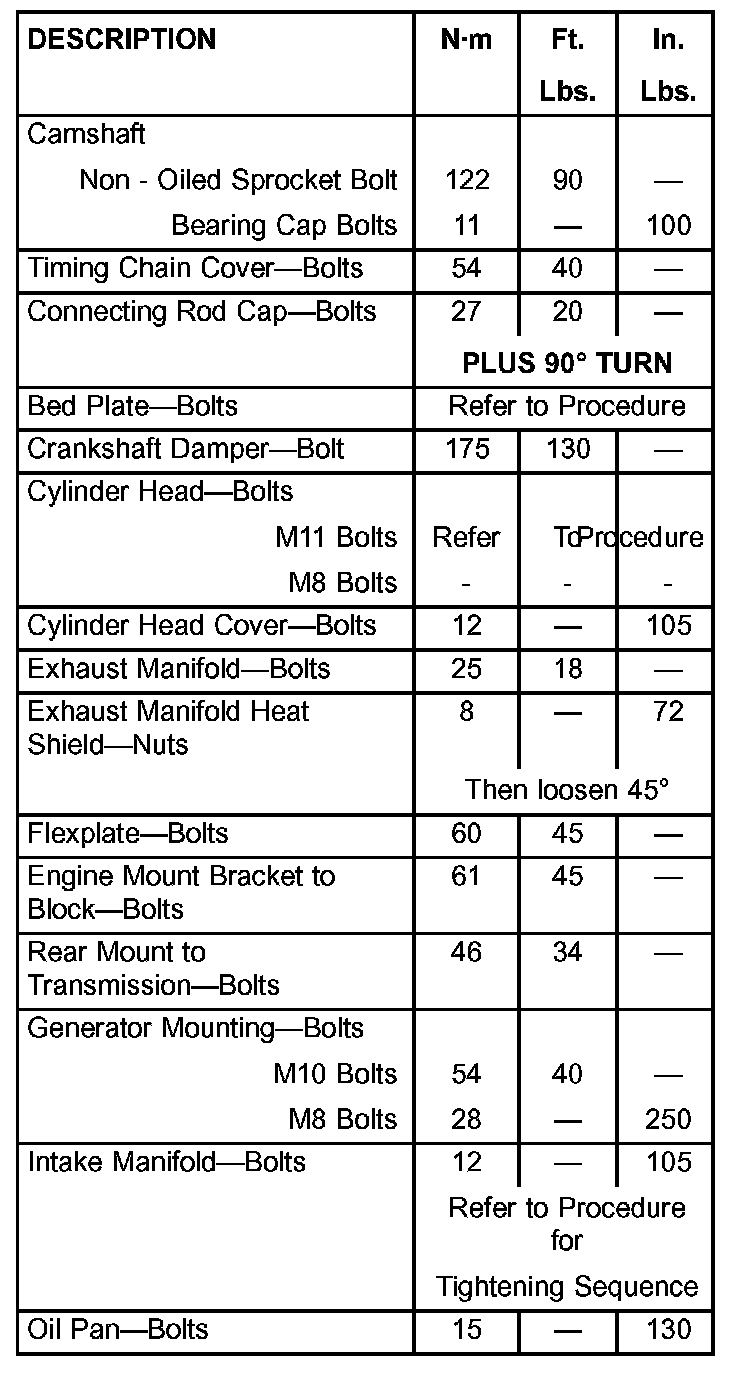

TIGHTENING SPECIFICATIONS





Cooling System





Engine (Part 1 of 2)





Engine (Part 2 of 2)

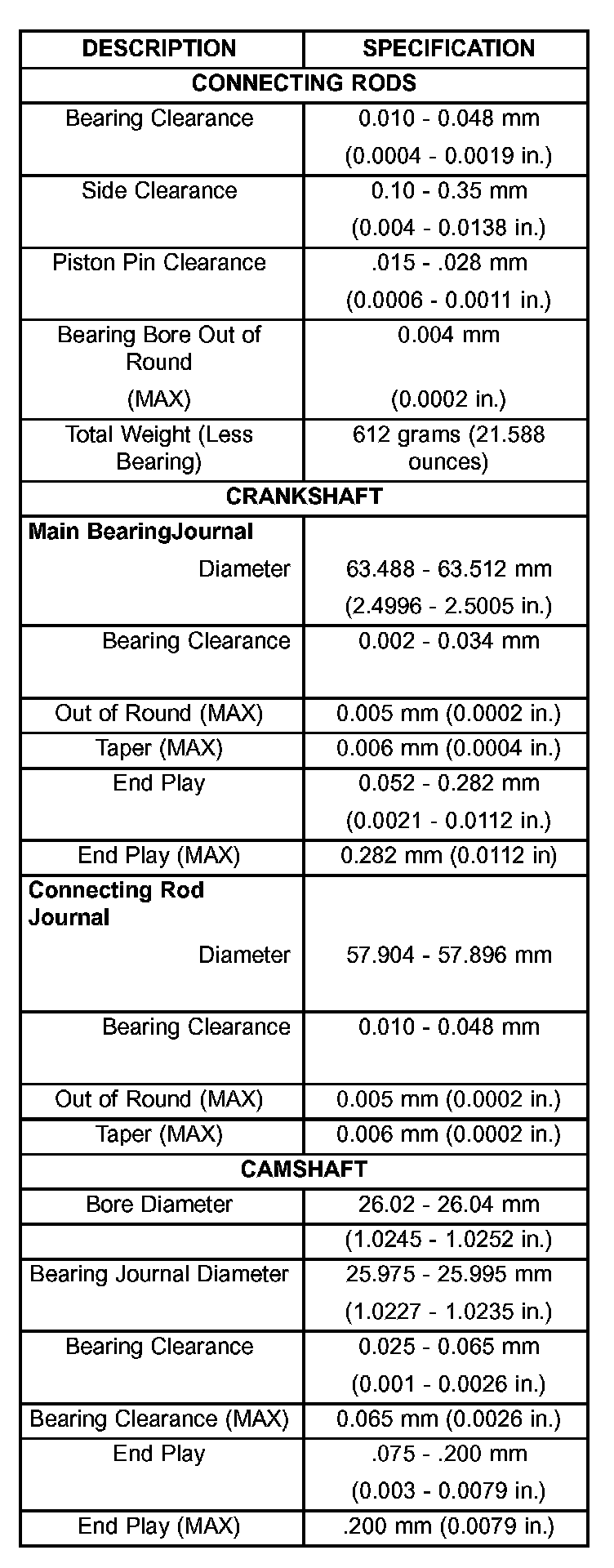

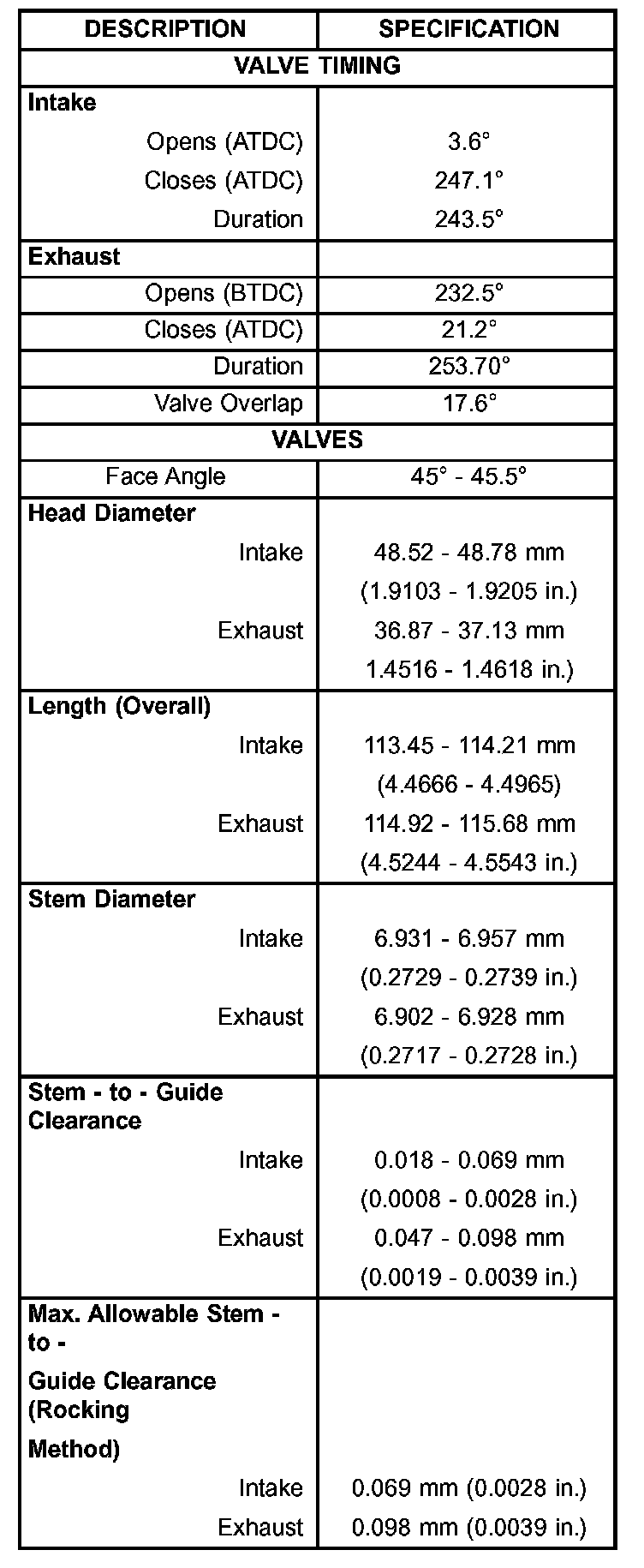

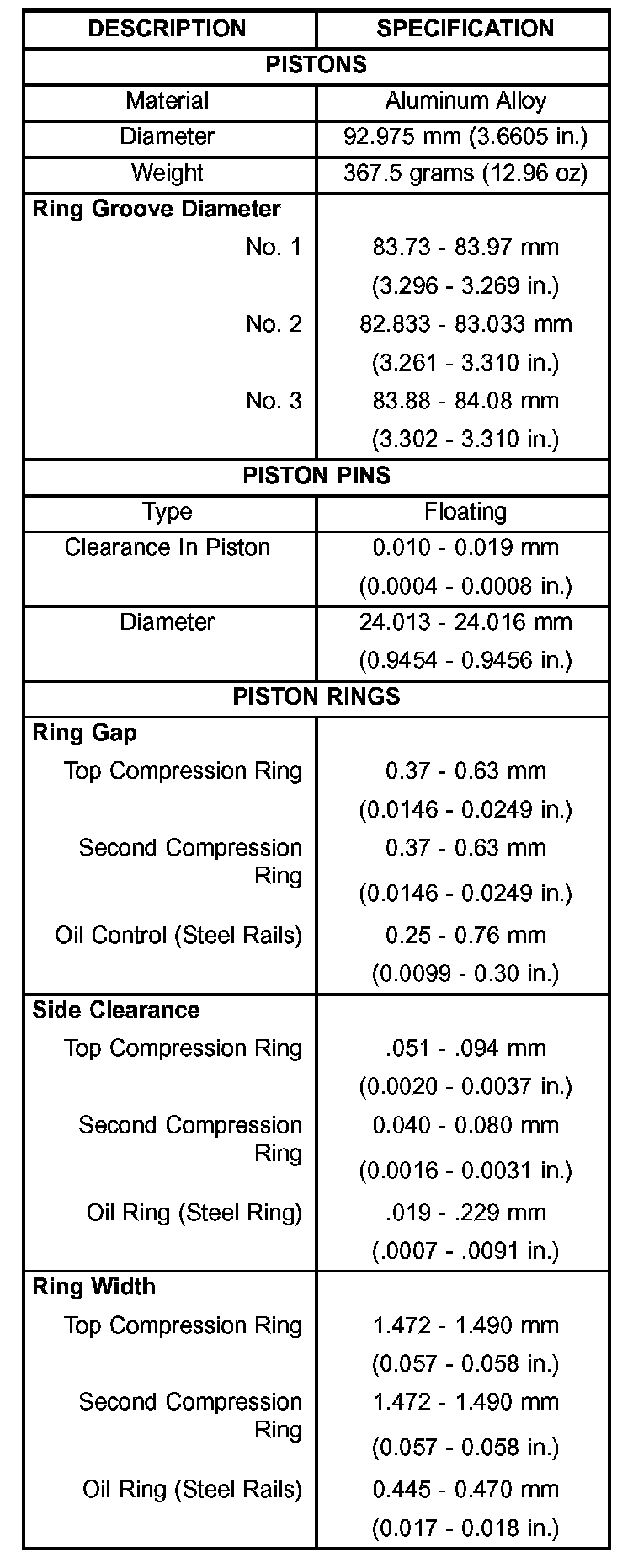

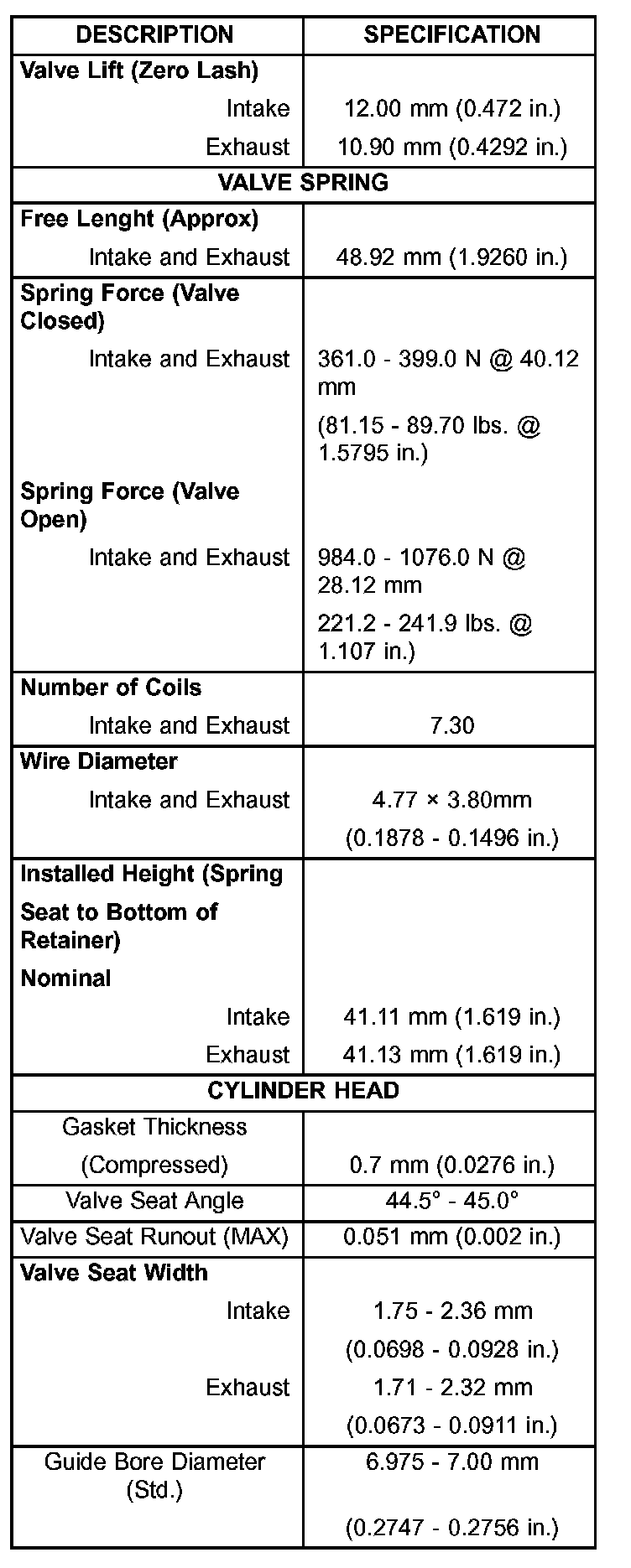

DIMENSIONAL SPECIFICATIONS





Part 1 of 6





Part 2 of 6





Part 3 of 6





Part 4 of 6





Part 5 of 6





Part 5 of 6
