Cruise Control Switch: Service and Repair

REMOVAL

WARNING: BEFORE ATTEMPTING TO DIAGNOSE, REMOVE OR INSTALL ANY AIRBAG SYSTEM OR RELATED STEERING WHEEL AND STEERING COLUMN COMPONENTS YOU MUST FIRST DISCONNECT AND ISOLATE THE NEGATIVE (GROUND) BATTERY CABLE. WAIT 2 MINUTES FOR SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

1. Disconnect and isolate negative battery cable from battery.
2. Remove airbag module. Refer to Restraint Systems.

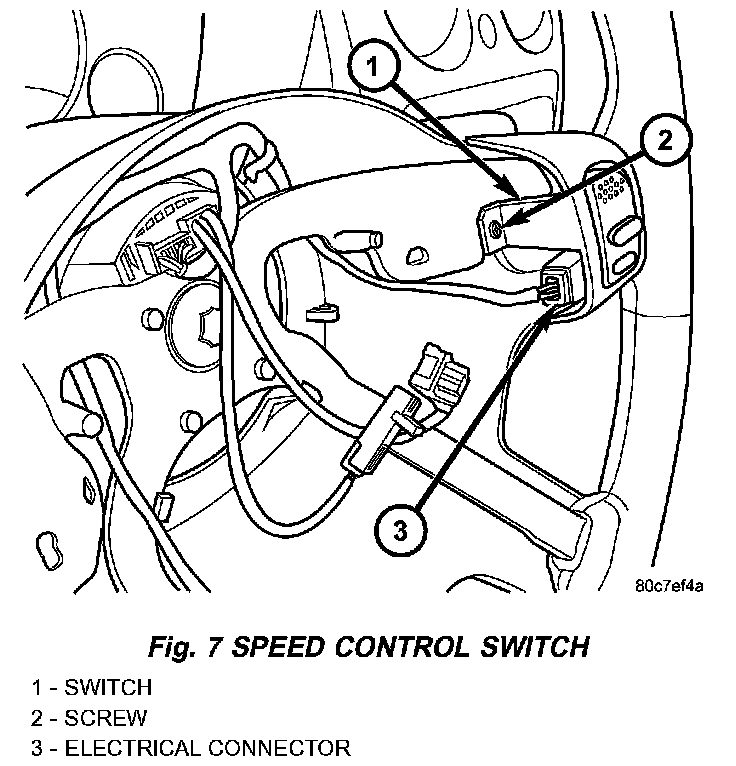

Fig.7 Speed Control Switch:

3. Unplug electrical connector.
4. Remove speed control switch mounting screw and remove switch from steering wheel.

INSTALLATION
1. Position switch to steering wheel.
2. Install switch mounting screw and tighten. Refer to torque specifications.
3. Plug electrical connector into switch.
4. Install airbag module. Refer to Restraint Systems.
5. Connect negative battery cable to battery.
