Window Switch: Removal: Front

  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick, gently pry the switch from the console (Fig 1 ).
  3. Disconnect electrical harness connector.

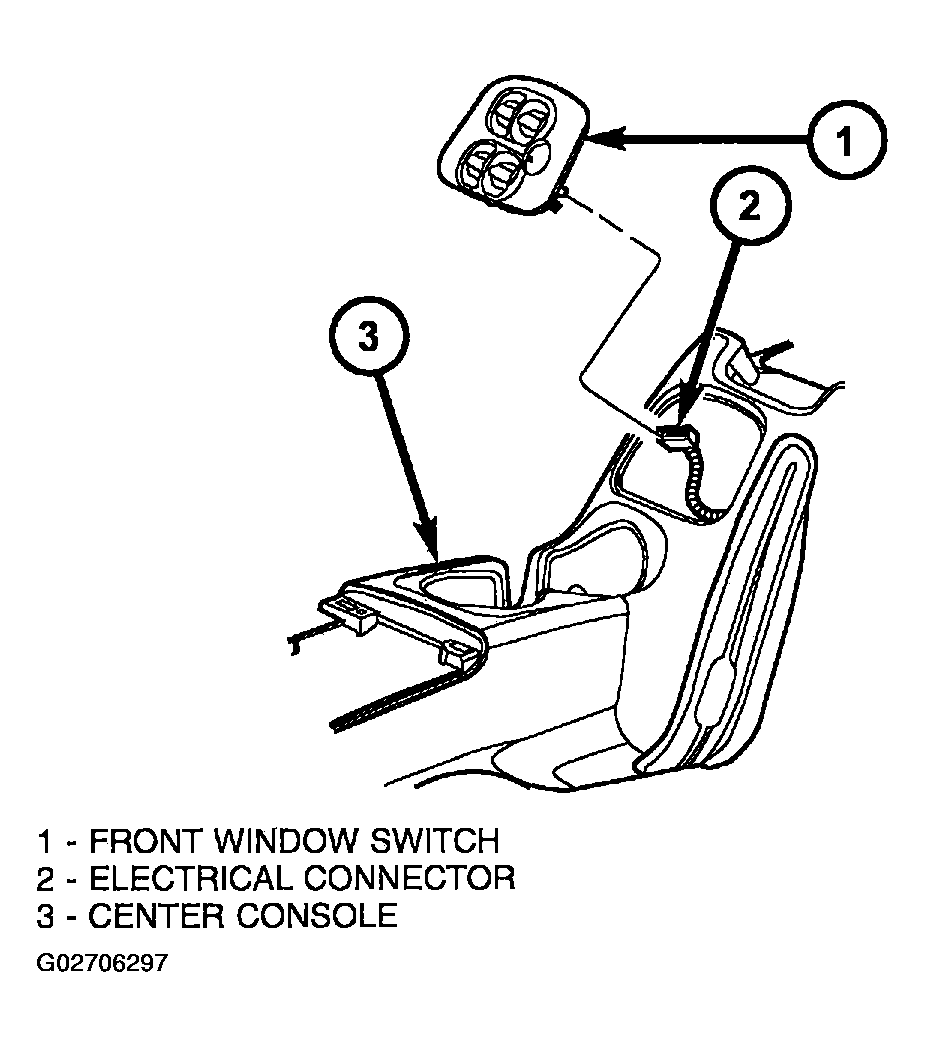

    Fig 1: Identifying Front Window Switch
    G02706297Courtesy of DAIMLERCHRYSLER CORP.
