Pcm Harness Connector End View

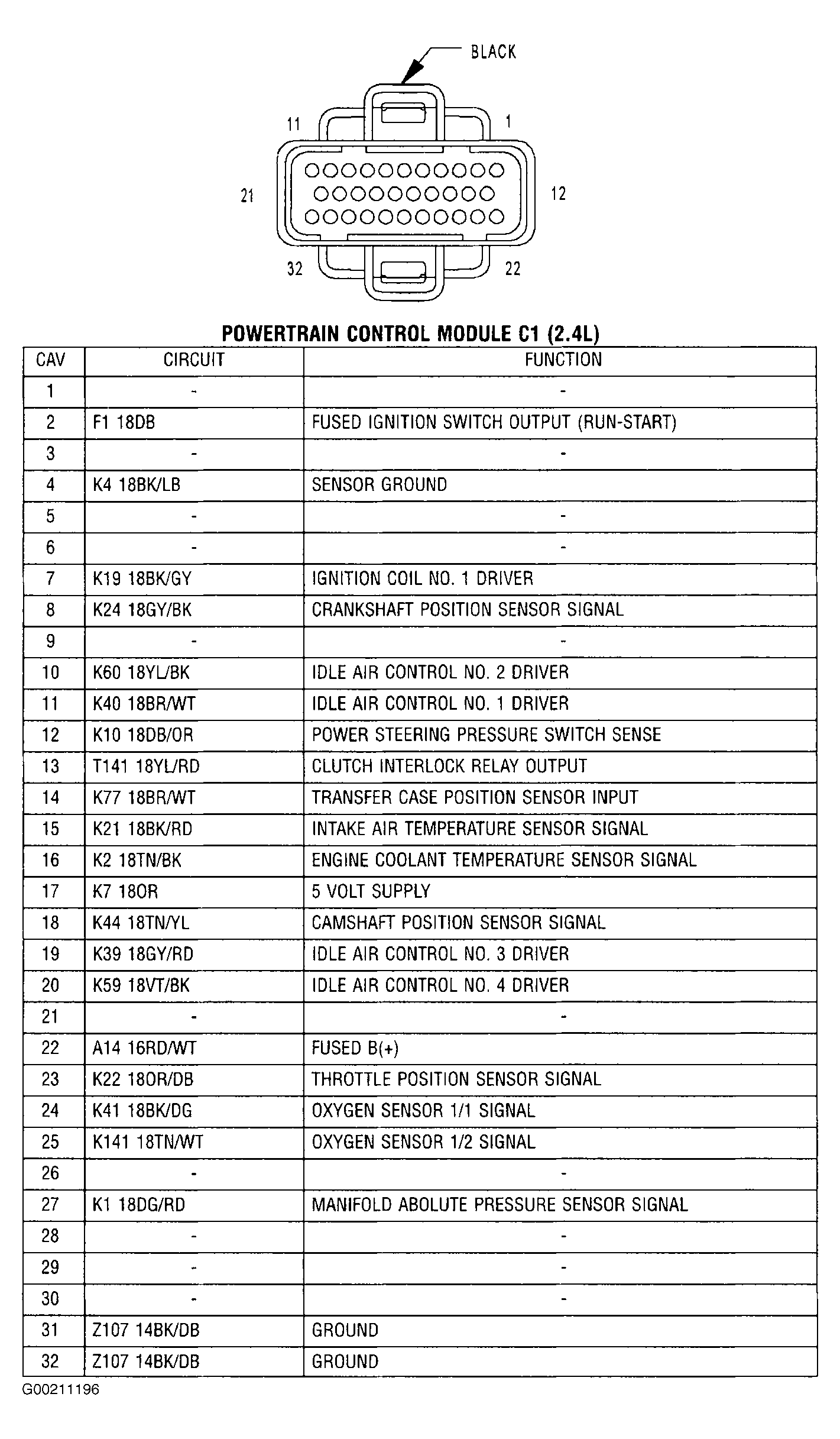

Fig 1: Identifying PCM C1 (2.4L) Harness Connector
G00211196Courtesy of CHRYSLER CORP.

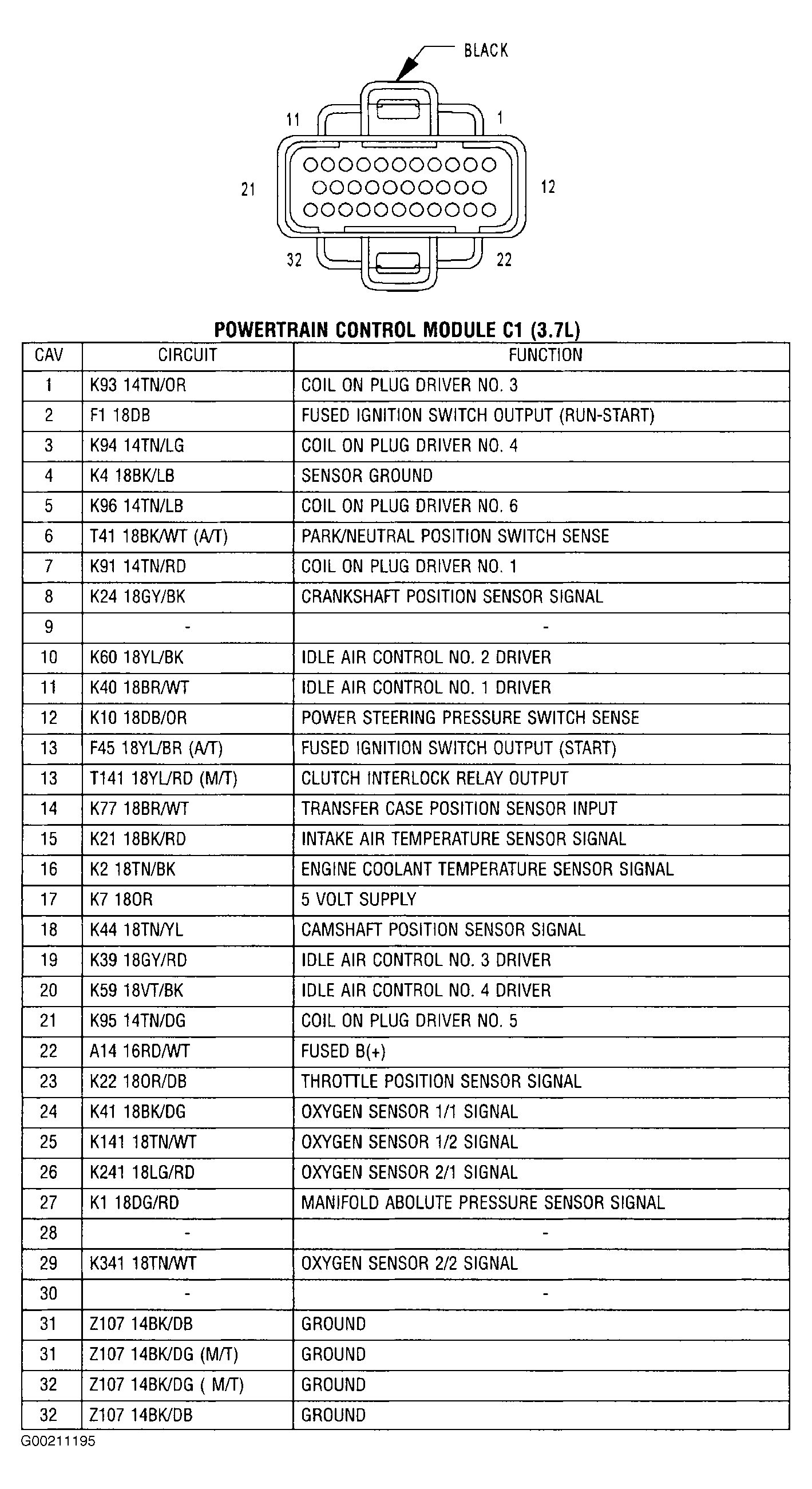

Fig 2: Identifying PCM C1 (3.7L) Harness Connector
G00211195Courtesy of CHRYSLER CORP.
Fig 3: Identifying PCM C2 Harness Connector
G00063936Courtesy of DAIMLERCHRYSLER CORPORATION

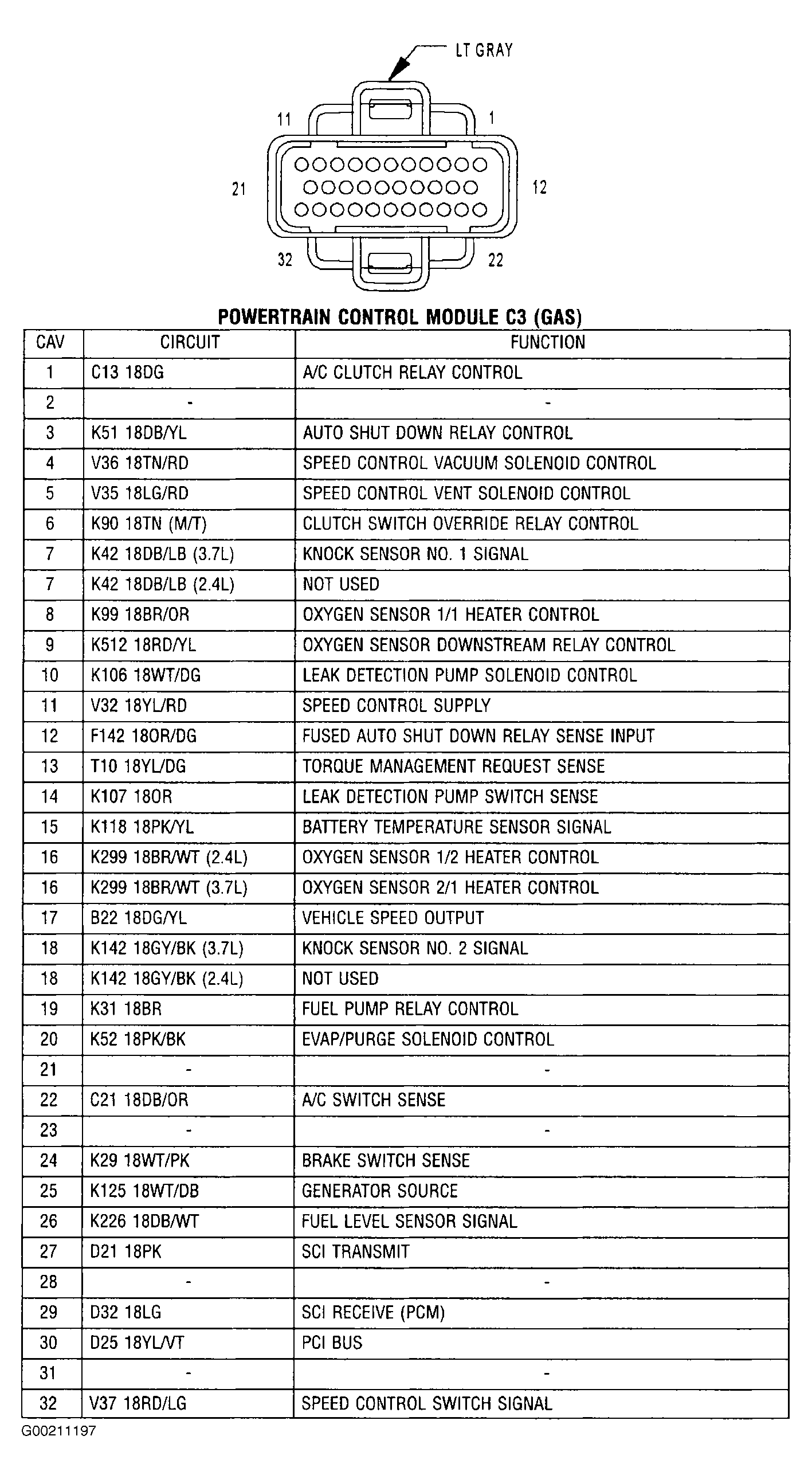

Fig 4: Identifying PCM C3 Harness Connector
G00211197Courtesy of CHRYSLER CORP.
