Connector Identification

NOTE: See Fig 1 thru Fig 9 for connector identification.

Fig 1: Identifying Fuel Pump Module Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

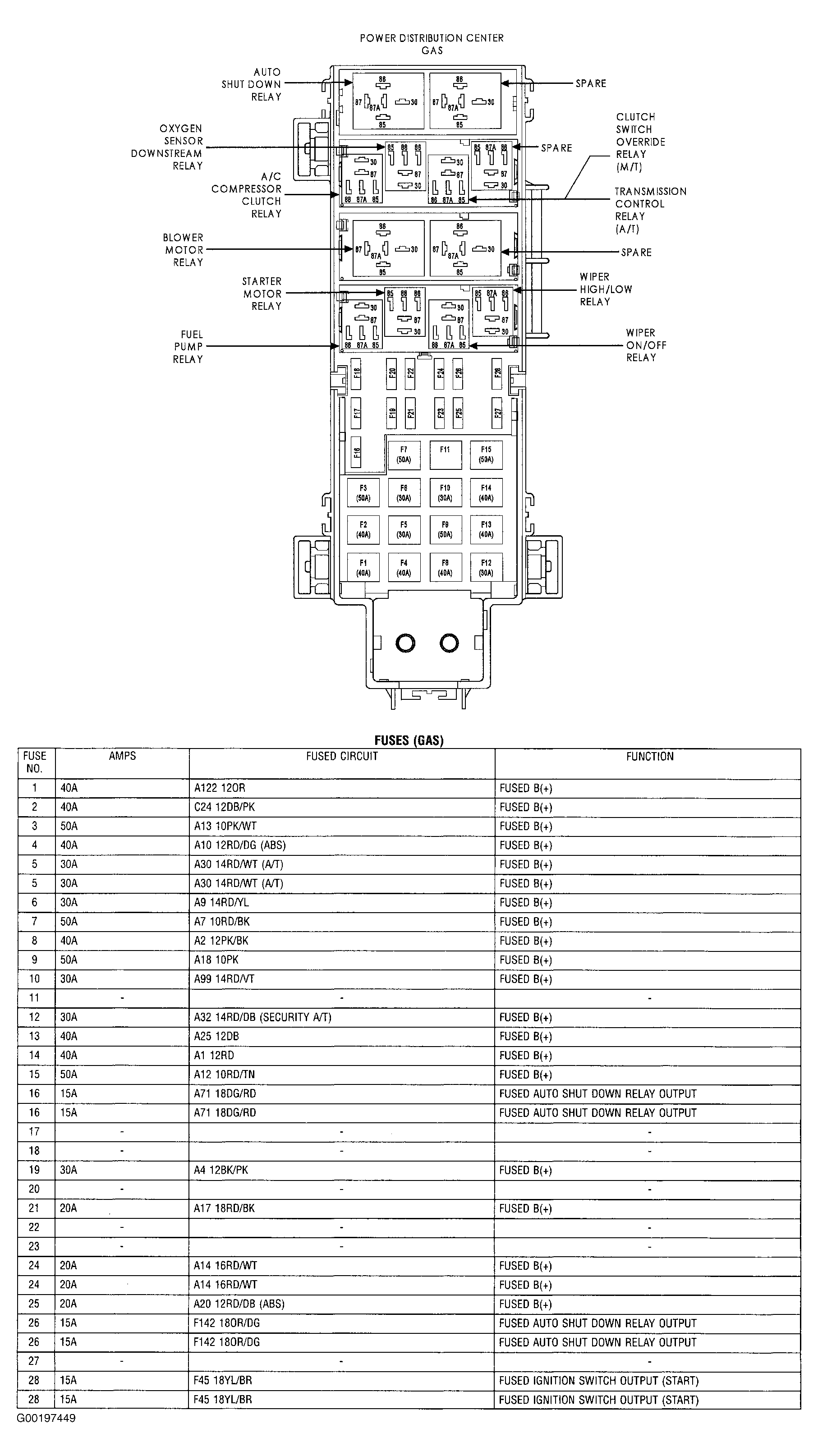

Fig 2: Identifying Power Distribution Center Fuses & Fuse Circuits

Courtesy of CHRYSLER CORP.

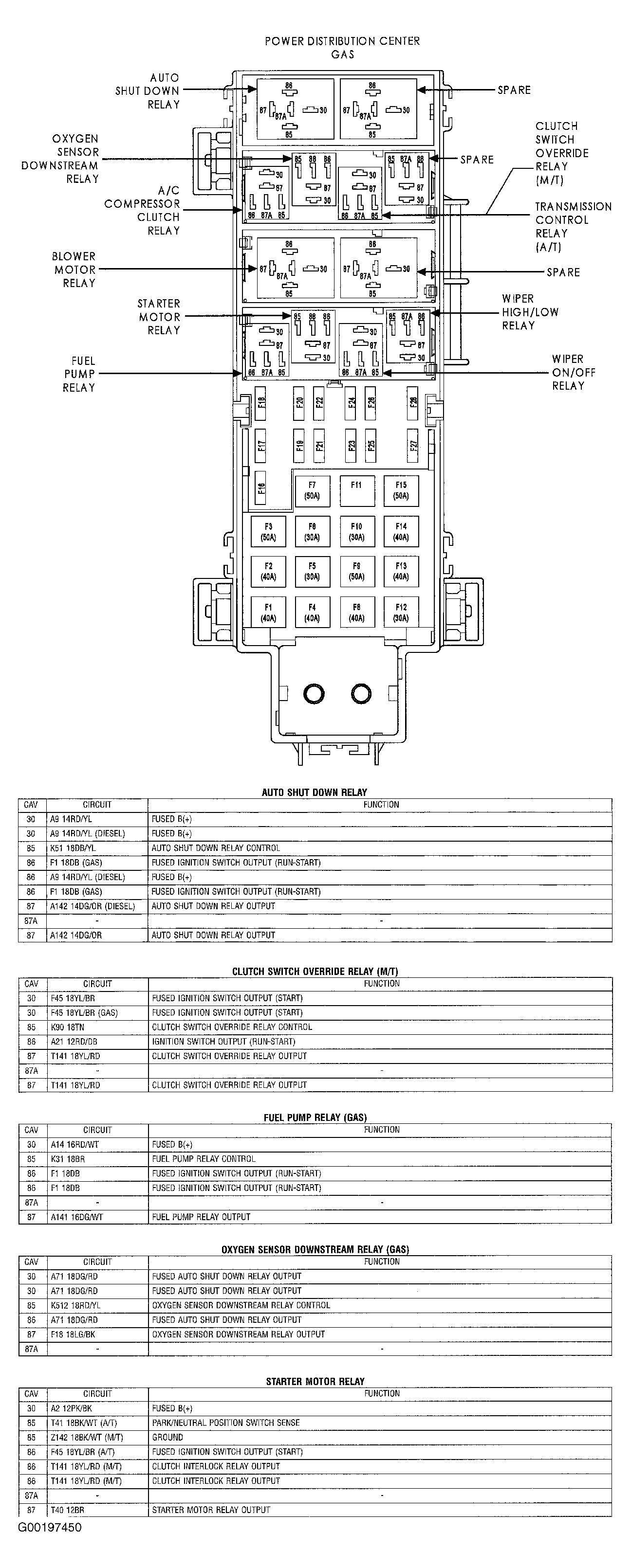

Fig 3: Identifying Power Distribution Center Relay Cavities & Circuits

Courtesy of CHRYSLER CORP.

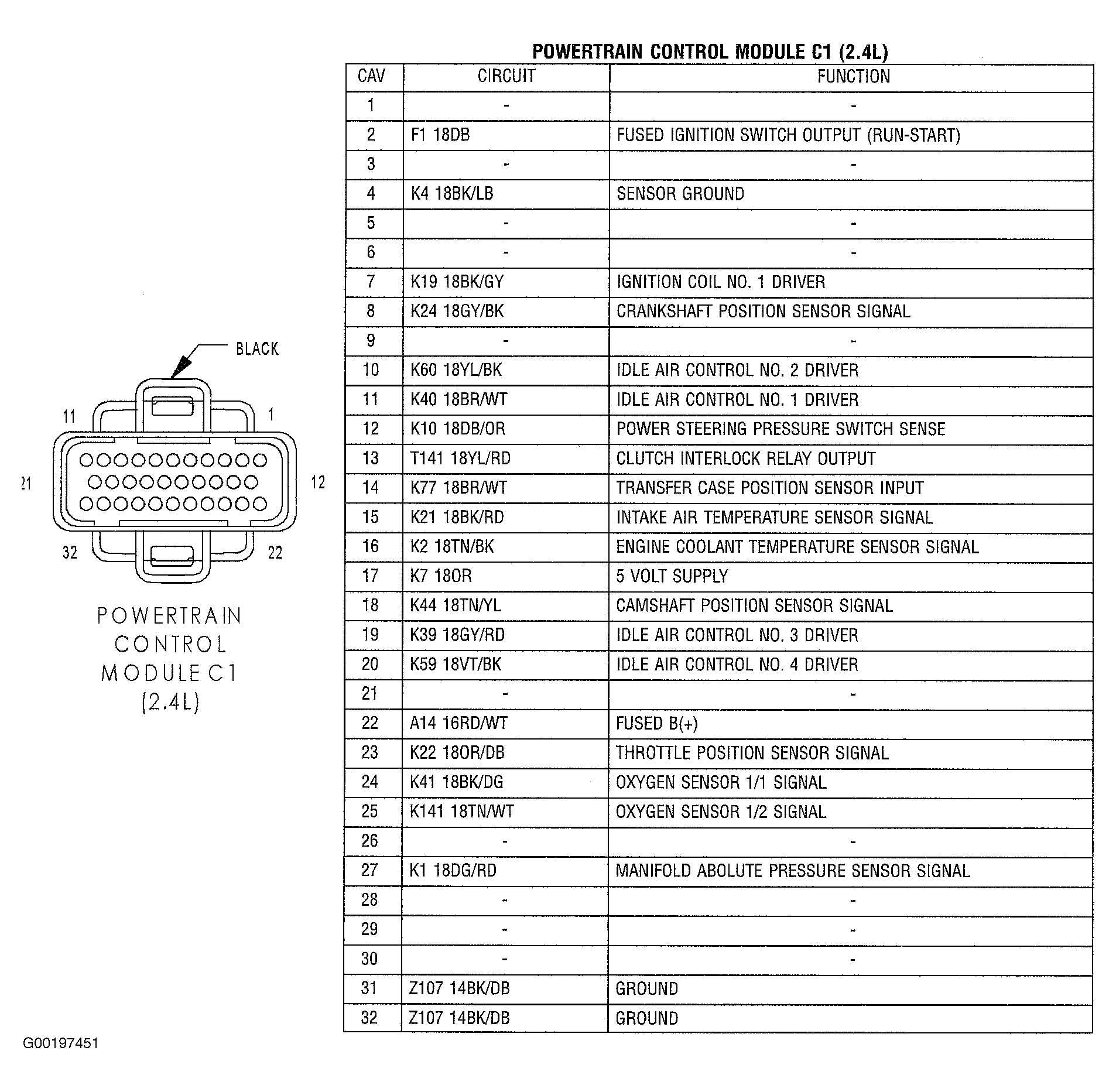

Fig 4: Identifying PCM C1 Harness Connector (2.4L)

Courtesy of CHRYSLER CORP.

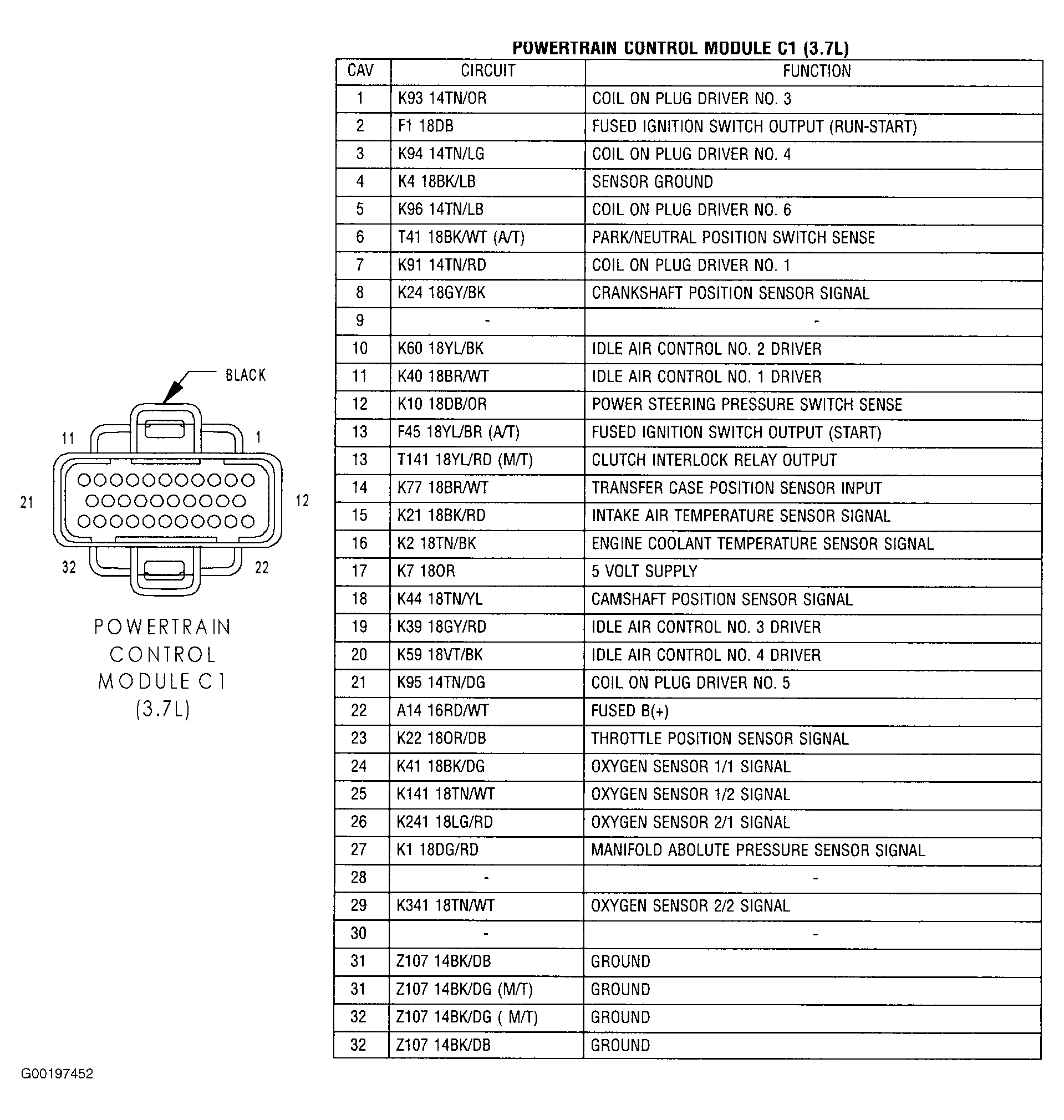

Fig 5: Identifying PCM C1 Harness Connector (3.7L)

Courtesy of CHRYSLER CORP.

Fig 6: Identifying Radiator Fan Motor Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 7: Identifying Radiator Fan Relay Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 8: Identifying Relay Terminals - Type 1 Relay

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 9: Identifying Relay Terminals - Type 2 Relay

Courtesy of DAIMLERCHRYSLER CORPORATION
