Controller Anti-Lock Brake: Removal

WARNING: This page is about a different car, the 2004 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the negative battery cable from the battery.
Pull up on the CAB harness connector release and remove connector.

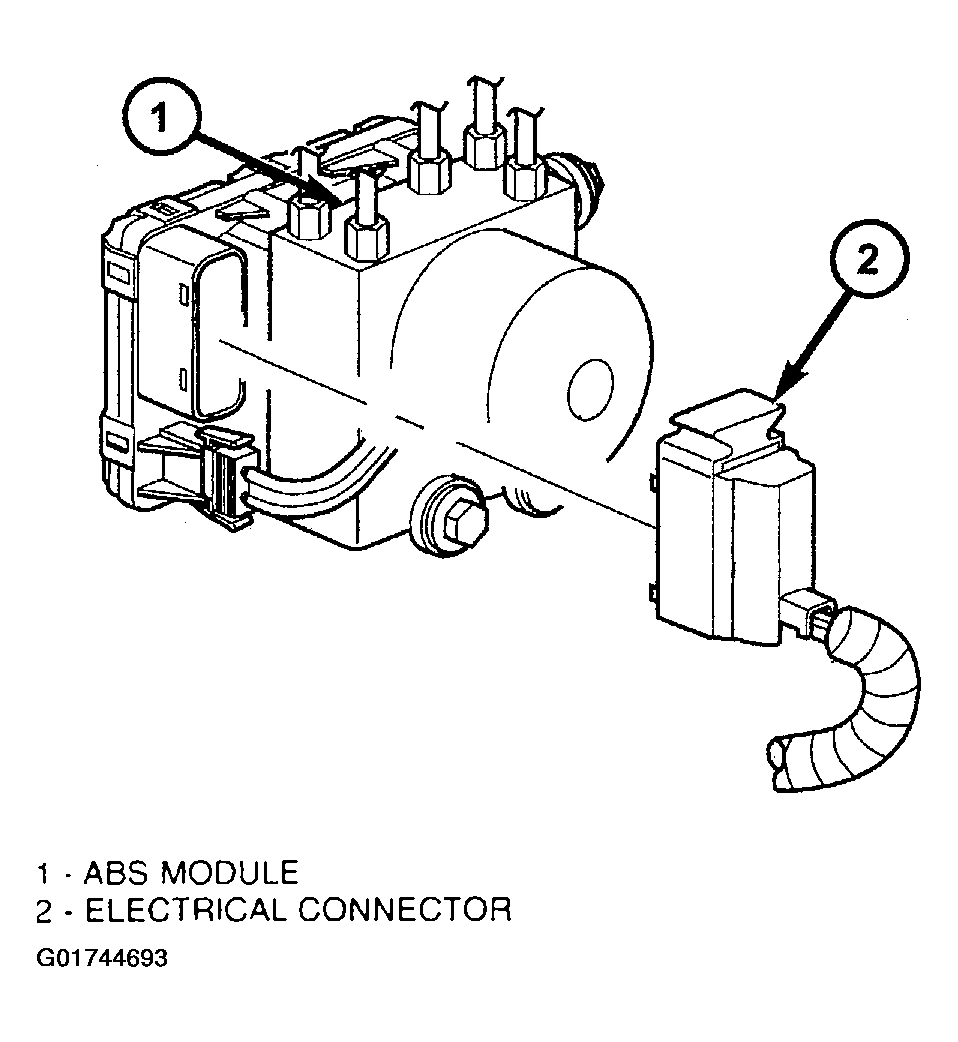

Fig 1: Identifying CAB Harness Connector Release
Courtesy of DAIMLERCHRYSLER CORP.
Remove the pump connector from the CAB.
Remove the CAB mounting bolts.

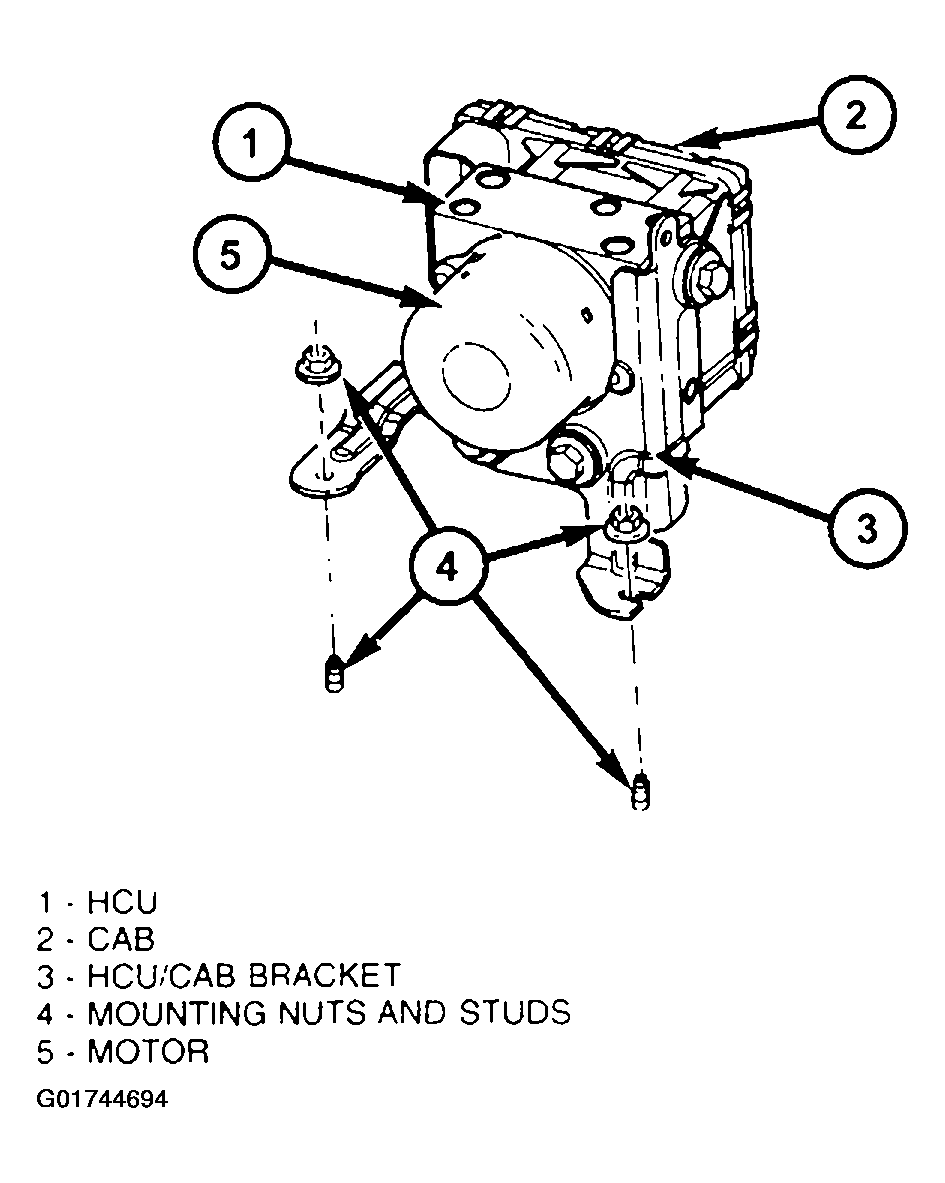

Fig 2: Identifying HCU/CAB Mounting
Courtesy of DAIMLERCHRYSLER CORP.
Remove the CAB from the HCU.

Fig 3: Removing & Installing Controller & HCU
Courtesy of DAIMLERCHRYSLER CORP.
