"No Bus" In VF Display

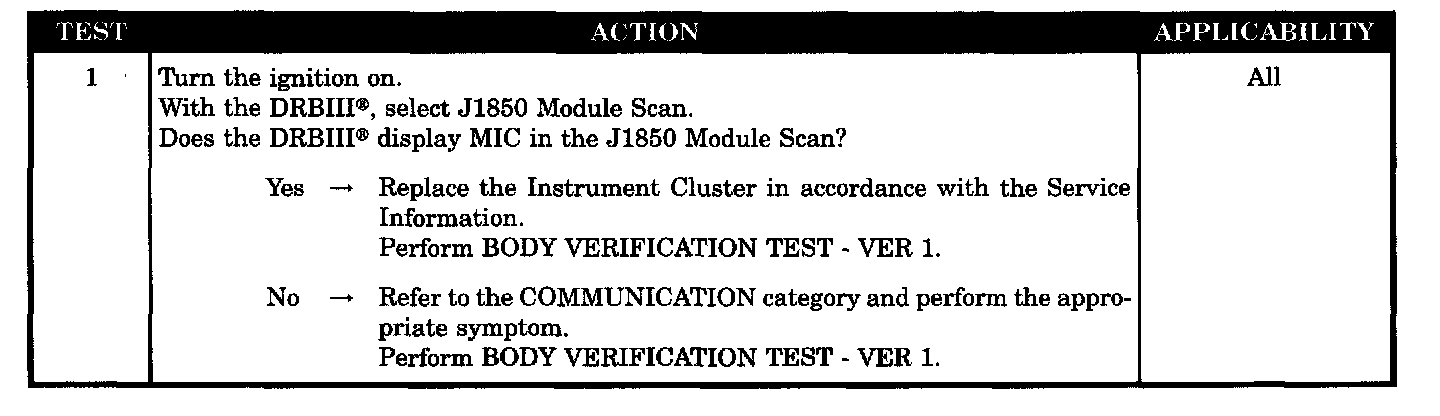

Test 1:
SYMPTOM
"NO BUS" IN VF DISPLAY
-
PCI bus messages not rec'd by MIC
-
Instrument cluster
