"No Fuse" In VF Display

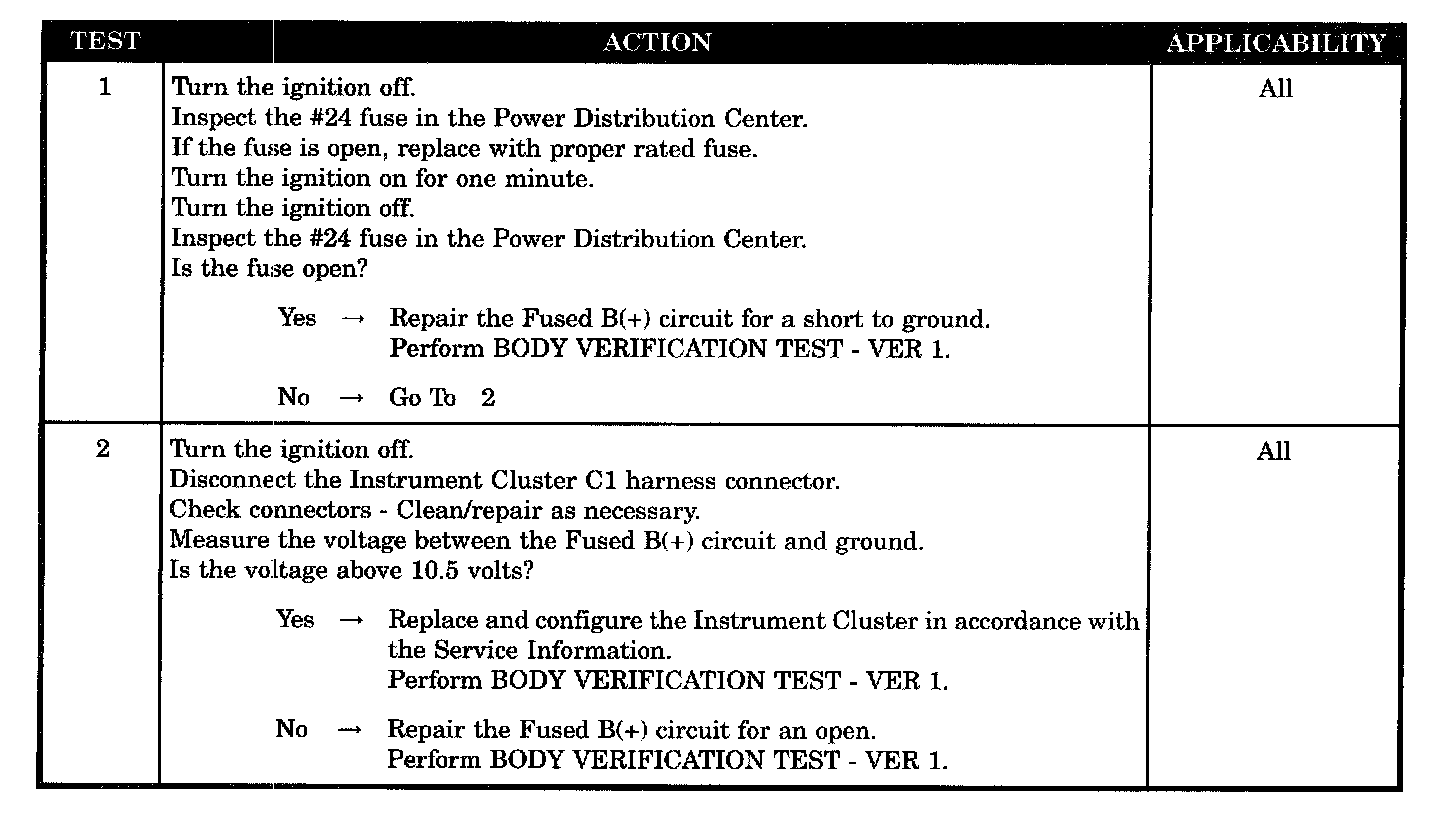

Test 1 - 2:






SYMPTOM
"NO FUSE" IN VF DISPLAY

POSSIBLE CAUSES
- Fused B(+) circuit short to ground
- Fused B(+) circuit open
- Instrument cluster
