Any PCI BUS Indicator Inoperative

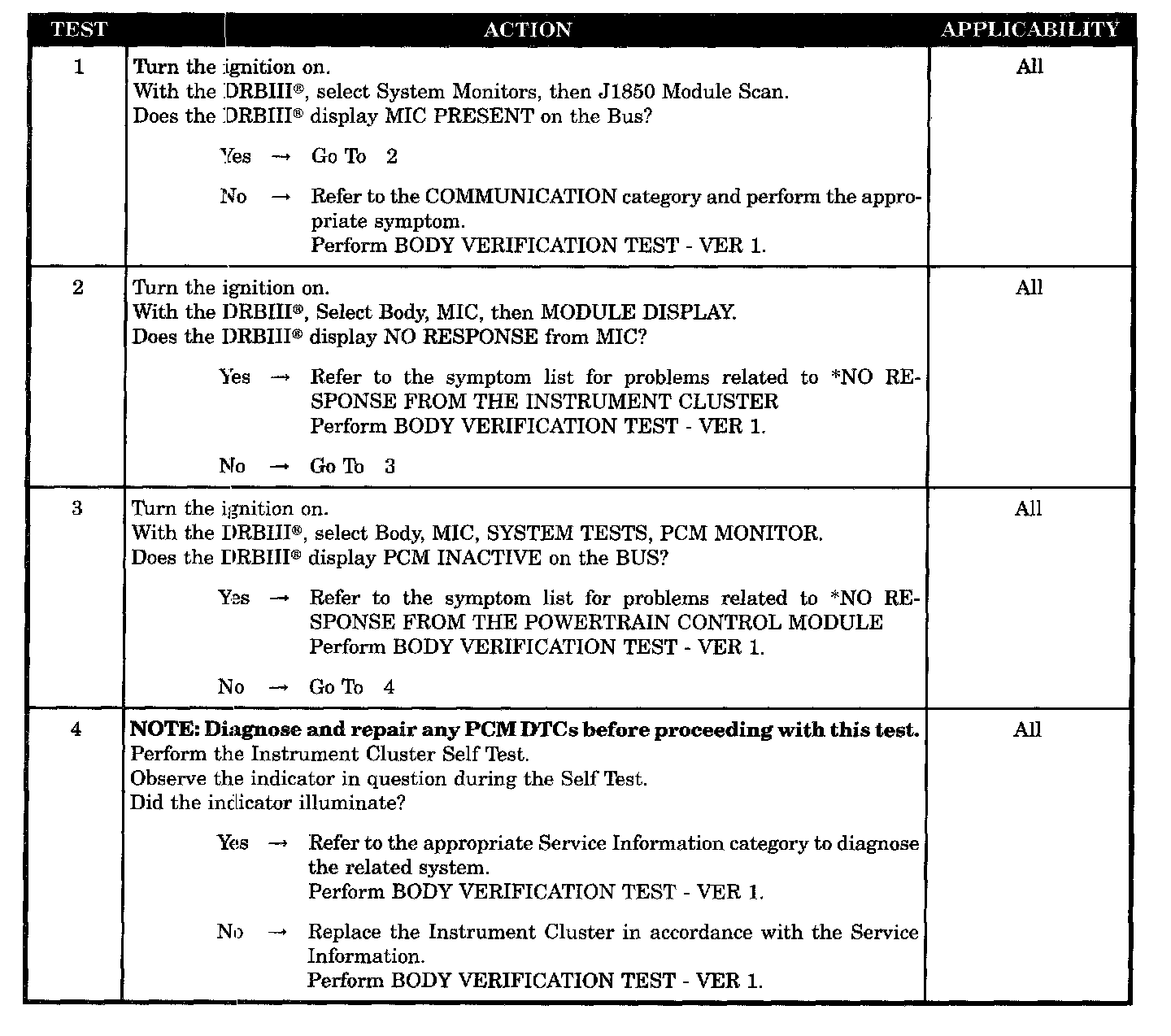

Test 1 - 4:






SYMPTOM
ANY PCI BUS INDICATOR INOPERATIVE

POSSIBLE CAUSES
- No response - PCI bus
- No response - instrument cluster
- No response - Powertrain Control Module
- Inoperative indicator
- Instrument cluster
