Brake Warning Indicator Always On

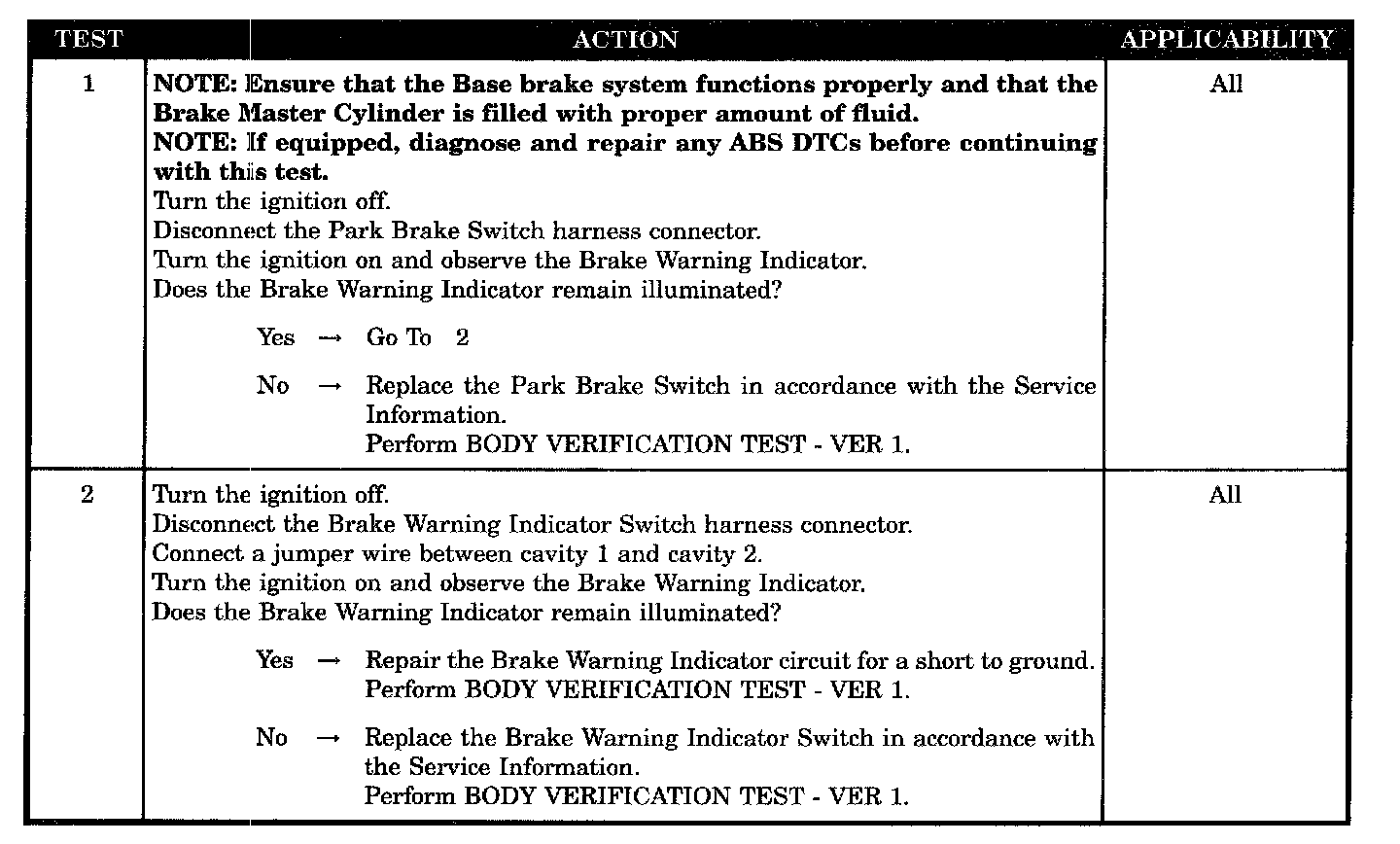

Test 1 - 2:






SYMPTOM
BRAKE WARNING INDICATOR ALWAYS ON

POSSIBLE CAUSES
- Brake warning indicator circuit short to ground
- Brake warning indicator switch
- Park brake switch
