Brake Warning Indicator Inoperative

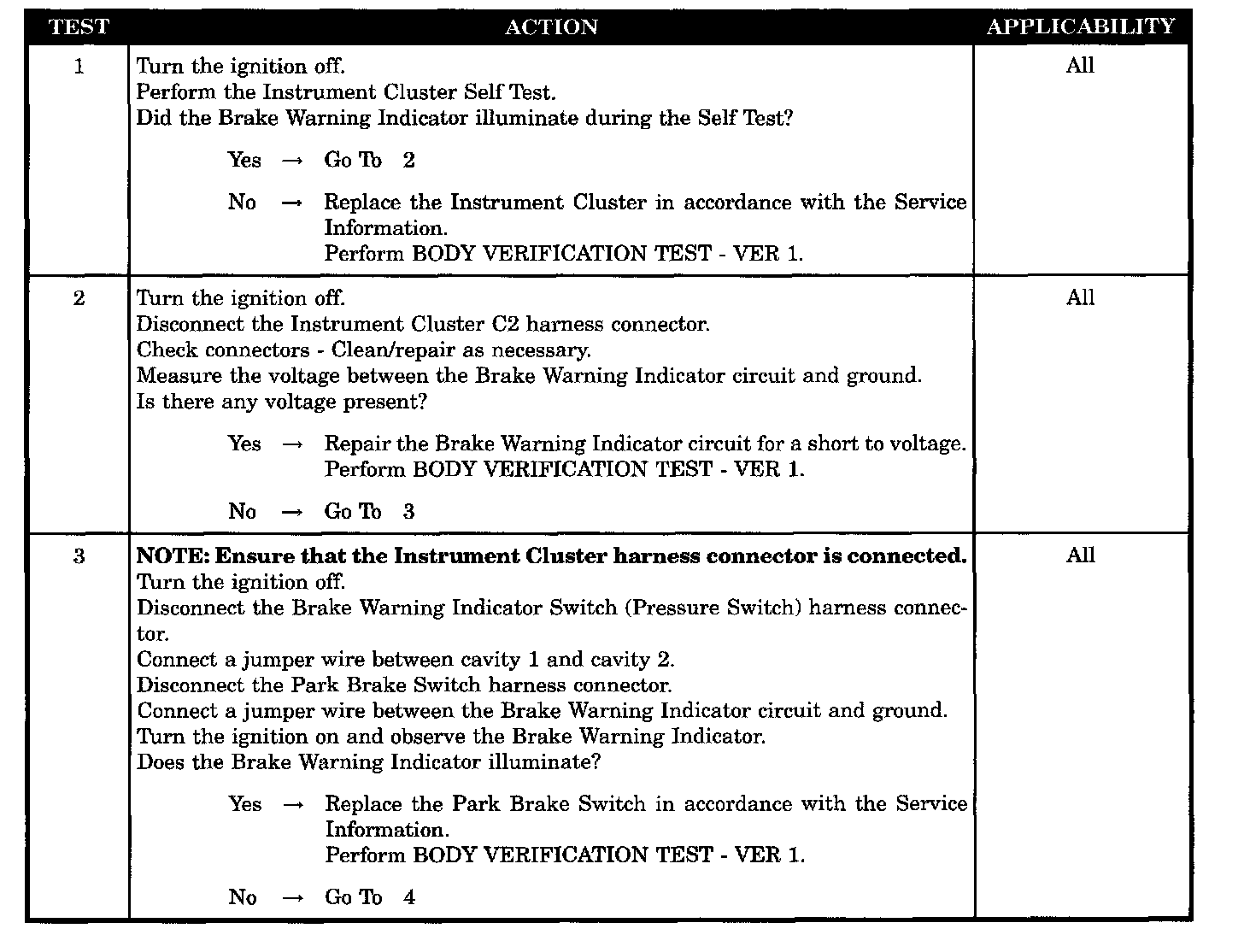

Test 1 - 3:

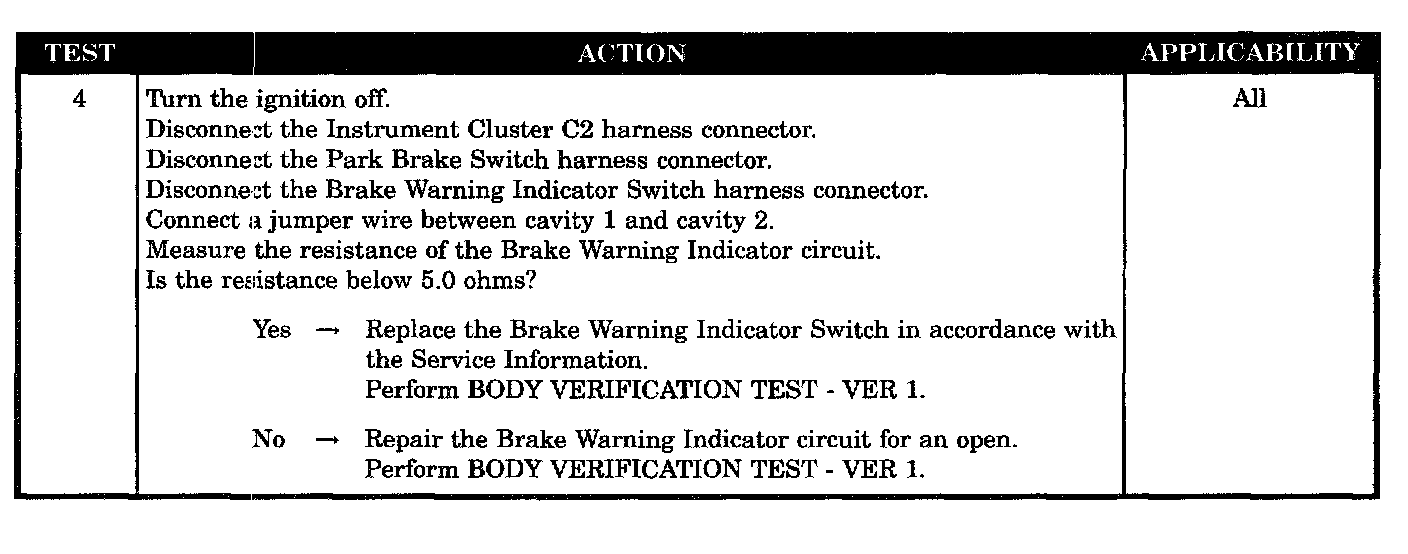

Test 4:






SYMPTOM
BRAKE WARNING INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Brake warning indicator circuit short to voltage
- Brake warning indicator circuit open
- Brake warning indicator switch
- Park brake switch
- instrument cluster
